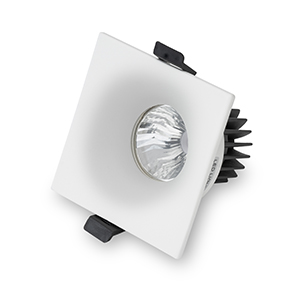

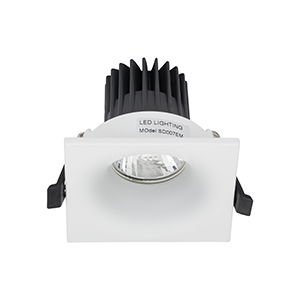

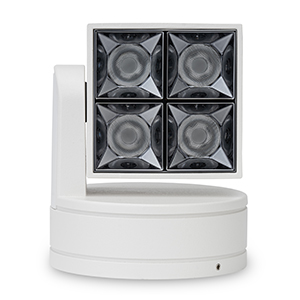

Cardan adjustable spotlight collection offers multiple options to chose from wattages ranging between 12W – 40W in all standard symmetric beam options and as made available across 3 varied size options to adopt to site requirements within the standard color spectrum.
The complete range is IP20 suitable for indoor applications as offered. CCT of 5000K and 6000K are also available on request.
Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.
| Body | Die Cast Aluminium |
| LED Type | COB |
| Colour Deviation | <2 SDCM |
| Colour Rendering Index | +90 |
| Lumen Maintenance | L90 / B10 50000 hours |
| Driver | Integral |
| Dimmability | DALI (on request) |
| IP Rating | IP 20 |
| Protection Class | Class II |
| Light Distribution | Watt | Lumen C | Colour Temp | Finishes |
| 15 deg (Spot (S)) | 12 | 1020 | 2700 K | White |
| 24 deg (Medium (M)) | 15 | 1275 | 3000 K | White |
| 38 deg (Medium (M)) | 20 | 1700 | 4000 K | |
| 60 deg Flood (F)) | 30 | 2550 | ||
| 40 | 3400 |
