$100.00

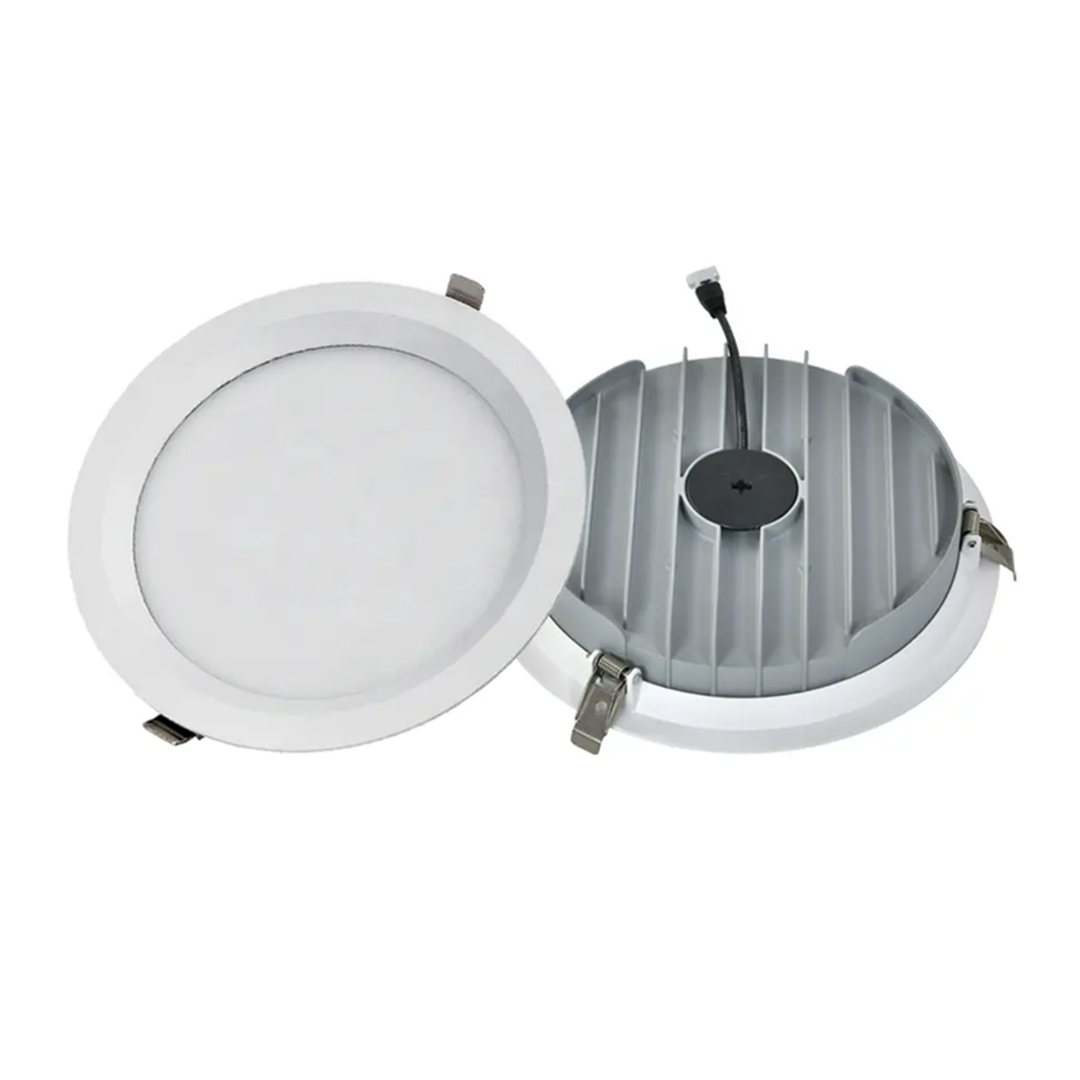

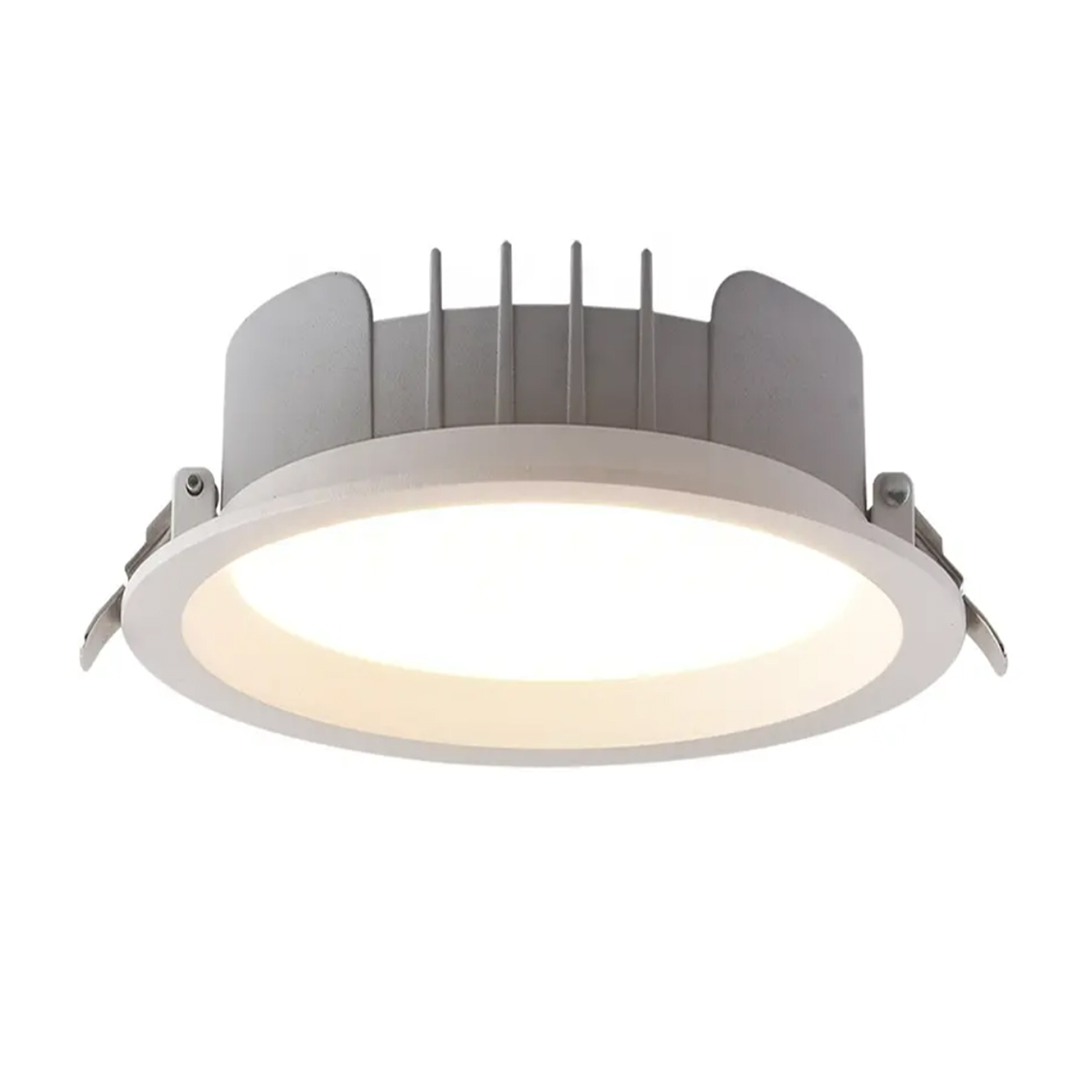

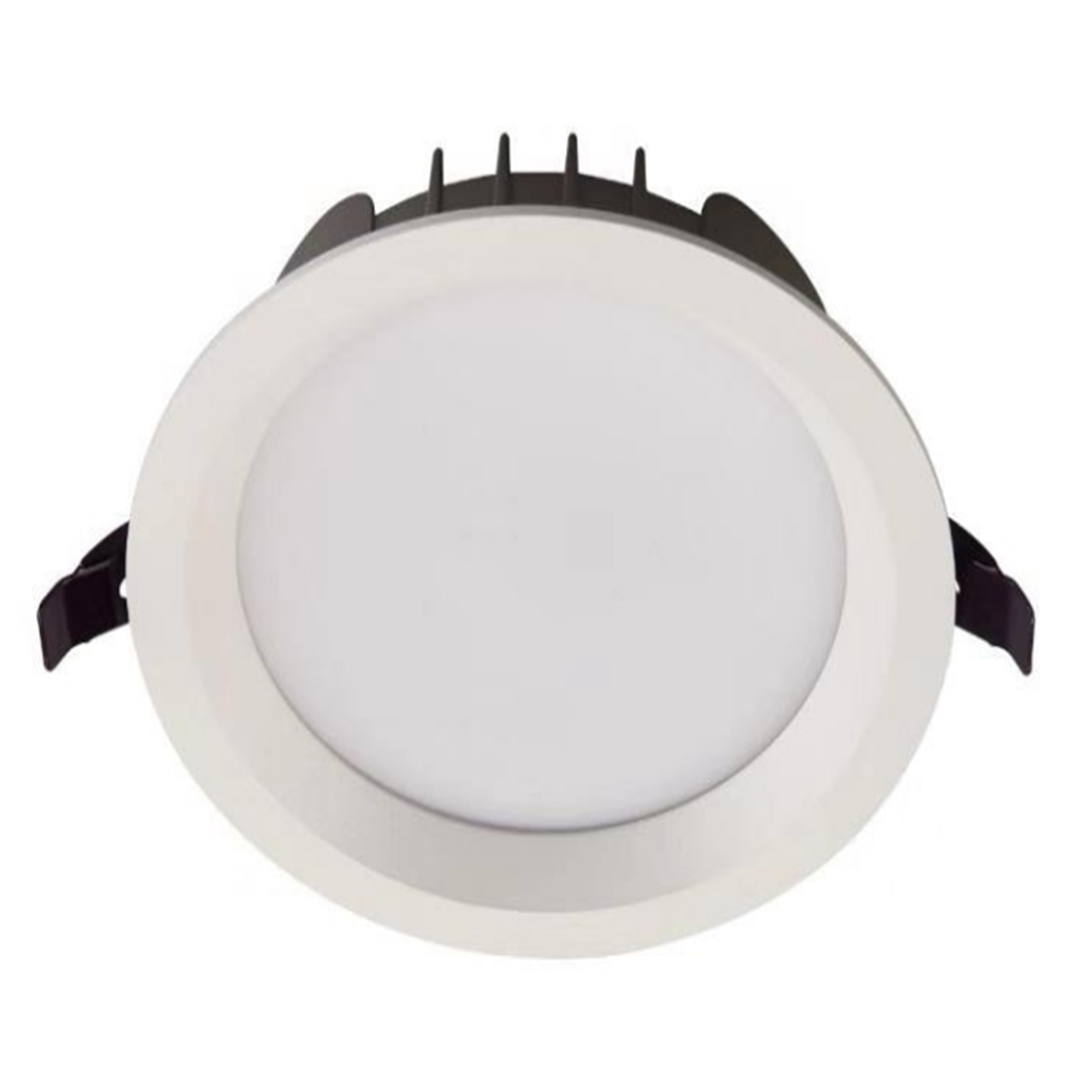

Alume downlight collection offers multiple options to choose from wattages ranging between 8W – 40W in all standard symmetric beam options and as made available across 7 varied size options to adopt to site requirements within the standard color spectrum. Special IP44 versions can also be offered on request. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.
| IP Rate | IP20 , IP44 |
| Beam Angle | 110° |
| CRI | >80 , >90 |
| LED | SMD |
| LED Driver | Lifud Eaglerise Aidimming Other customized brands |
| Input Voltage | AC220V-240V 50-60Hz |
| Finish | White/ Black |
| CODE | POWER (w) | LUMEN OUTPUT (±5%, lm) | DIMENSION (mm) | CUT OUT (mm) | BEAM ANGLE | CCT | FINISH |
| AE-RD01001-8 | 8W | 640 | Φ85*36 | Φ75 | 110° | 2700K 3000K 4000K 5000K 6000K | |
| AE-RD01001-12 | 12W | 960 | Φ100*36 | Φ89 | |||
| AE-RD01001-15 | 15W | 1200 | Φ110*36 | Φ100 | |||
| AE-RD01001-20 | 20W | 1600 | Φ140*38 | Φ125 | |||
| AE-RD01001-24 | 24W | 1920 | Φ155*38 | Φ140 | |||
| AE-RD01001-30 | 30W | 2400 | Φ165*38 | Φ150 | |||
| AE-RD01001-40 | 40W | 3200 | Φ215*41 | Φ200 |
| Wattage | 12, 15, 20, 24, 30, 40, 8 |
|---|---|
| Color Temperature | 2700, 3000, 4000, 5000, 6000 |
| Beam Angle | 110 |
| IP RATE | IP20, IP44 |
| Product Code | AE-RD01001-8, AE-RD01001-12, AE-RD01001-15, AE-RD01001-20, AE-RD01001-24, AE-RD01001-30, AE-RD01001-40 |
