$100.00

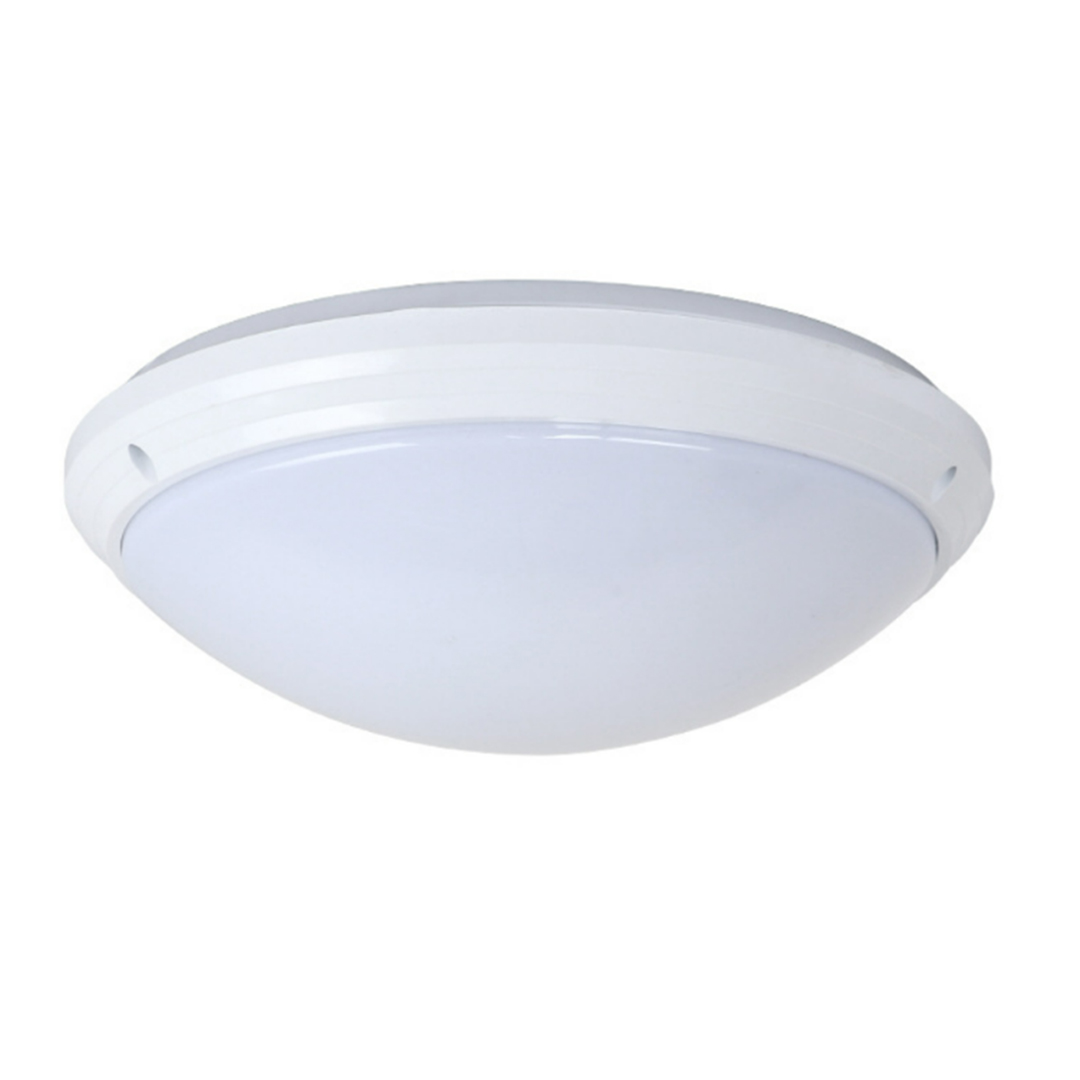

Cilico Surface mounted Damp-Proof collection offers multiple options to choose from wattages ranging between 8W – 36W and as made available in 2 varied size options to adopt to site requirements within the standard color spectrum. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.
| IP Rate | IP65 |
| Beam Angle | 120° |
| CRI | >80 |
| LED | SMD |
| LED Driver | Customized |
| Driver PF | >0.5 |
| Material | ABS+PC |
| Finish | White |
| CODE | POWER (w) | LUMEN OUTPUT (±5%, lm) | DIMENSION (mm) | CUT OUT (mm) | BEAM ANGLE | CCT | FINISH |
|---|---|---|---|---|---|---|---|
| AE-DPR13002-8 | 8 | 560 | Φ 270x90 | Φ / | 120° | 3000K 4000K 6000K | White |
| AE-DPR13002-12 | 12 | 840 | Φ 270x90 | Φ / | 120° | White | |
| AE-DPR13002-15 | 15 | 1050 | Φ 330x95 | Φ / | 120° | White | |
| AE-DPR13002-18 | 18 | 1260 | Φ 330x95 | Φ / | 120° | White | |
| AE-DPR13002-24 | 24 | 1680 | Φ 330x95 | Φ / | 120° | White | |
| AE-DPR13002-36 | 36 | 2520 | Φ 330x95 | Φ / | 120° | White |
| Wattage | 12, 18, 15, 24, 36, 8 |
|---|---|
| Color Temperature | 3000, 4000, 6000 |
| Beam Angle | 120 |
| Product Code | AE-DPR13002-8, AE-DPR13002-12, AE-DPR13002-15, AE-DPR13002-18, AE-DPR13002-24, AE-DPR13002-36 |
