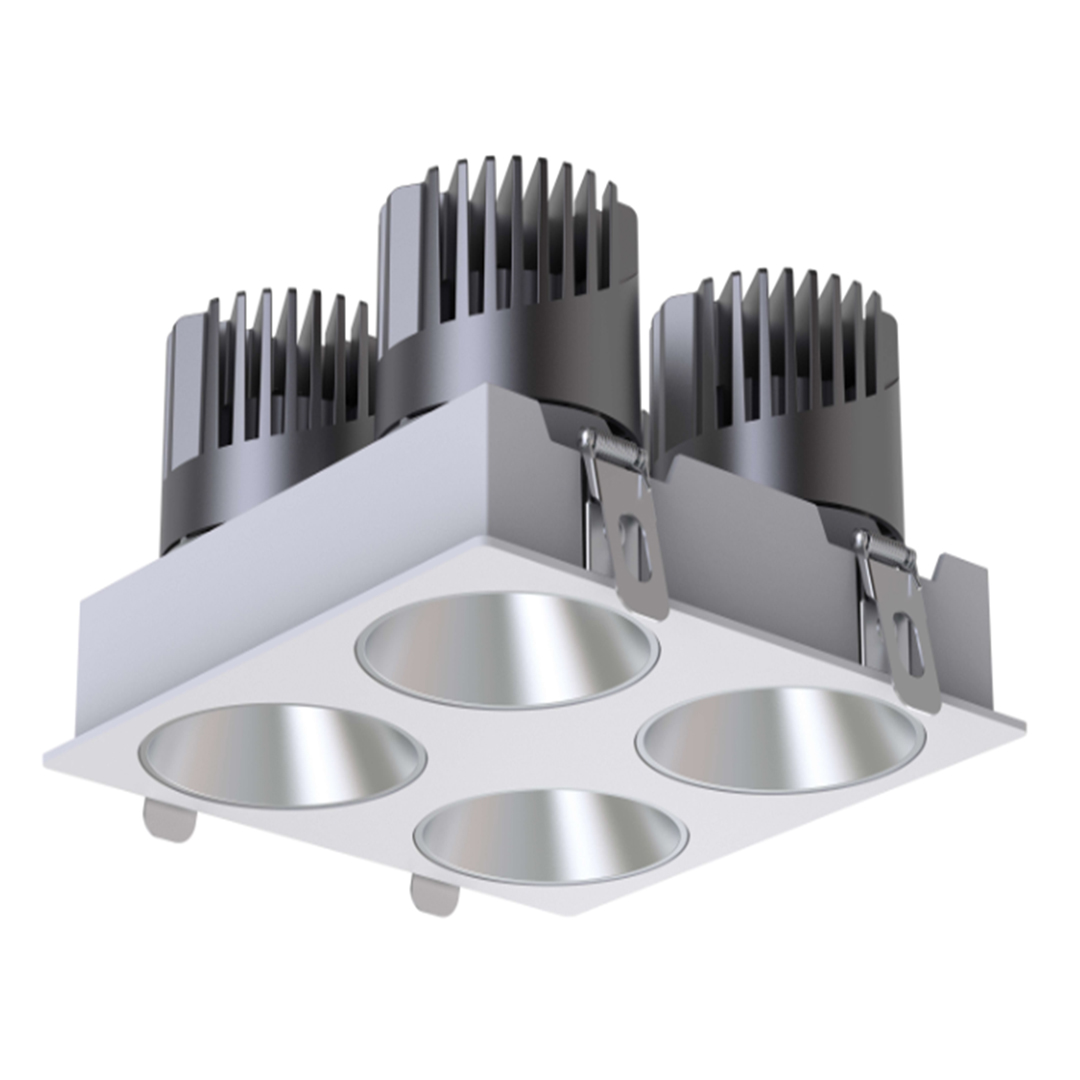

Colecao(Four)

Colecao(Four)

$100.00

Colecao (Four) adjustable downlight collection offers multiple options to choose from wattages ranging between 28W – 80W in all standard symmetric beam options and as made available across 3 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle15°, 24°, 38°
CRI>80 , >90
LEDCOB
LED DriverLifud Eaglerise Aidimming Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishBlack, White, Matt white, Matte black, Matt silver, Glossy Black, Glossy Silver, Champagne gold, Rose golden



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-SS05015-4x7282240Φ 170x170x79Φ 165x16515° / 24° / 38°2700K
3000K
4000K
5000K
6000K
Black,White,Mattwhite,Matteblack,Mattsilver,GlossyBlack,GlossySilver,Champagnegold,Rosegolden
AE-SS05015-4x12483840Φ 170x170x90Φ 165x16515° / 24° / 38°
Black,White,Mattwhite,Matteblack,Mattsilver,GlossyBlack,GlossySilver,Champagnegold,Rosegolden
AE-SS05015-4x20806400Φ 170x170x100Φ 165x16515° / 24° / 38°
Black,White,Mattwhite,Matteblack,Mattsilver,GlossyBlack,GlossySilver,Champagnegold,Rosegolden
Wattage

28, 48, 80
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

15, 24, 38
Product Code

AE-SS05015-4×7, AE-SS05015-4×12, AE-SS05015-4×20
