Eclat

$100.00

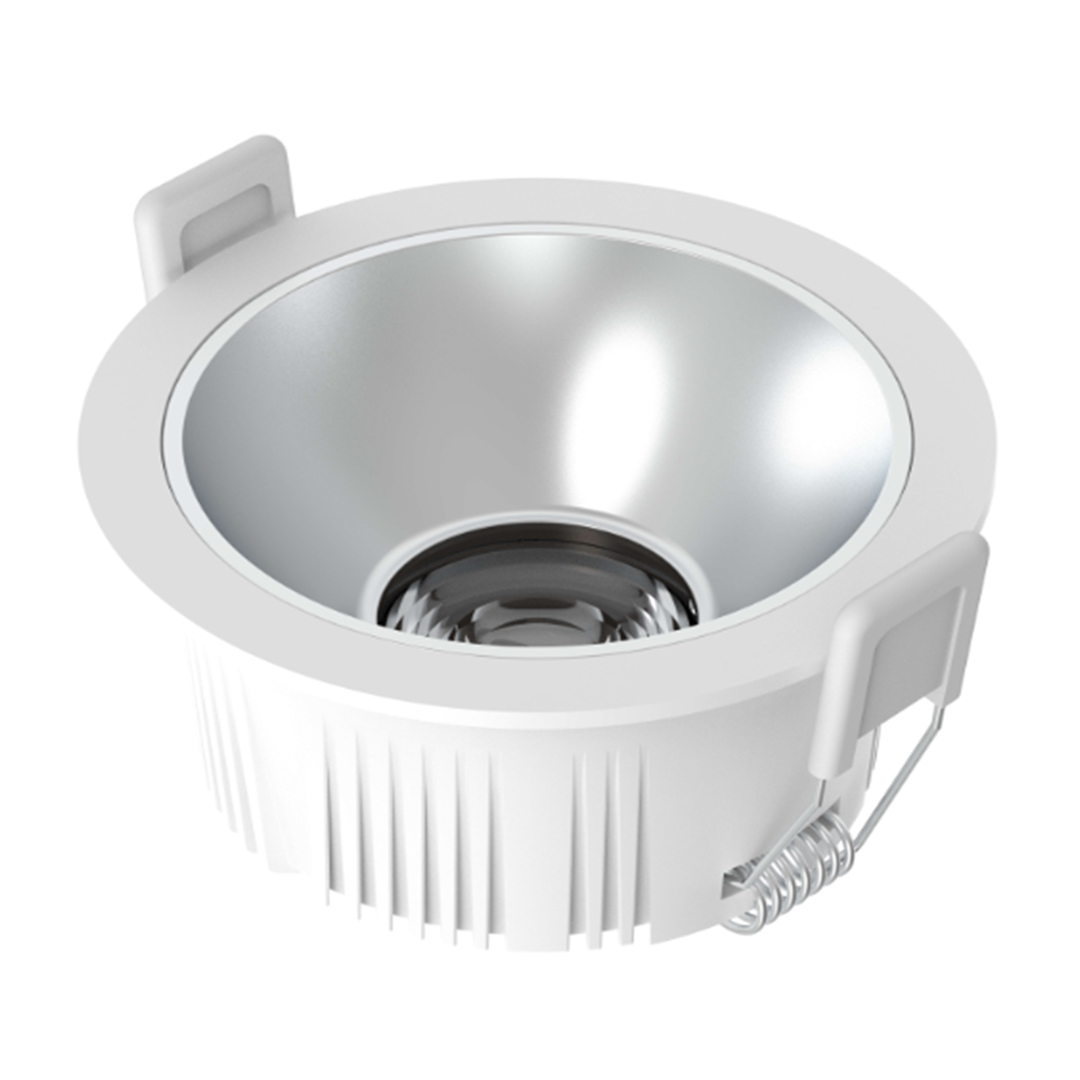

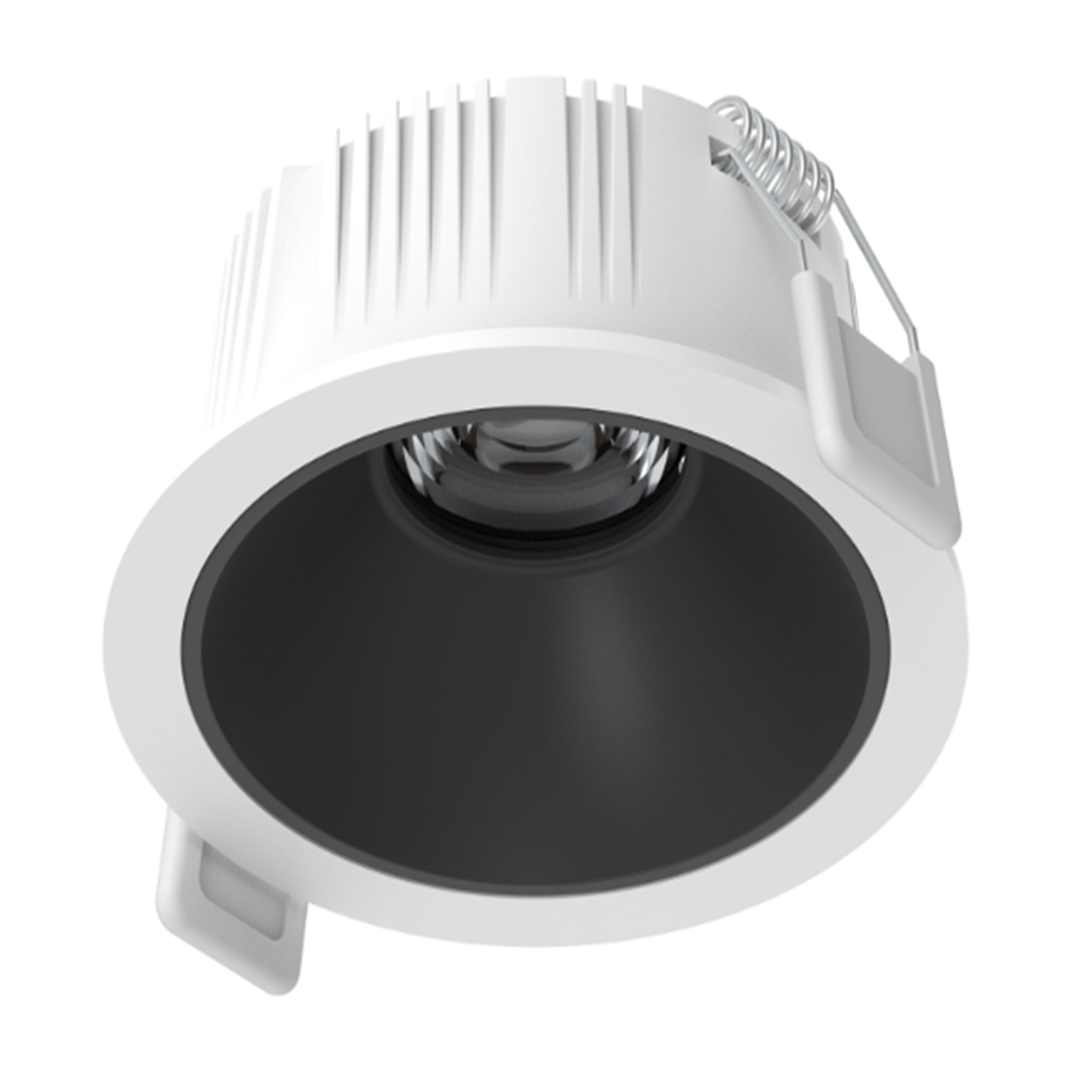

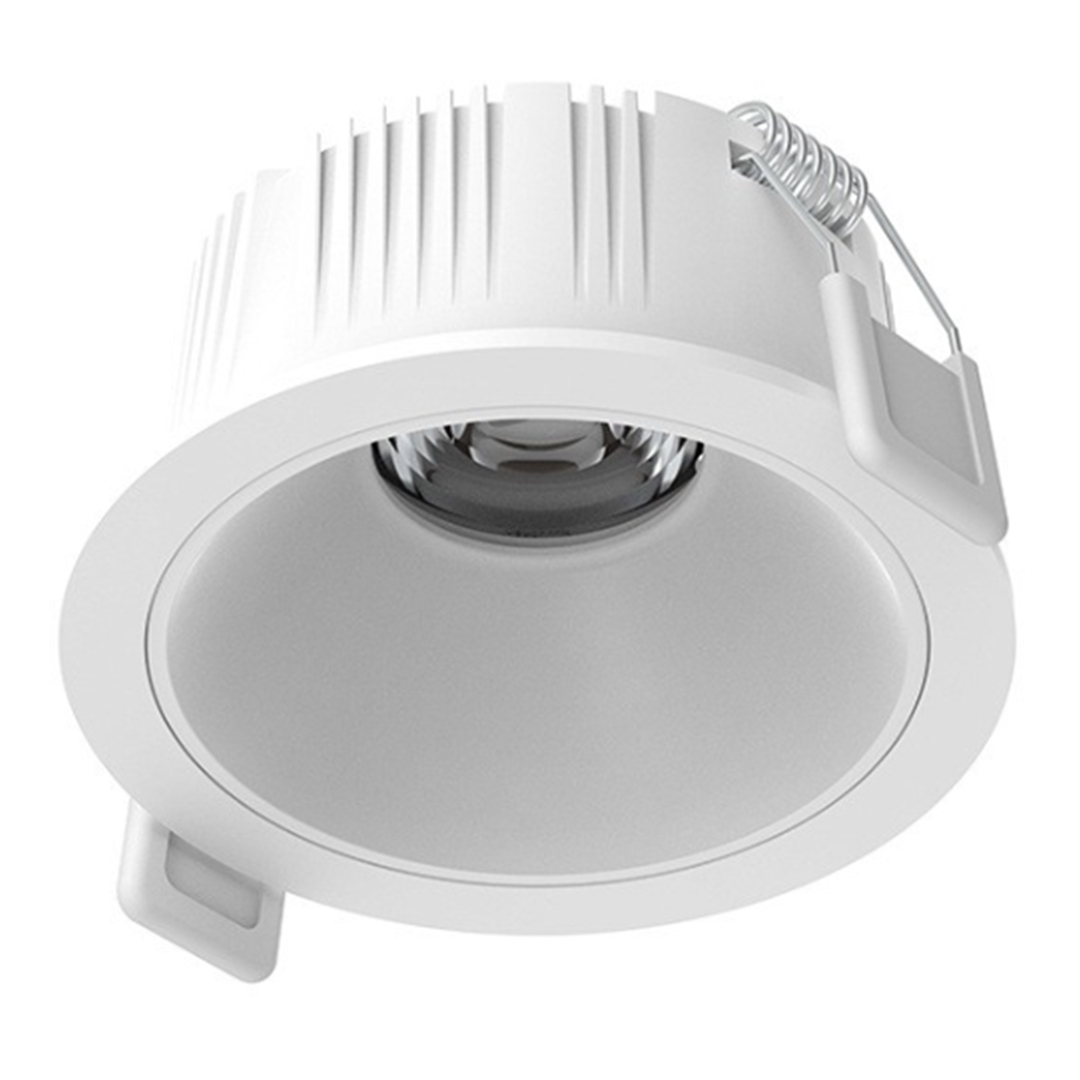

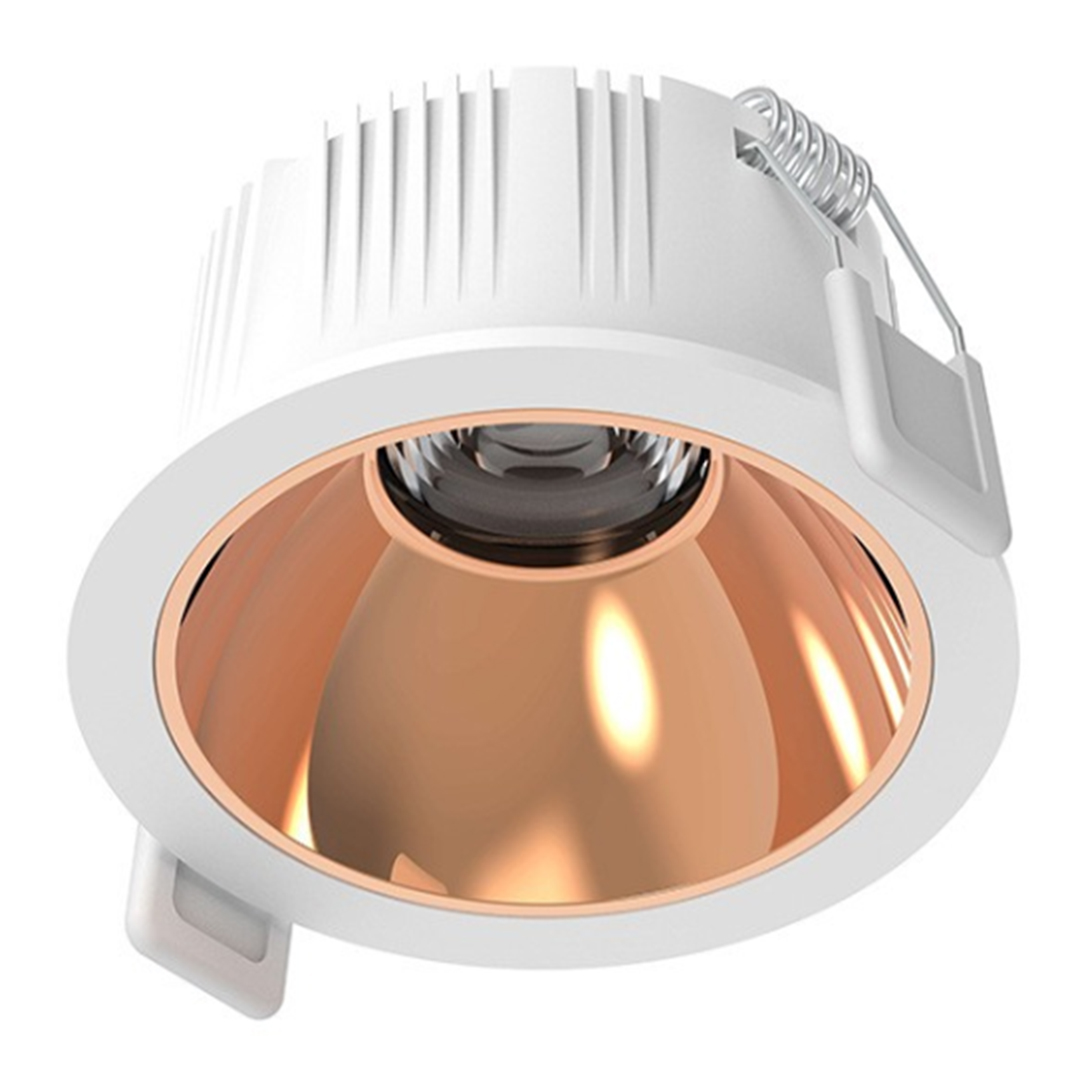

Eclat downlight collection offers multiple options to choose from wattages ranging between 5W – 40W in all standard symmetric beam options and as made available across 8 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle15° , 24° , 36° , 60°
CRI>80 >90
LEDCOB
LED DriverLifud Eaglerise Aidimming Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishWhite, Black, Matt silver, Matt black, lossy black, Glossy silver, Rose golden, Champagne gold



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-RD05003-55W400Φ60*35Φ5515°
24°
36°
60°		2700K
3000K
4000K
5000K
6000K		White
Black
Matt silver
Matt black
Glossy black
Glossy silver
Rose golden
Champagne gold
AE-RD05003-77W560Φ85*45Φ75
AE-RD05003-1212W960Φ90*47Φ80
AE-RD05003-1515W1200Φ105*50Φ95
AE-RD05003-2020W1600Φ130*52Φ120
AE-RD05003-2525W2000Φ160*60Φ145
AE-RD05003-3030W2400Φ175*63Φ160
AE-RD05003-3535W2800Φ220*75Φ200
AE-RD05003-4040W3200Φ220*75Φ200
Wattage

12, 15, 20, 25, 30, 35, 40, 5, 7
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

15, 24, 36, 60
Product Code

AE-RD05003-5, AE-RD05003-7, AE-RD05003-12, AE-RD05003-15, AE-RD05003-20, AE-RD05003-25, AE-RD05003-30, AE-RD05003-35, AE-RD05003-40
