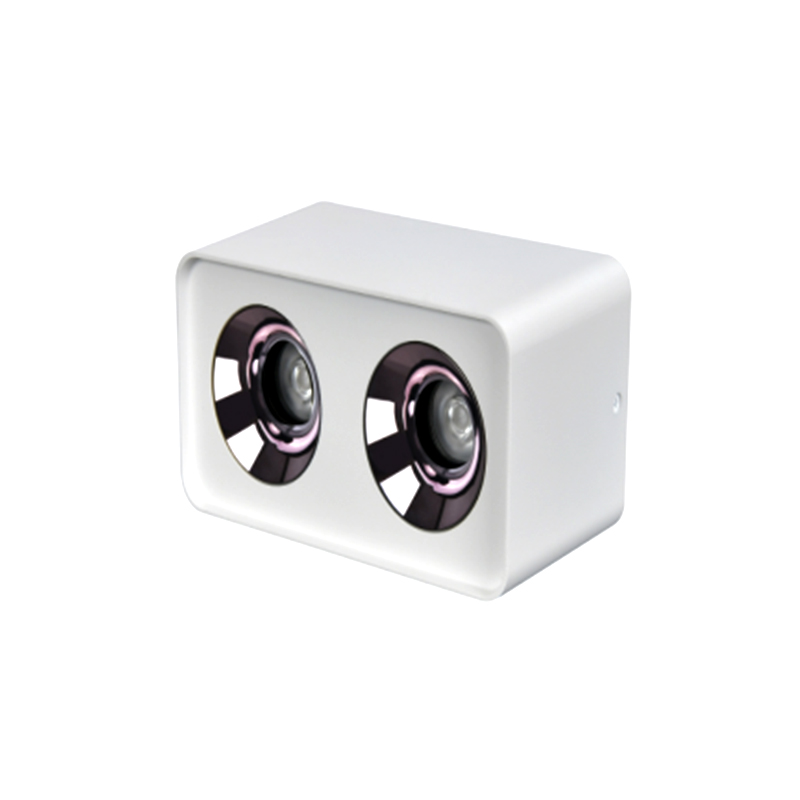

Flion (Two) surface mounted downlight collection offers multiple options to choose from wattages ranging between 12W in all standard symmetric beam Special IP54 versions can also be offered on request. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.
| IP Rate | IP20 IP54 (+0.4usd/head) |
| Beam Angle | 15° , 24°, 36°, 60° |
| CRI | >80 |
| LED | COB |
| LED Driver | Lifud, Eaglerise, Customized |
| Input Voltage | AC220V-240V 50-60Hz |
| Finish | Trim: White/ Black |
| Reflector | White, Black, Glossy black, Glossy Silver, Rose Golden |
| CODE | POWER (w) | LUMEN OUTPUT (±5%, lm) | DIMENSION (mm) | CUT OUT (mm) | BEAM ANGLE | CCT | FINISH |
|---|---|---|---|---|---|---|---|
| AE-CRS05008-2*12 | 24 | 1920 | Φ 202x108xH110 | Φ / | 15° / 24° / 36° / 60° | 2700K 3000K 4000K 5000K 6000K | White/Black |
| AE-CRS05008-3*12 | 36 | 2880 | Φ 298x108xH110 | Φ / | 15° / 24° / 36° / 60° | White/Black | |
| AE-CRS05008-4*12 | 48 | 3840 | Φ 202x202xH110 | Φ / | 15° / 24° / 36° / 60° | White/Black |
| Wattage | 24, 36, 48 |
|---|---|
| Beam Angle | 15, 24, 36, 60 |
| Color Temperature | 2700, 3000, 4000, 5000, 6000 |
| Product Code | AE-CRS05008-2*12, AE-CRS05008-3*12, AE-CRS05008-4*12 |
