Grazi

$100.00

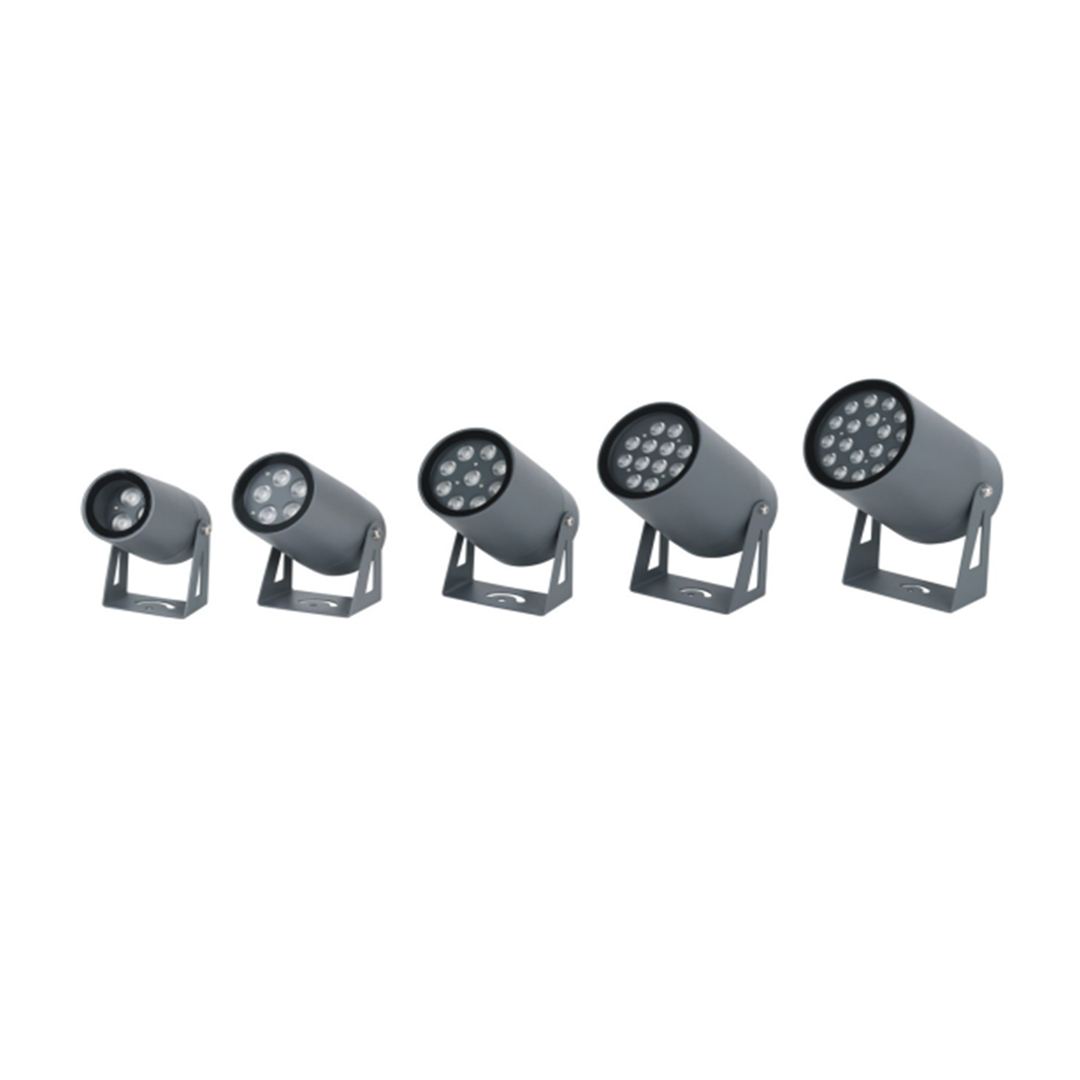

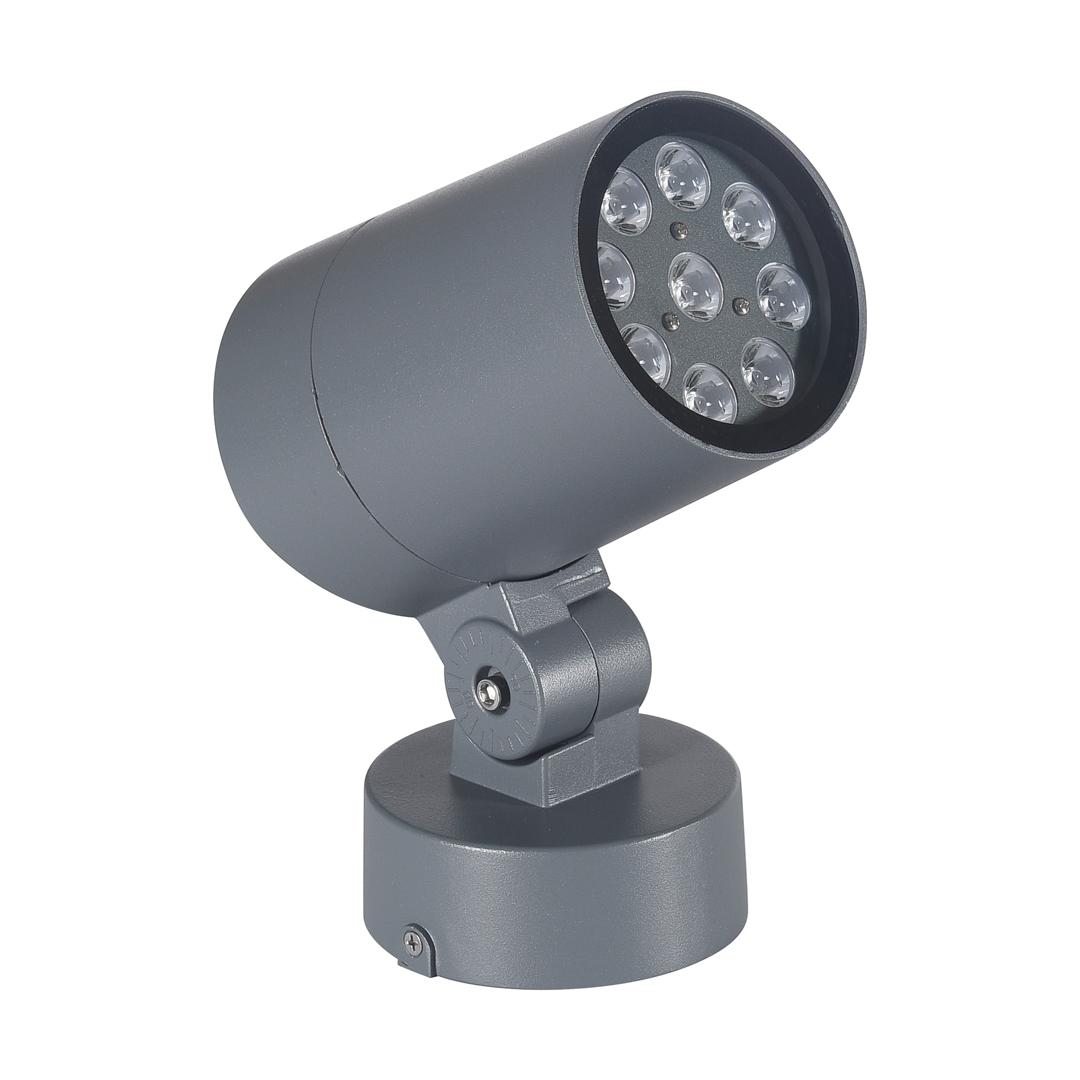

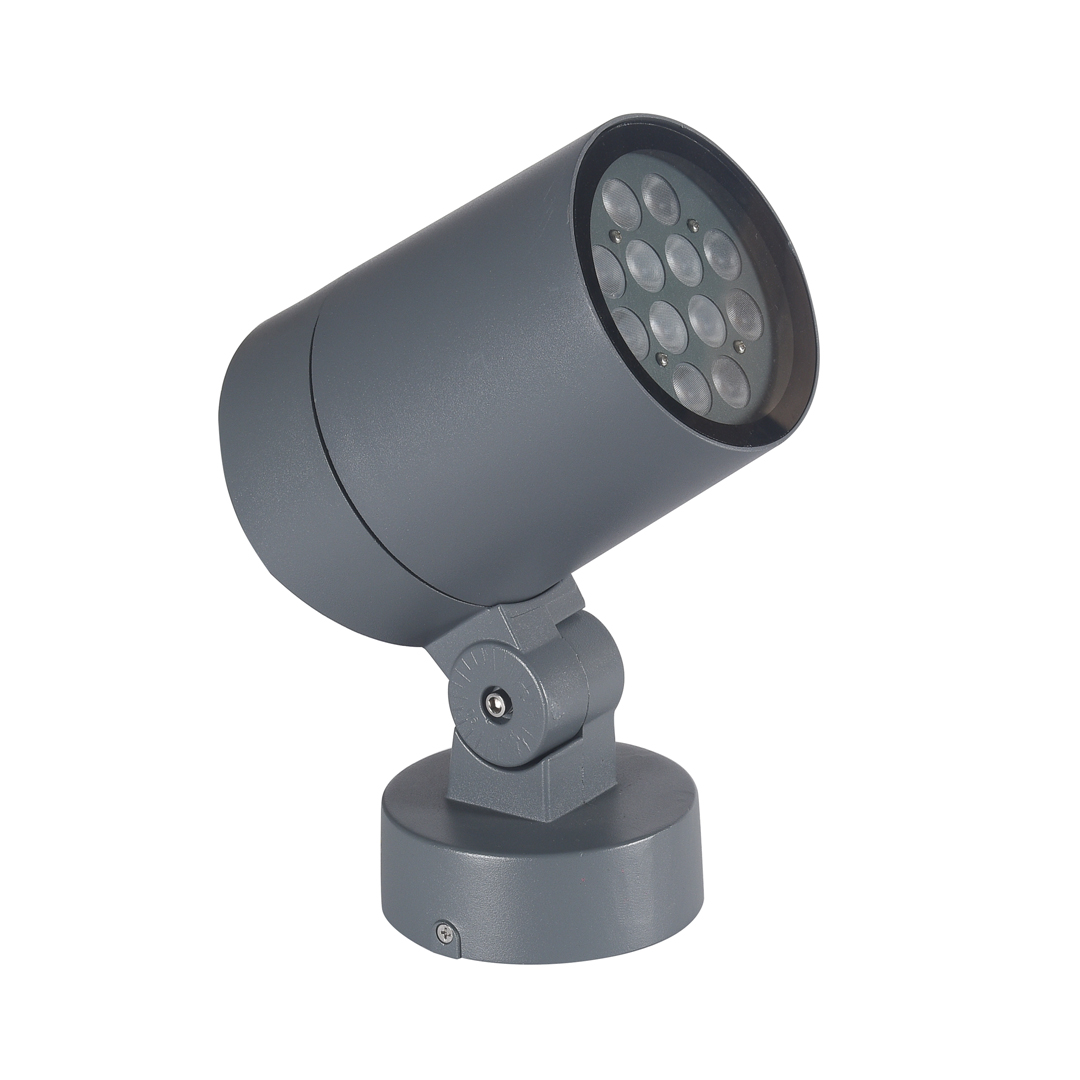

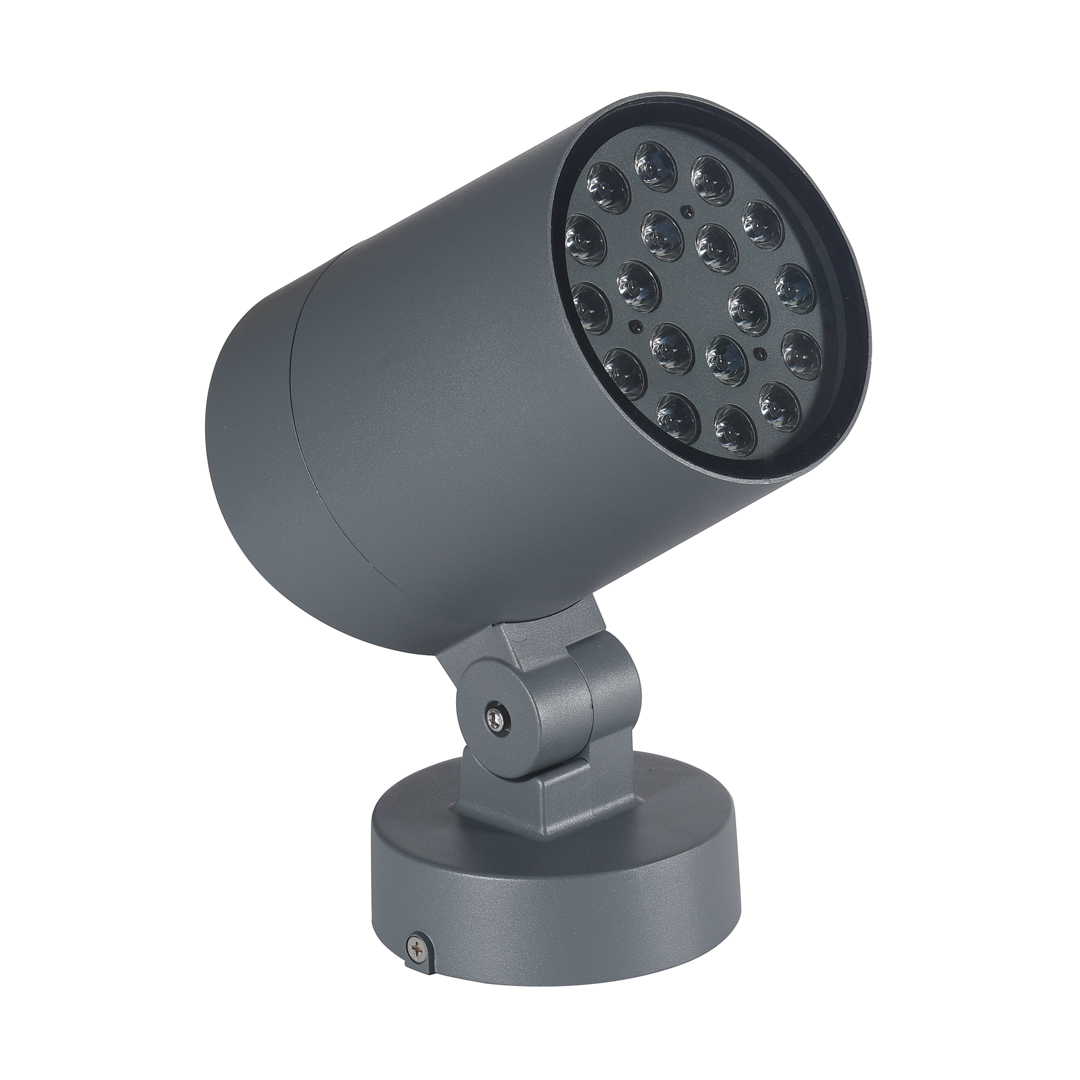

Grazi spike light collection offers multiple options to choose from wattages ranging between 6W – 36W in all standard symmetric beam options and as made available in 5 size.

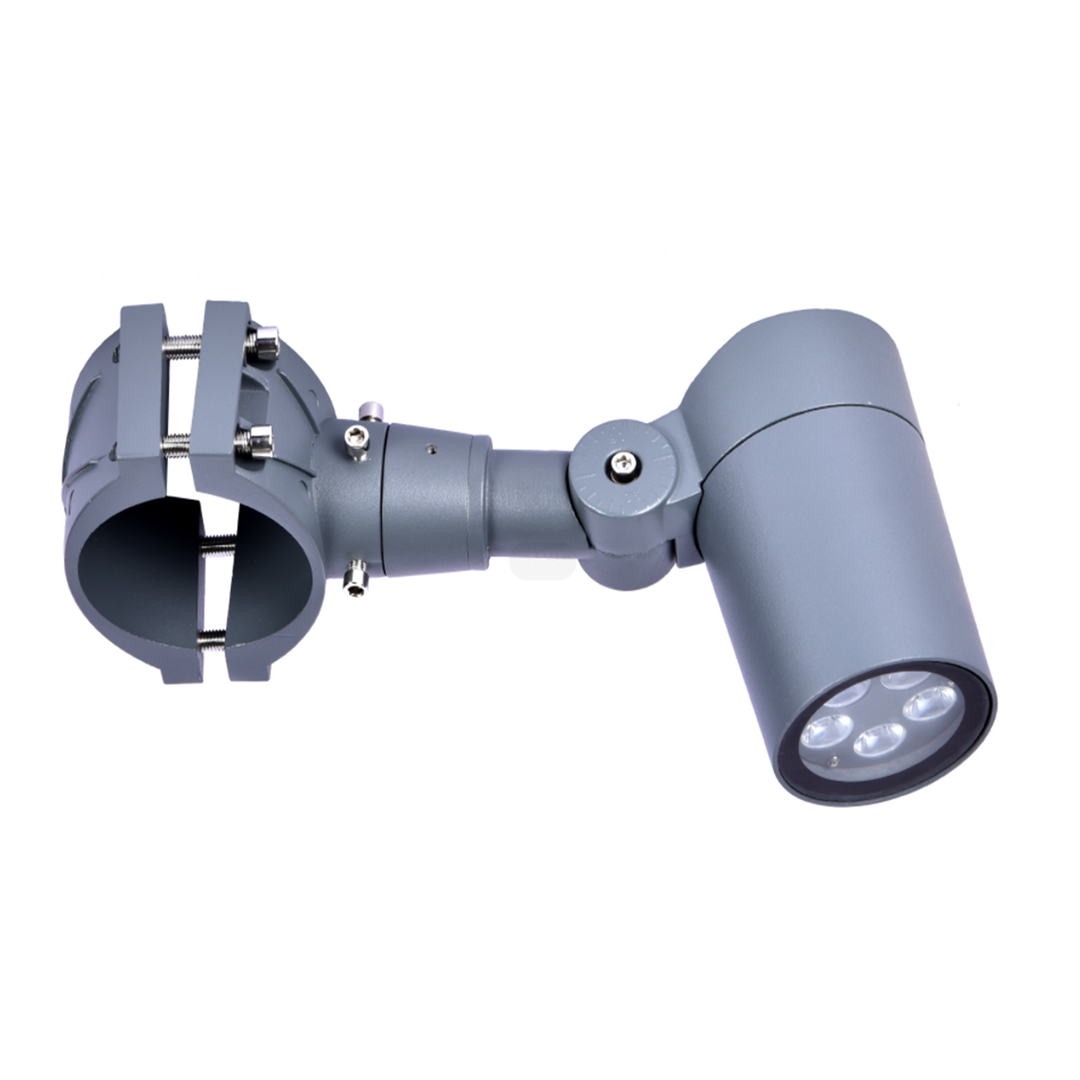

Offered with or without spike option to adopt to site requirements within the standard color spectrum. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP65
MaterialDie-casting aluminum +tempered glass
Beam Angle5° / 10° / 15° / 30° / 45° / 60° / 10*30° / 10*60°
CRI>80
LED3pcs, 5pcs, 9pcs, 12pcs, 18pcs
Voltage DC24V/AC220V
FinishBlack, Gray



Certifications



SKU: N/A Categories: ,

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-OTSP18006-66480Φ 62x102Φ /5° / 10° / 15° / 30° / 45° / 60° / 10x30° / 10x60°2700K
3000K
4000K
6000K
Black,Gray
AE-OTSP18006-1010800Φ 80x136Φ /5° / 10° / 15° / 30° / 45° / 60° / 10x30° / 10x60°
Black,Gray
AE-OTSP18006-18181440Φ 100x155Φ /5° / 10° / 15° / 30° / 45° / 60° / 10x30° / 10x60°
Black,Gray
AE-OTSP18006-24241920Φ 122x180Φ /5° / 10° / 15° / 30° / 45° / 60° / 10x30° / 10x60°
Black,Gray
AE-OTSP18006-36362880Φ 143x200Φ /5° / 10° / 15° / 30° / 45° / 60° / 10x30° / 10x60°
Black,Gray
Wattage

18, 6, 10, 24, 36
Color Temperature

2700, 3000, 4000, 6000
Beam Angle

15, 10, 10×30, 10×60, 30, 45, 5, 60
Product Code

AE-OTSP18006-6, AE-OTSP18006-10, AE-OTSP18006-18, AE-OTSP18006-24, AE-OTSP18006-36
