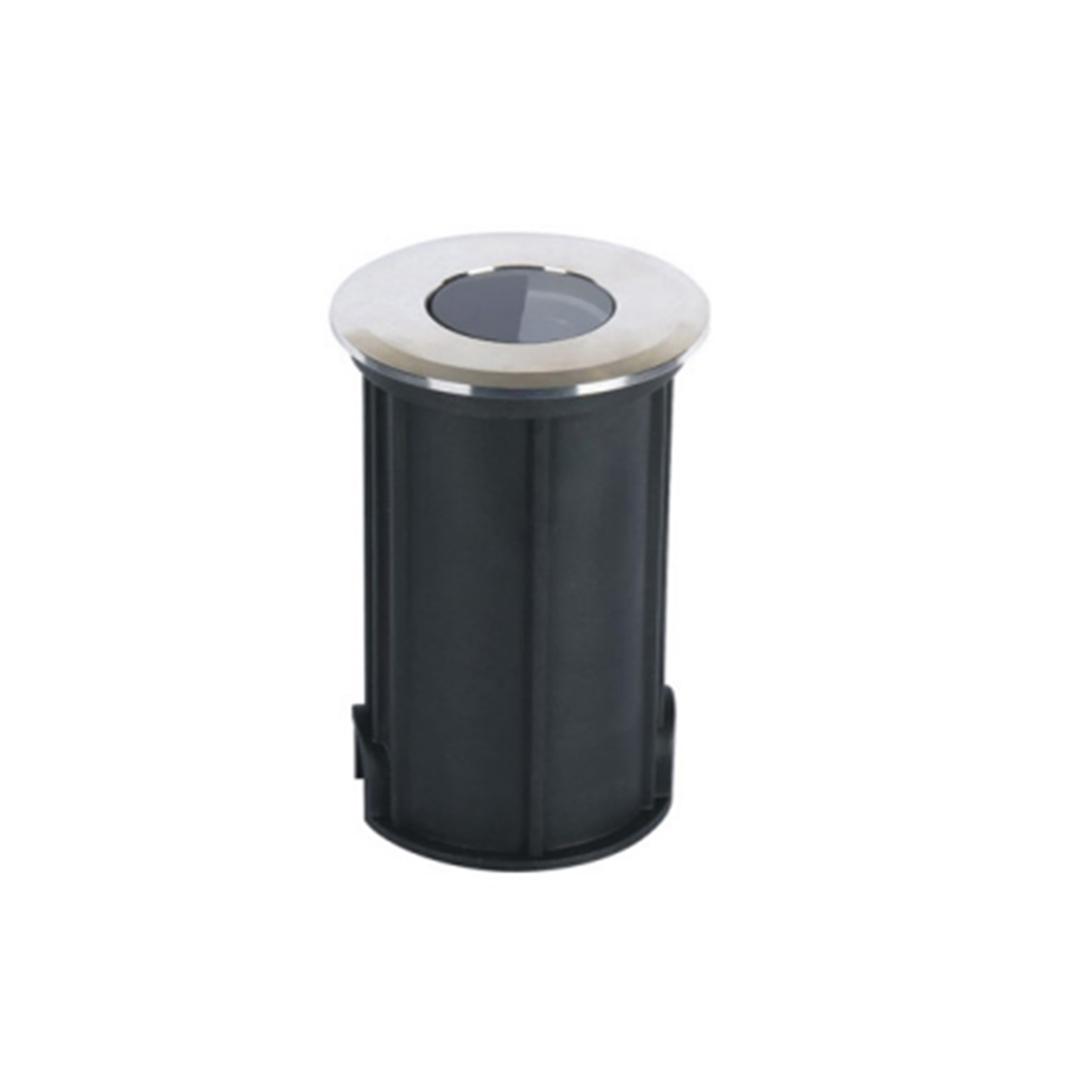

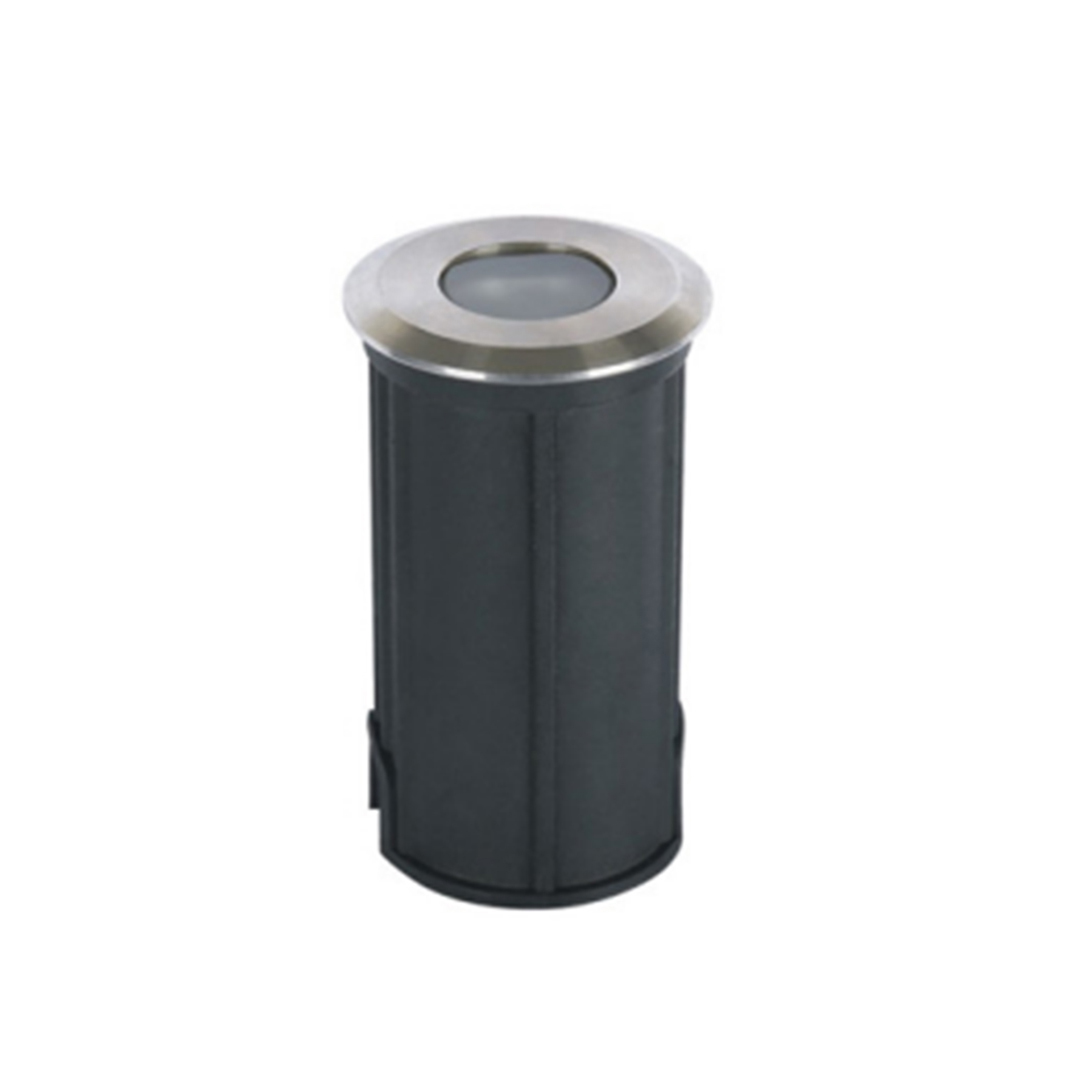

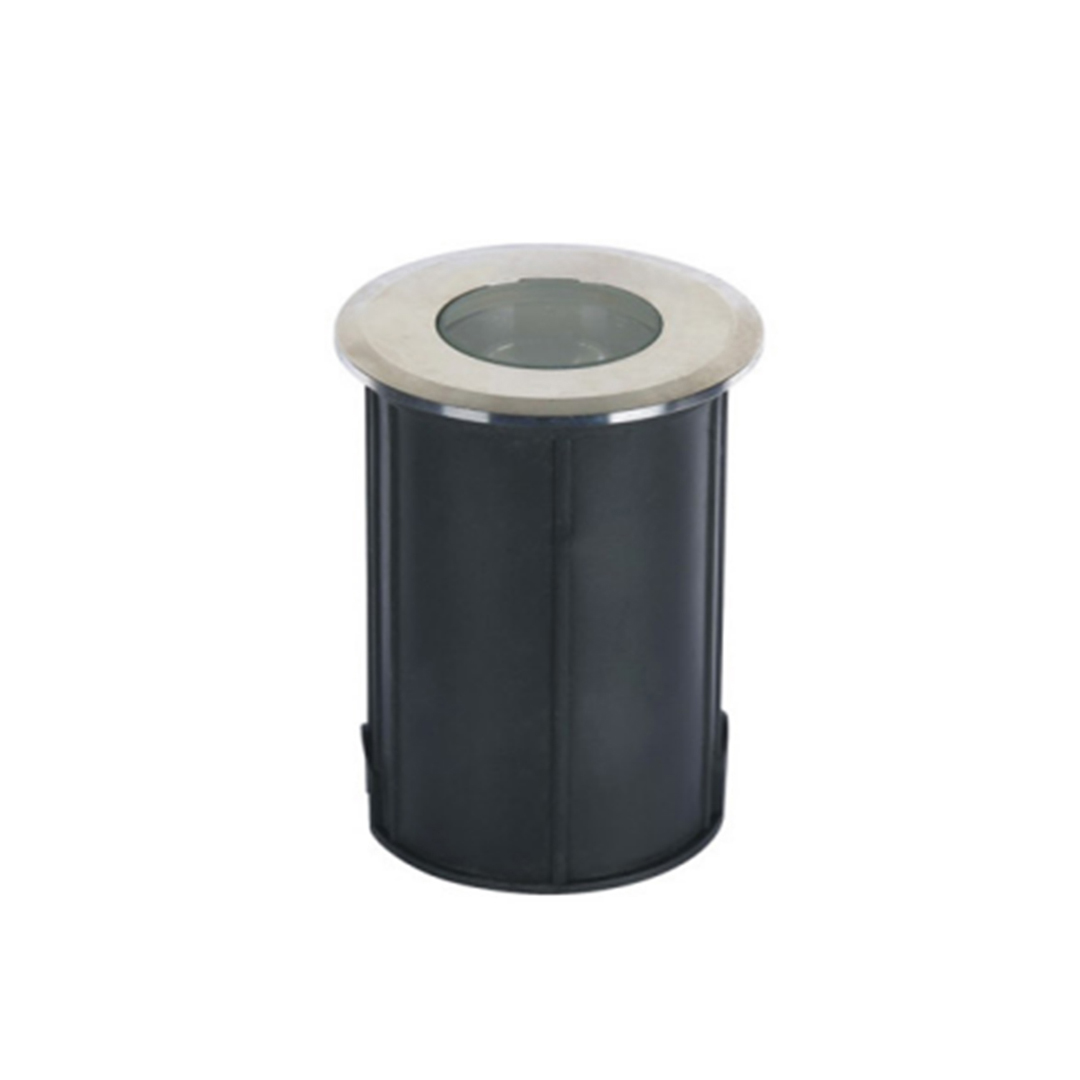

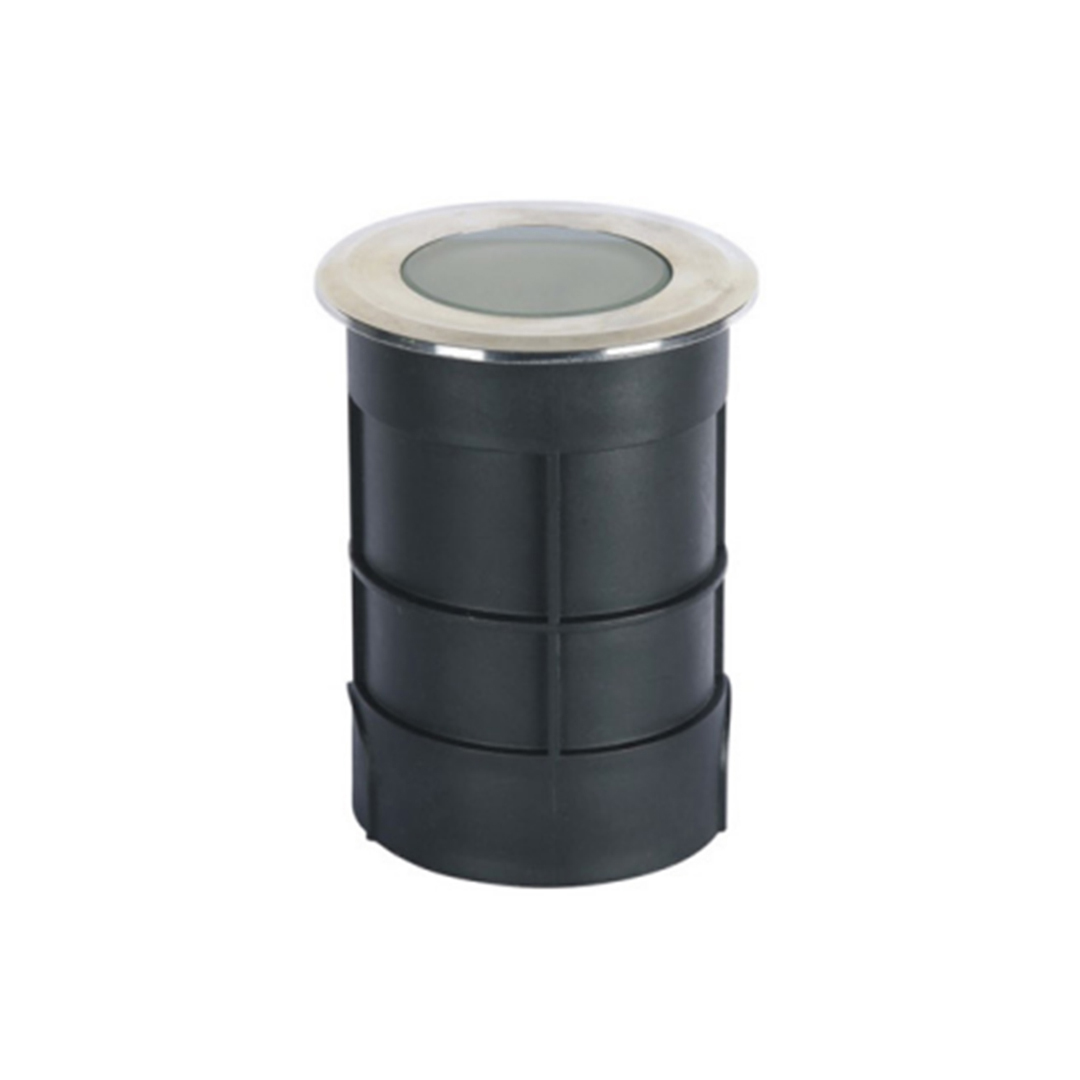

Grond

$100.00

Grond inground uplight collection offers multiple options to choose from wattages ranging 1W – 6W in all standard symmetric beam

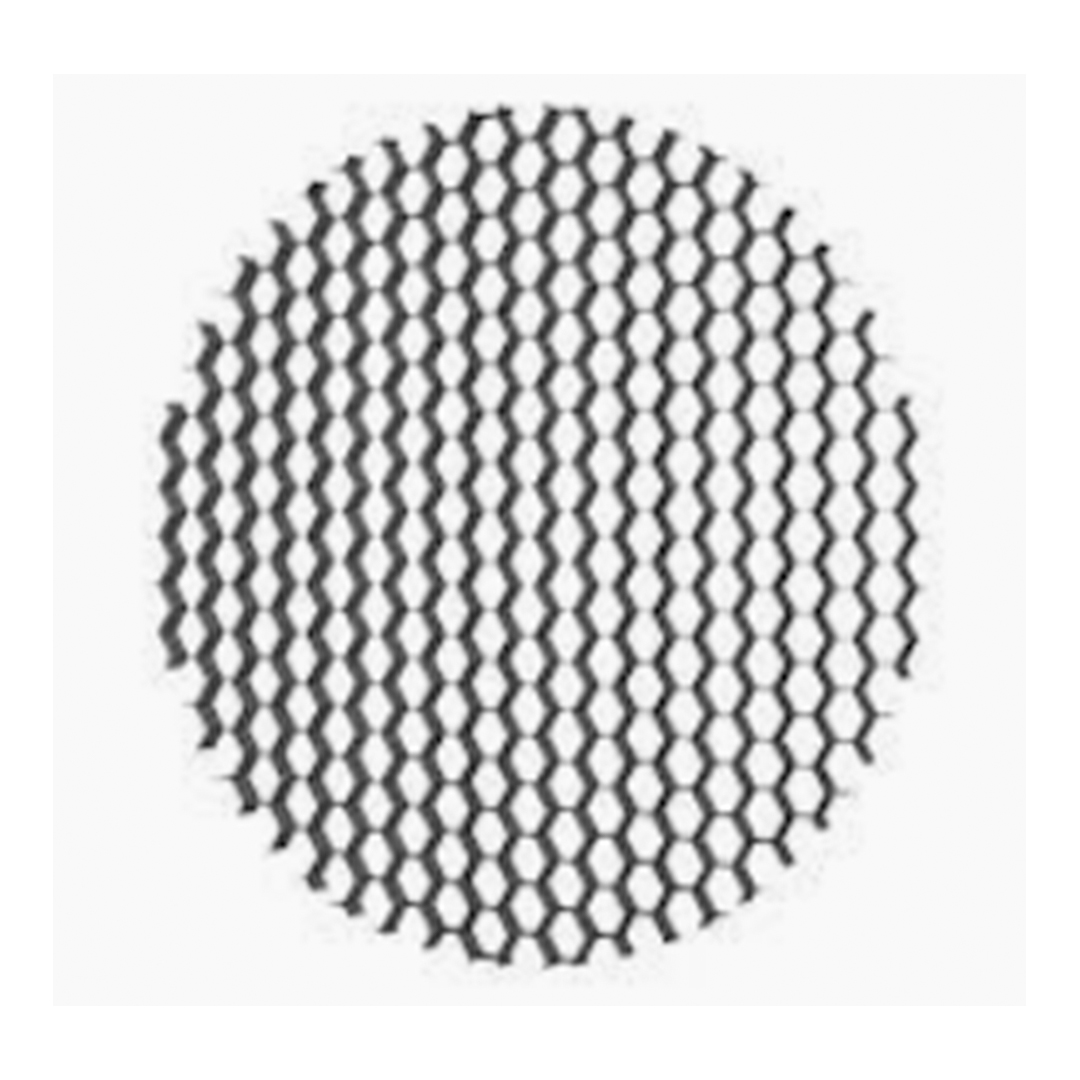

options and as made available across 4 varied size options to adopt to site requirements within the standard color spectrum. Honeycomb louver options are available upon request Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP68
Material304 stainless steel cover +die-casting aluminum body + tempered glass
Beam Angle5°/10°/15°/25°/45°/60°/90°
CRI>80
LEDCOB*1 , COB*3
Voltage DC24V, DC24V/AC220V
FinishSilver



Certifications



SKU: N/A Categories: ,

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-OTUD18006-1170Φ 42x80Φ 385° / 10° / 15° / 25° / 45° / 60° / 90°2700K
3000K
4000K
6000K
Silver
AE-OTUD18006-1B170Φ 52x82Φ 455° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18006-1C170Φ 62x88Φ 555° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18006-22140Φ 62x88Φ 555° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18006-33210Φ 75x90Φ 655° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18006-66420Φ 75x90Φ 655° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
Wattage

3, 6, 1, 2
Color Temperature

2700, 3000, 4000, 6000
Beam Angle

15, 10, 25, 45, 5, 60, 90
Product Code

AE-OTUD18006-1, AE-OTUD18006-1B, AE-OTUD18006-1C, AE-OTUD18006-2, AE-OTUD18006-3, AE-OTUD18006-6
