Grownd

$100.00

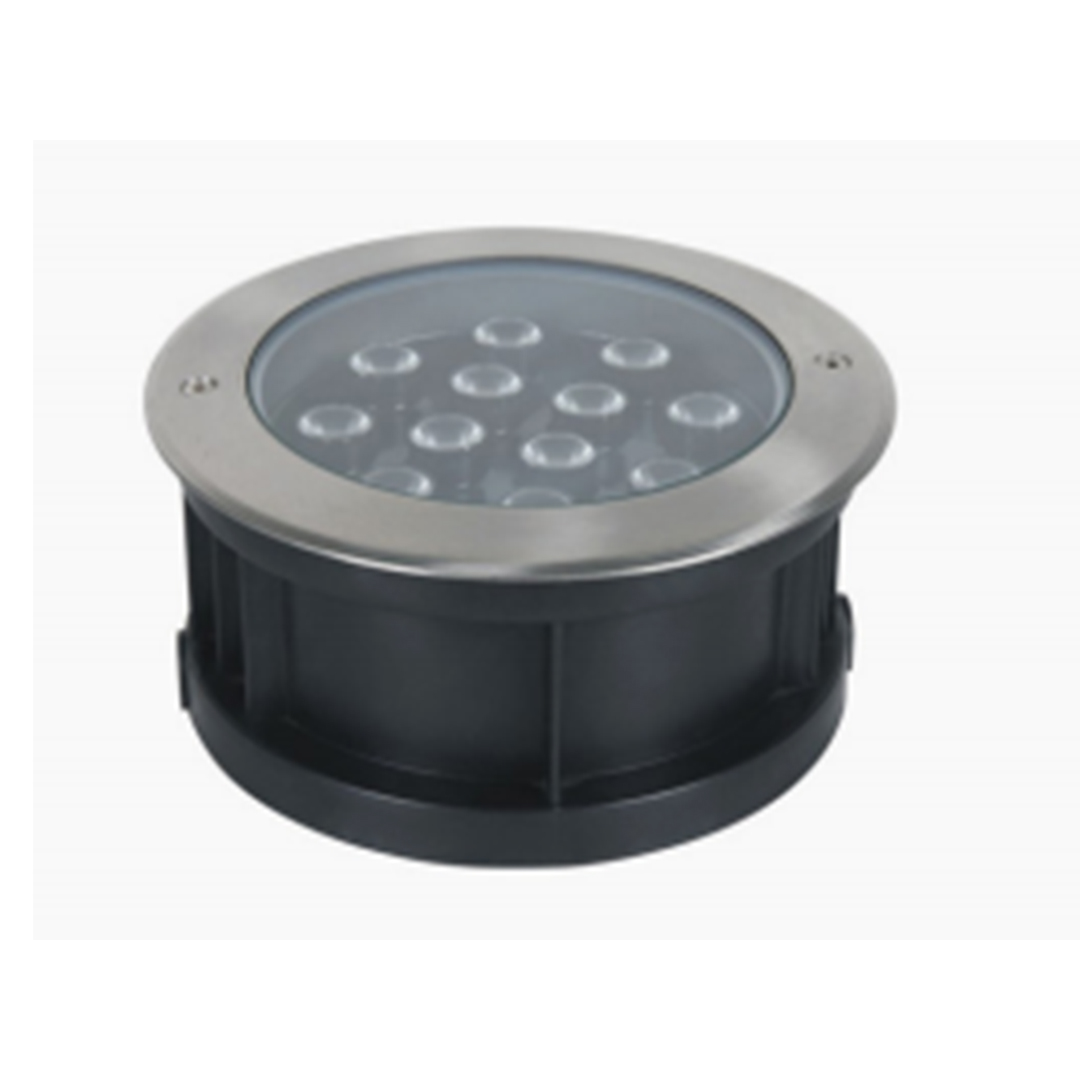

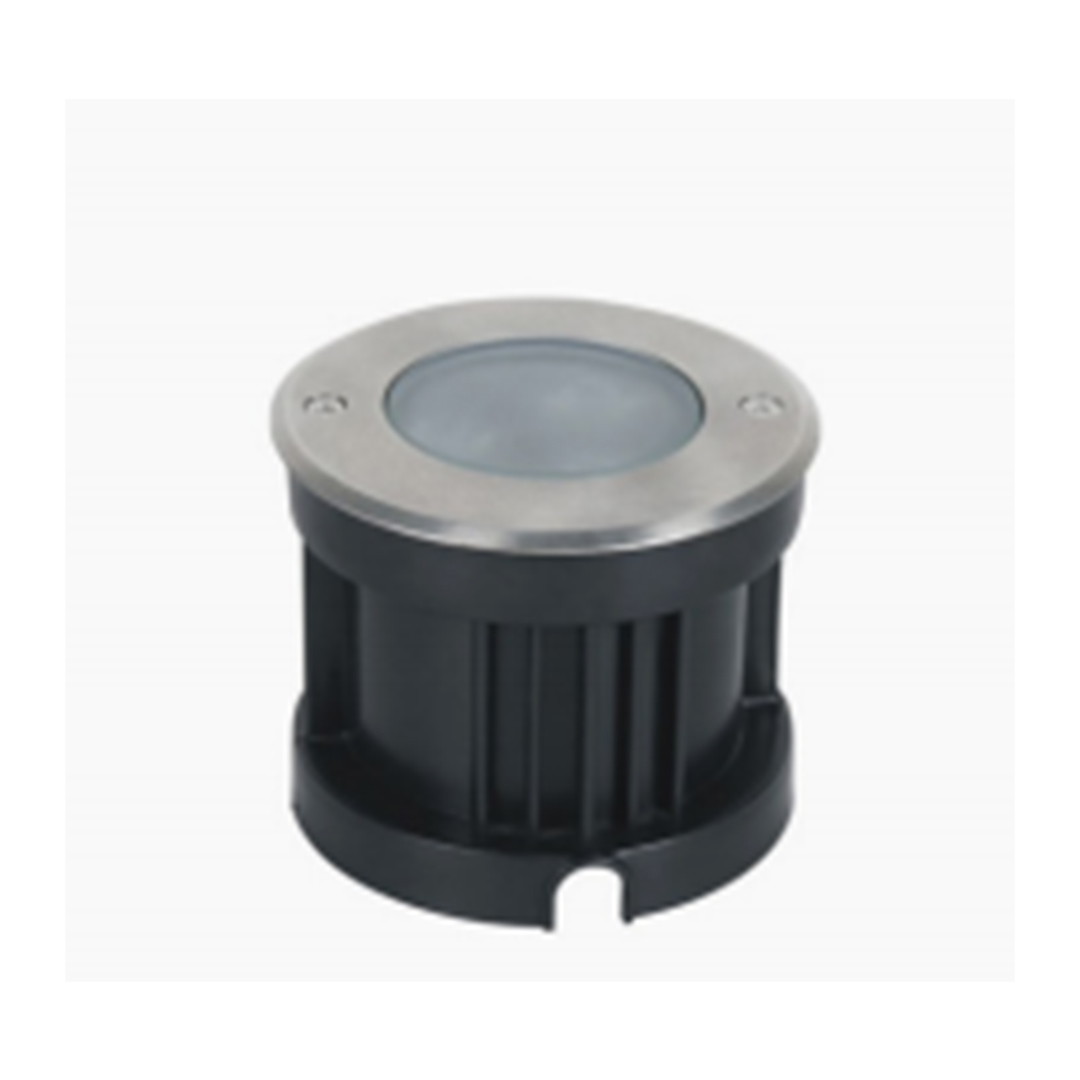

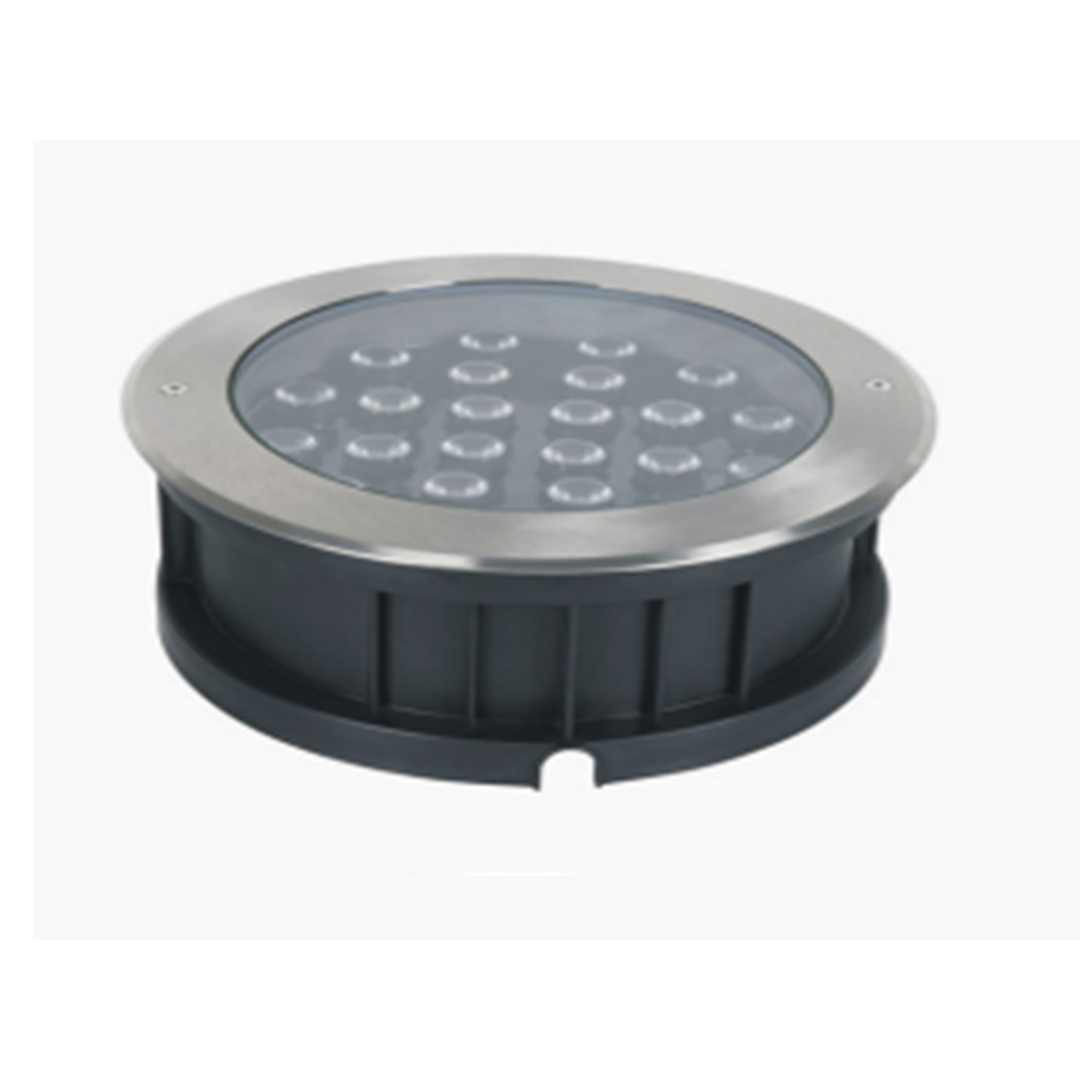

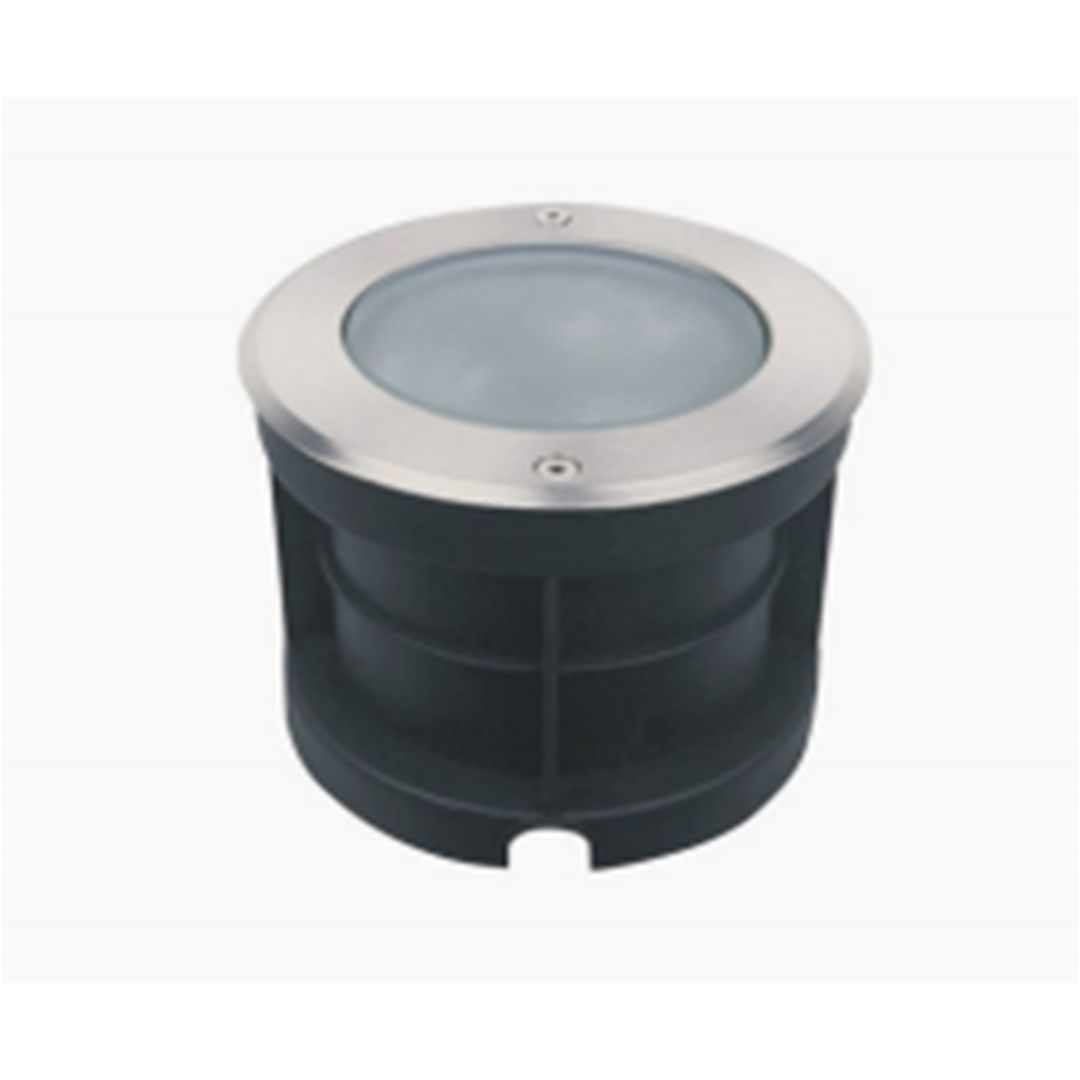

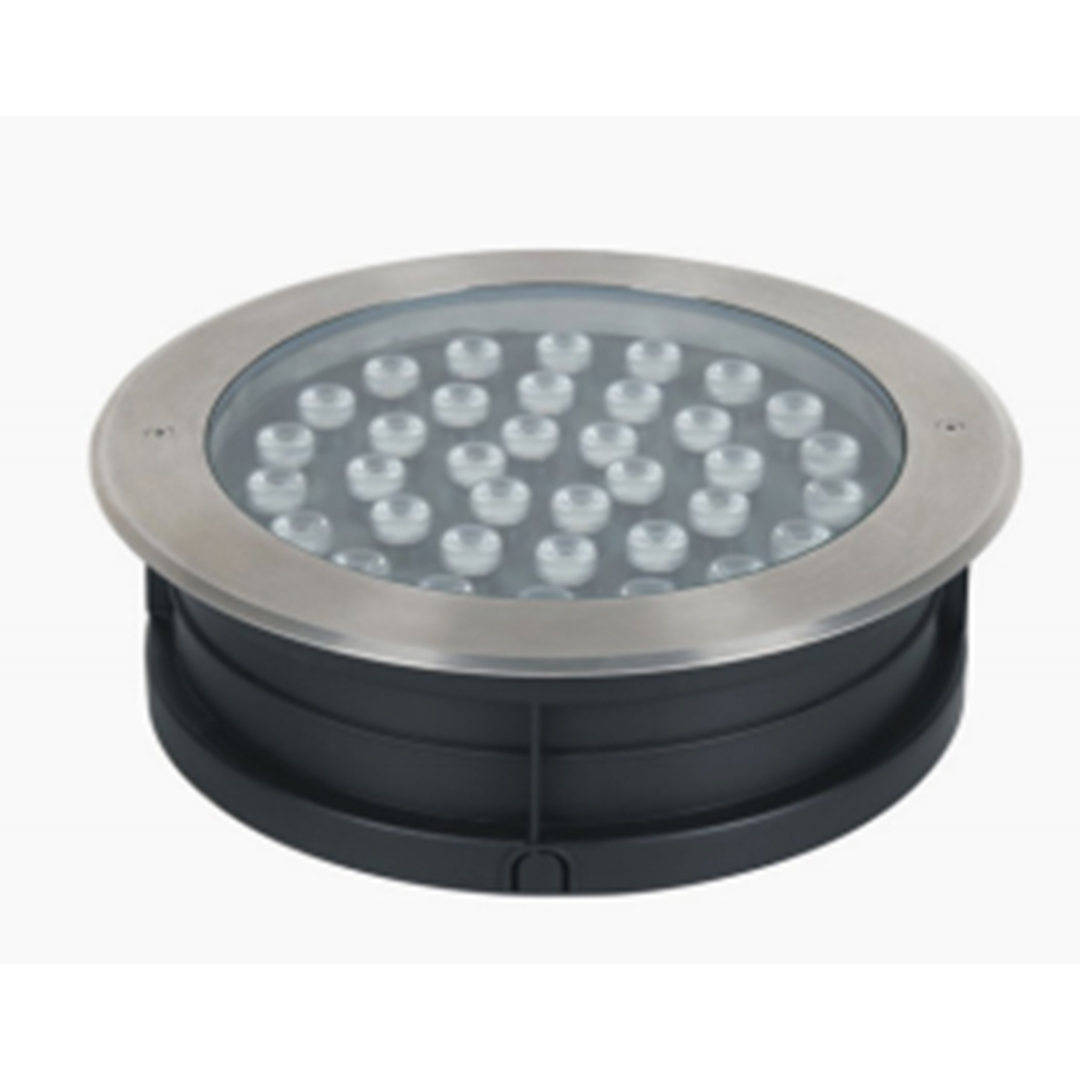

Grownd inground uplight collection offers multiple options to choose from wattages ranging 3W – 48W in all standard symmetric beam

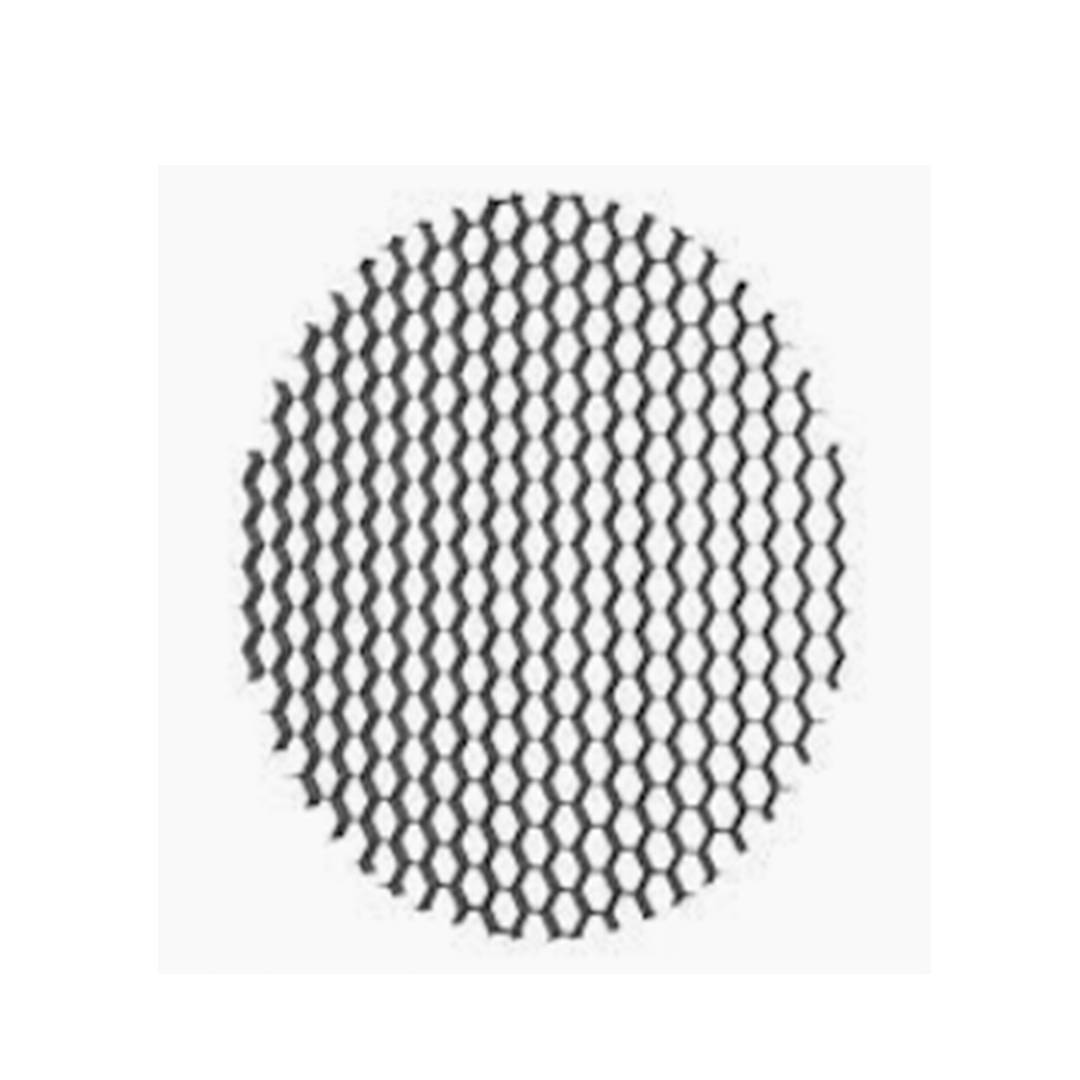

options and as made available across 6 varied size options to adopt to site requirements within the standard color spectrum. Honeycomb louver options are available upon request Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP67
Material316 stainless steel cover +die-casting aluminum body + tempered glass
Beam Angle5° / 10° / 15° / 25° / 45° / 60° / 90°
CRI>80
LED3pcs, 5pcs, 9pcs, 12pcs, 18pcs
LED DriverNot inlcuded
Voltage DC24V/AC220V
FinishSilver



Certifications



SKU: N/A Categories: ,

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-OTUD18007-33240Φ 100x80Φ 955° / 10° / 15° / 25° / 45° / 60° / 90°2700K
3000K
4000K
6000K
Silver
AE-OTUD18007-66480Φ 150x86Φ 1355° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18007-99720Φ 180x90Φ 1555° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18007-1212960Φ 180x90Φ 1555° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18007-18181440Φ 200x90Φ 1855° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18007-24241920Φ 250x92Φ 2355° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18007-36362880Φ 320x100Φ 2955° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18007-48483840Φ 320x100Φ 2955° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
Wattage

12, 18, 3, 6, 24, 36, 48, 9
Color Temperature

2700, 3000, 4000, 6000
Beam Angle

15, 10, 25, 45, 5, 60, 90
Product Code

AE-OTUD18007-3, AE-OTUD18007-6, AE-OTUD18007-9, AE-OTUD18007-12, AE-OTUD18007-18, AE-OTUD18007-24, AE-OTUD18007-36, AE-OTUD18007-48
