Ignix

$100.00

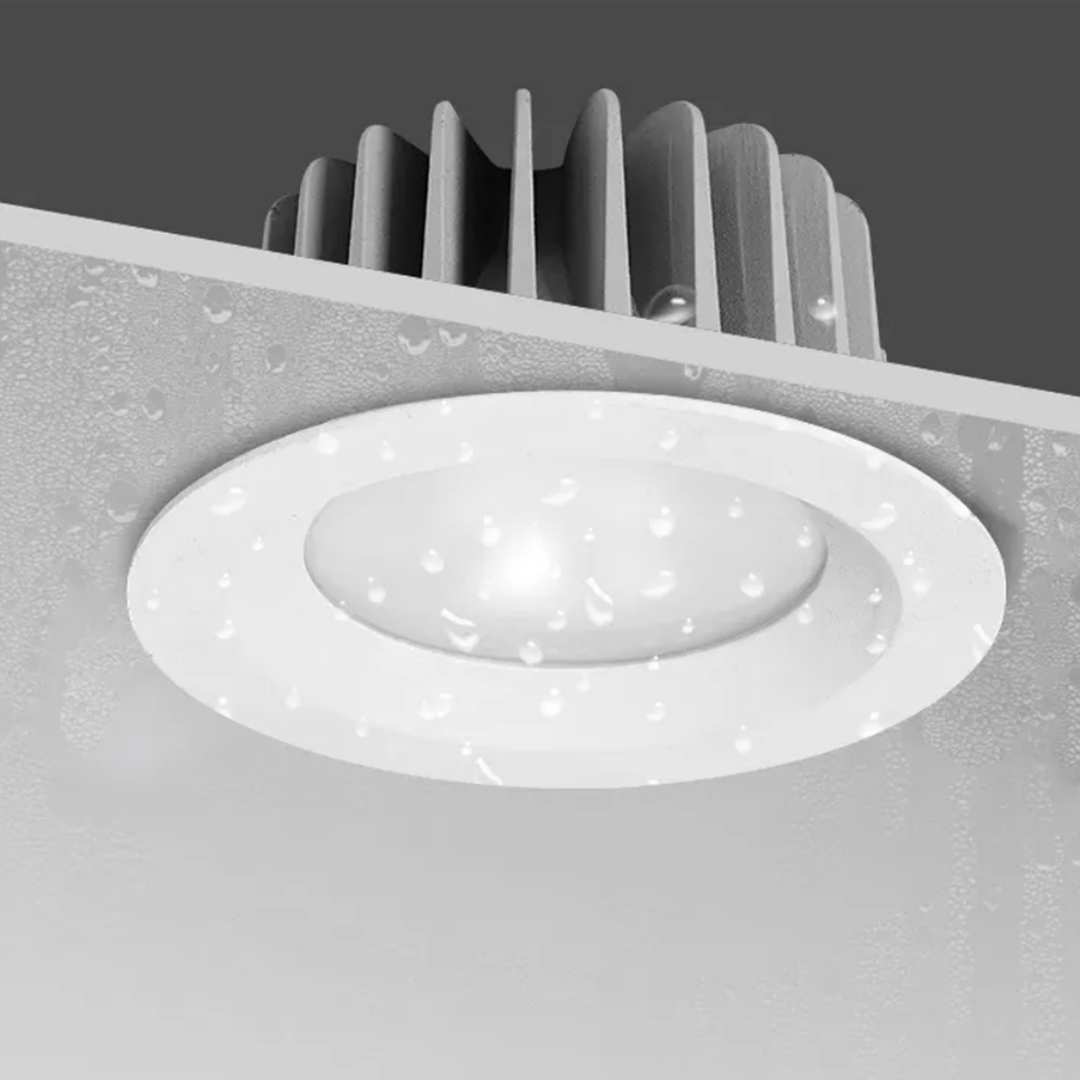

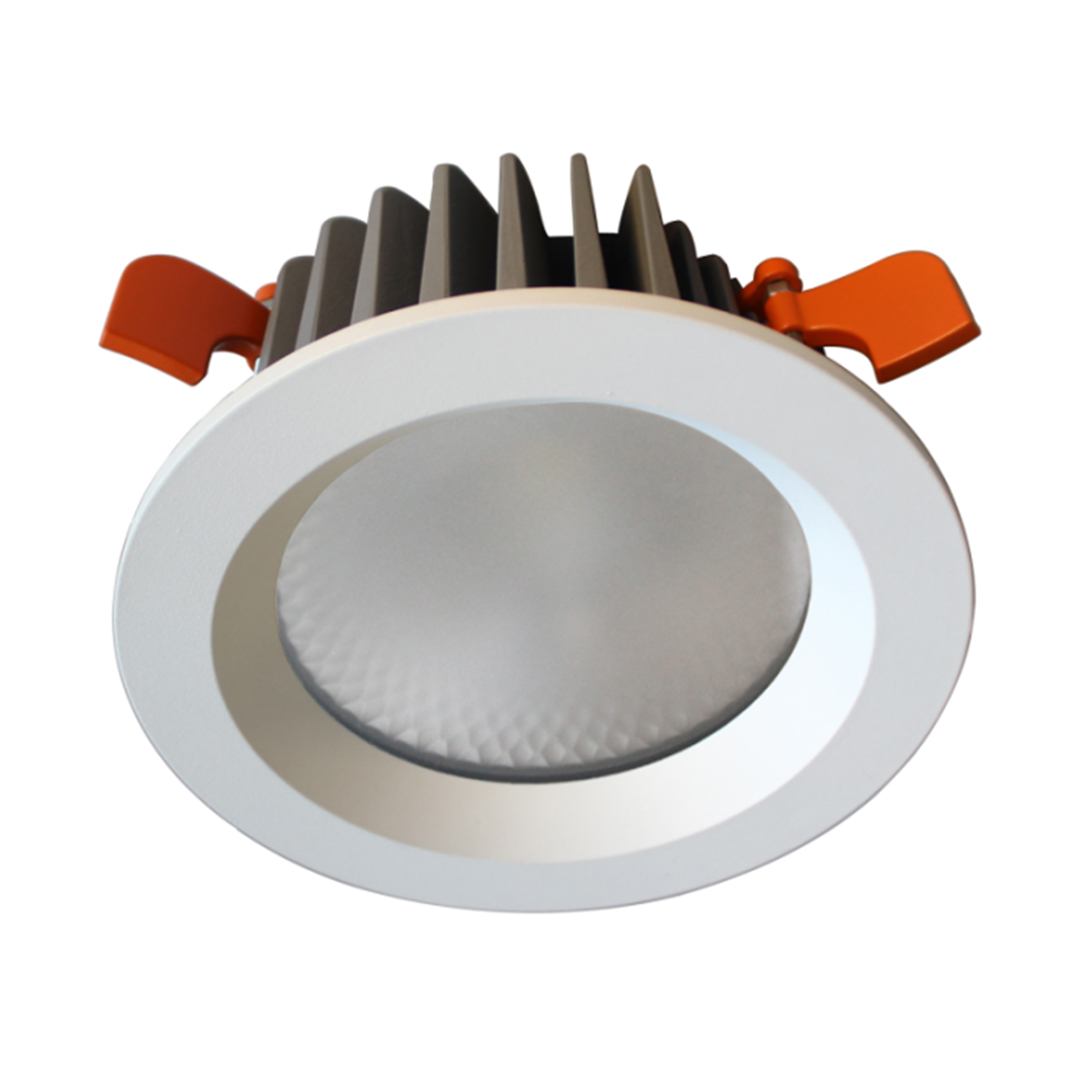

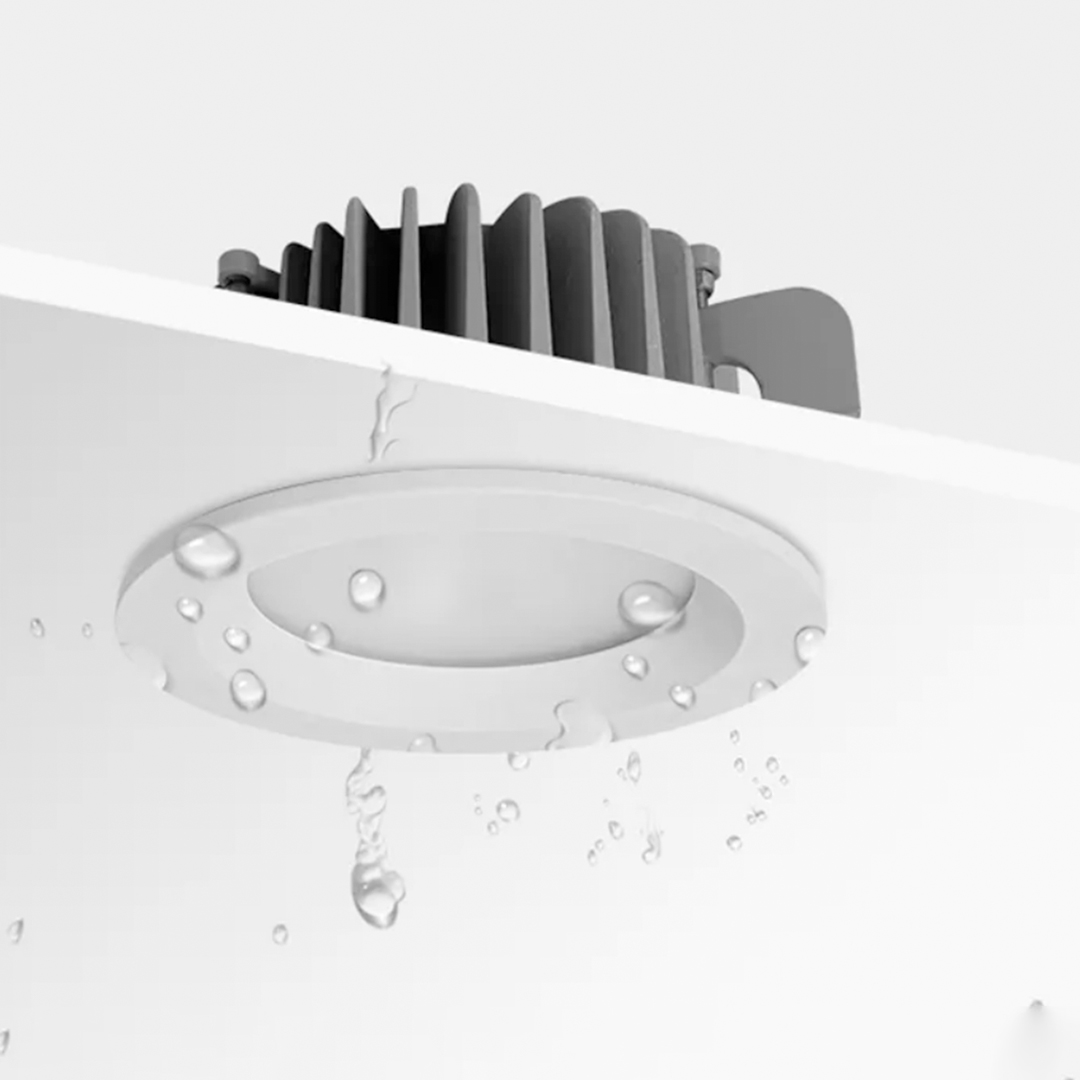

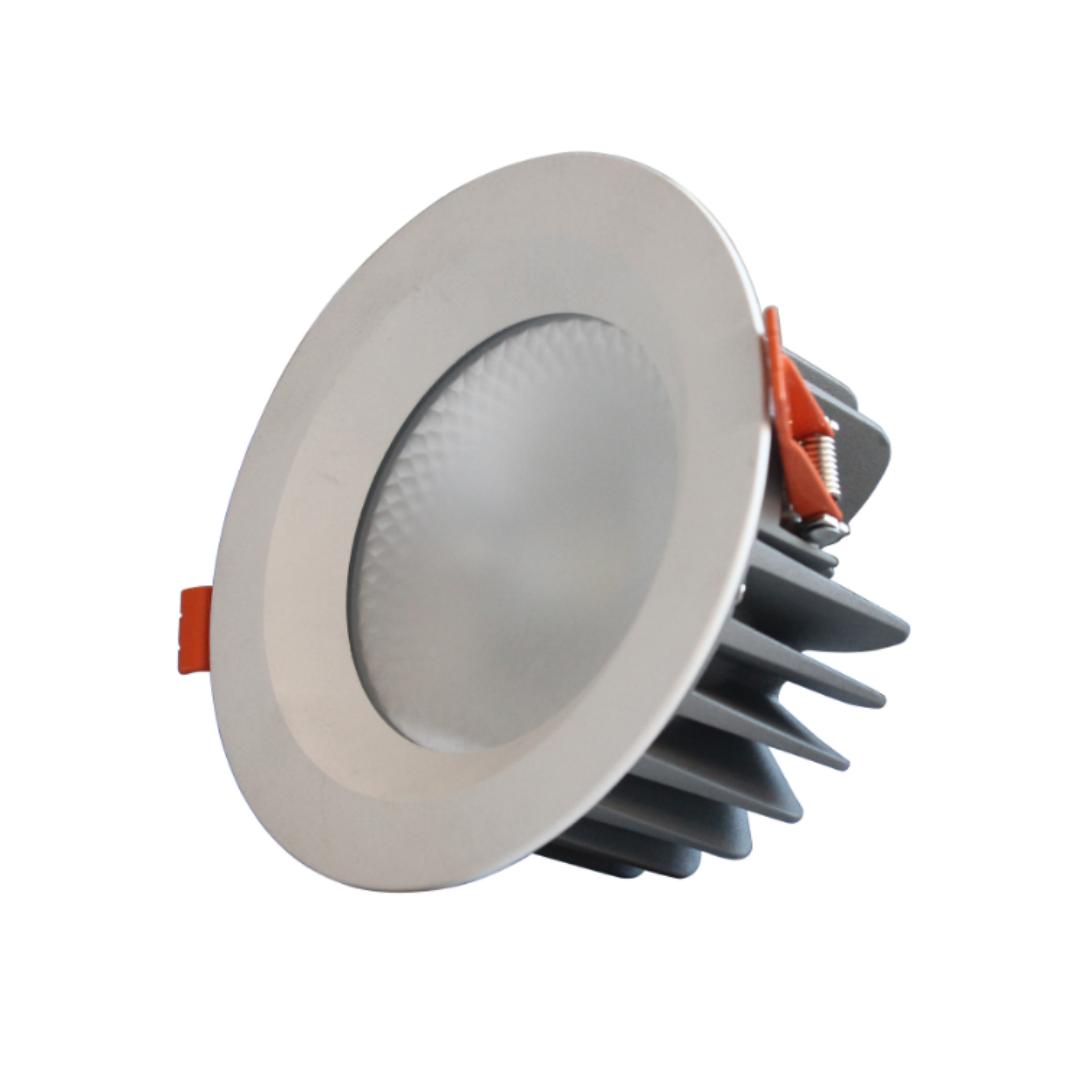

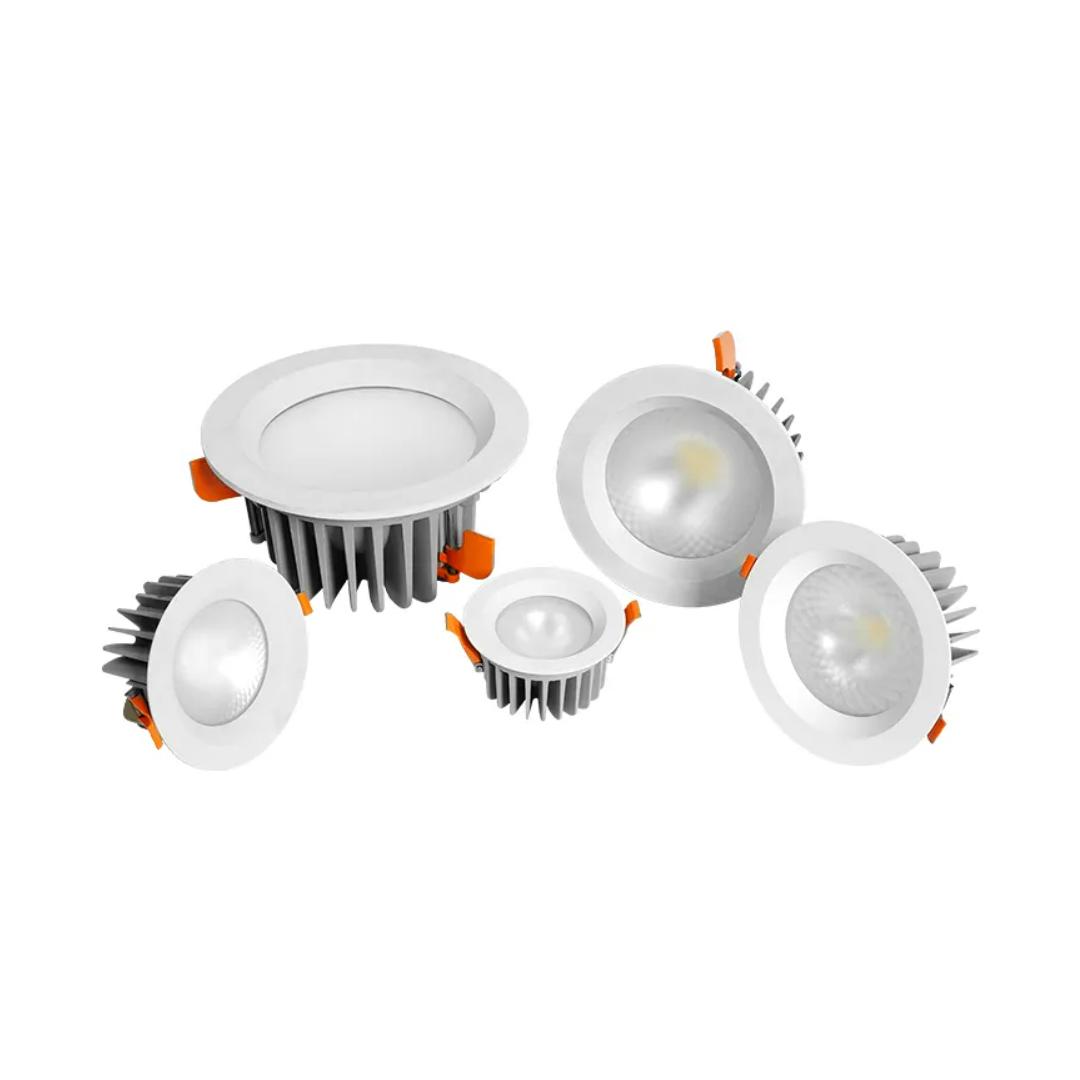

Ignix IP rated downlight collection offers multiple options to choose from wattages ranging between 10W – 60W in all standard symmetric beam options and as made available across 5 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding.
Dimmable driver options are available on request.



Technical Data

IP RateIP54
Beam Angle15°, 25°
CRI>80 , >90
LEDSMD3030, COB
LED DriverIP rated driver
Input VoltageAC220V-240V 50-60Hz
FinishWhite



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-WP03001-1010750Φ 110x65Φ 95110°2700K
3000K
4000K
5000K
6000K
White
AE-WP03001-15151125Φ 135x72Φ 110110°
White
AE-WP03001-25251875Φ 160x75Φ 130110°
White
AE-WP03001-40403000Φ 185x107Φ 165110°
White
AE-WP03001-60604500Φ 240x127Φ 200110°
White
AE-WP03002-1010800Φ 110x65Φ 9550°
White
AE-WP03002-15151200Φ 135x72Φ 11050°
White
AE-WP03002-25252000Φ 160x75Φ 13050°
White
AE-WP03002-40403200Φ 185x107Φ 16550°
White
AE-WP03002-55554400Φ 240x127Φ 20050°
White
Wattage

10, 15, 25, 40, 55, 60
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

110, 50
Product Code

AE-WP03001-10, AE-WP03001-15, AE-WP03001-25, AE-WP03001-40, AE-WP03001-60, AE-WP03002-10, AE-WP03002-15, AE-WP03002-25, AE-WP03002-40, AE-WP03002-55
