Ingaz

$100.00

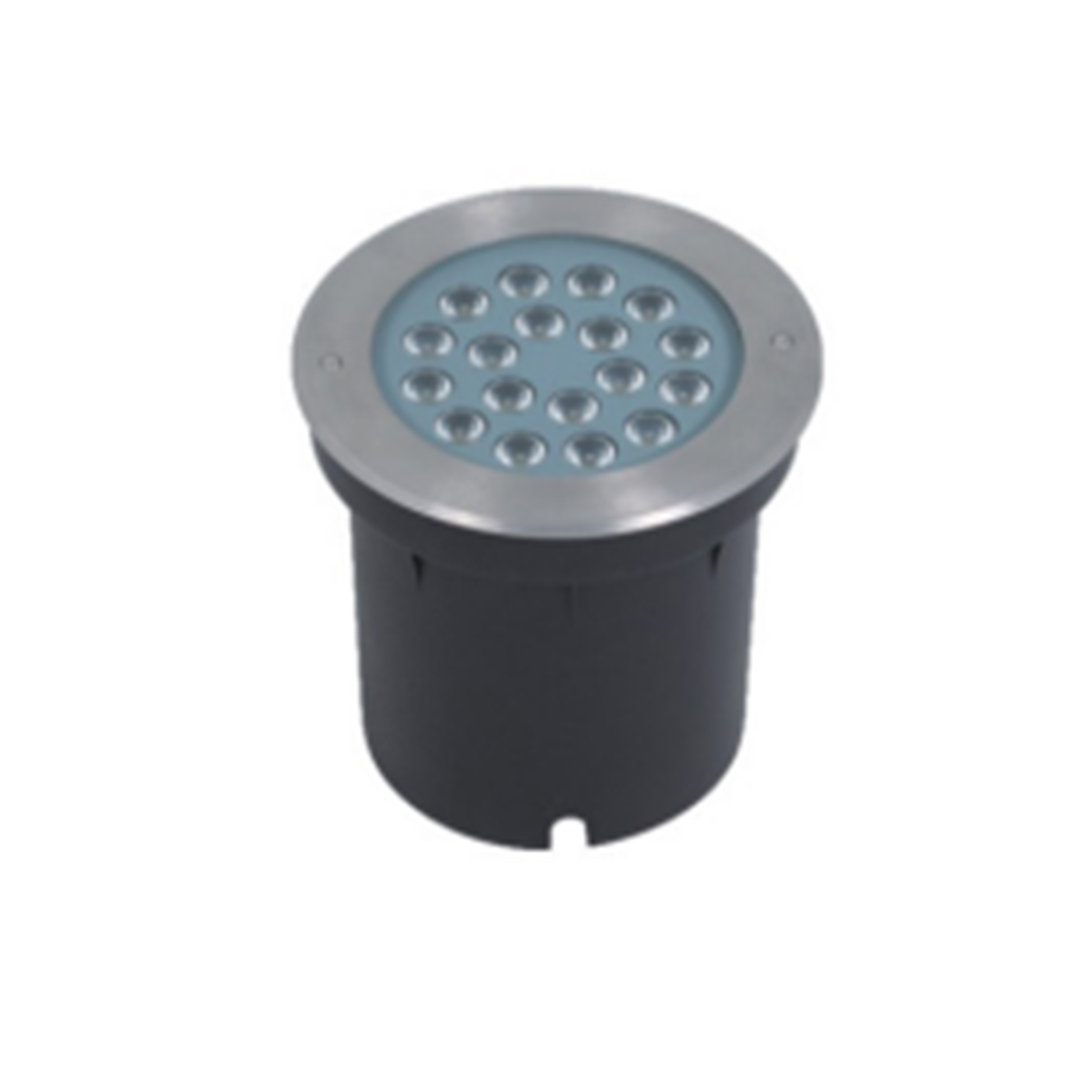

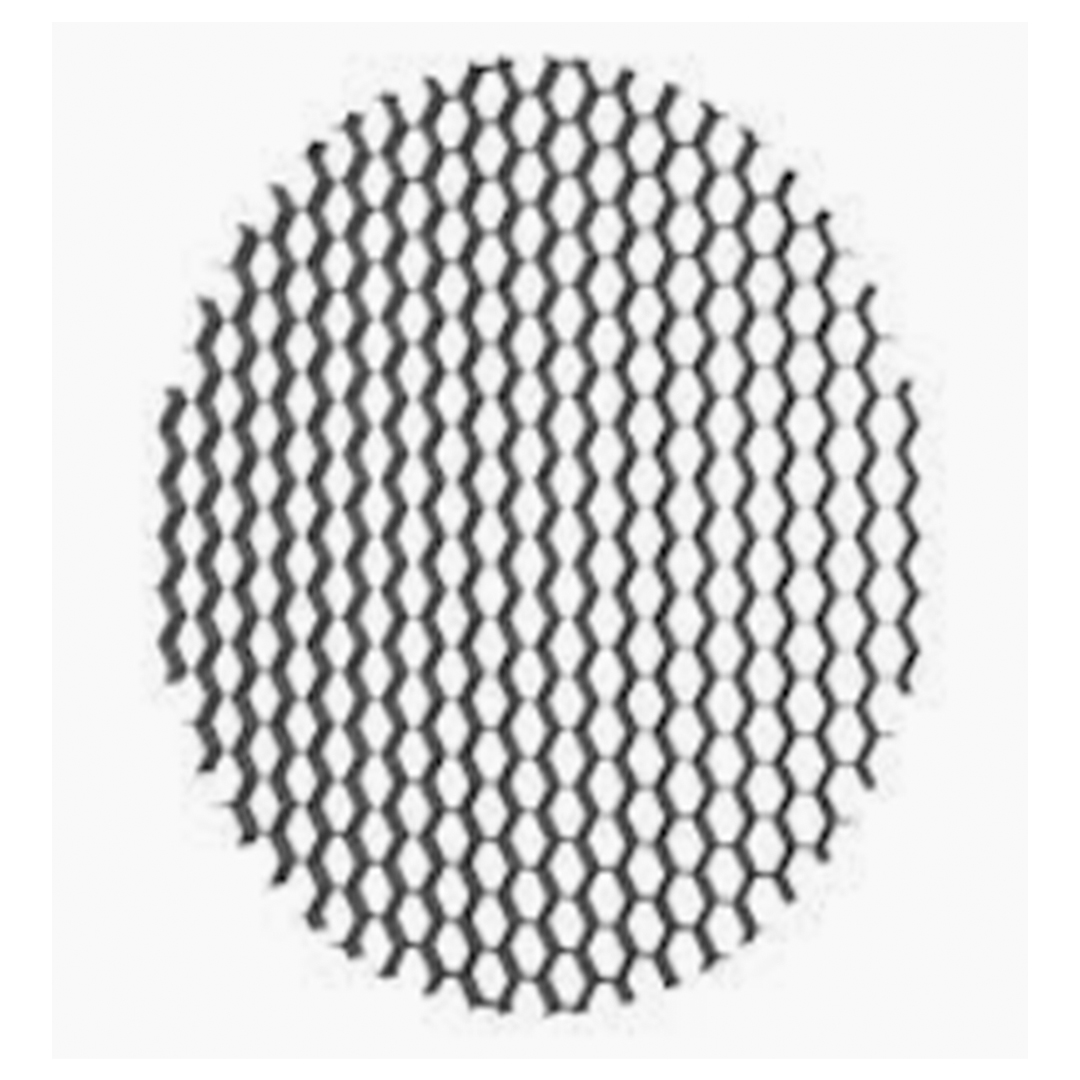

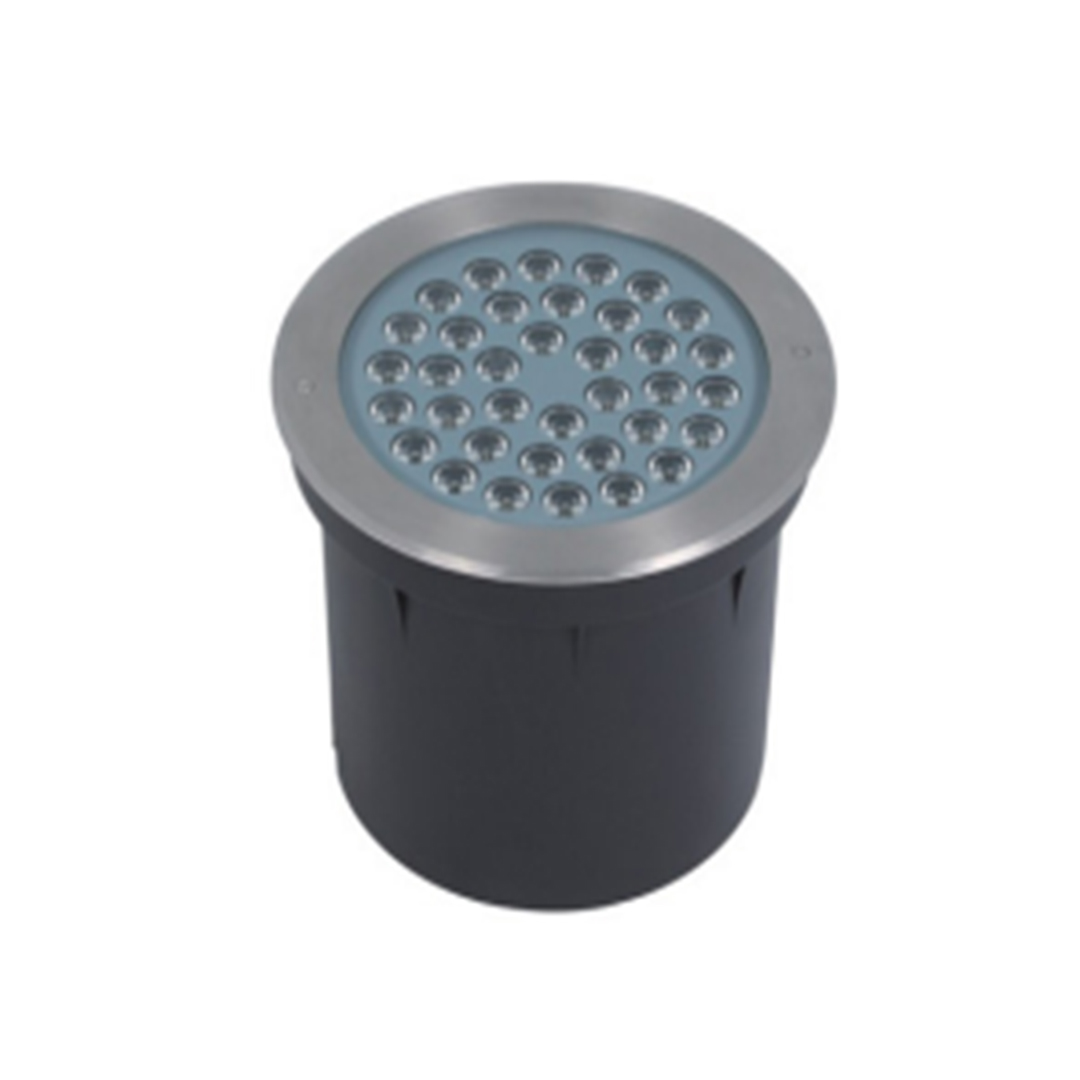

Ingaz inground uplight collection offers multiple options to choose from wattages ranging 6W – 60W in all standard symmetric beam options and as made available across 4 varied size options to adopt to site requirements within the standard color spectrum. Honeycomb louver options are available upon request Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP67
Material316 stainless steel cover
Beam Angle5°/10°/15°/25°/45°/60°/90°
CRI>80
LEDCOB*3, COB*9, COB*18, COB*36
Led DriverNot inlcuded
Voltage DC24V/AC220V
FinishSilver



Certifications



SKU: N/A Categories: ,

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-OTUD18005-66480Φ 100x97Φ 96x1155° / 10° / 15° / 25° / 45° / 60° / 90°2700K
3000K
4000K
6000K
Silver
AE-OTUD18005-99720Φ 160x107Φ 146x1375° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18005-18181440Φ 160x107Φ 146x1375° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18005-18B181440Φ 200x115Φ 187x1705° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18005-36362880Φ 200x115Φ 187x1705° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18005-36B362880Φ 250x125Φ 236x1945° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
AE-OTUD18005-60604800Φ 250x125Φ 236x1945° / 10° / 15° / 25° / 45° / 60° / 90°
Silver
Wattage

18, 6, 36, 60, 9
Color Temperature

2700, 3000, 4000, 6000
Beam Angle

15, 10, 25, 45, 5, 60, 90
Product Code

AE-OTUD18005-6, AE-OTUD18005-9, AE-OTUD18005-18, AE-OTUD18005-18B, AE-OTUD18005-36, AE-OTUD18005-36B, AE-OTUD18005-60
