$100.00

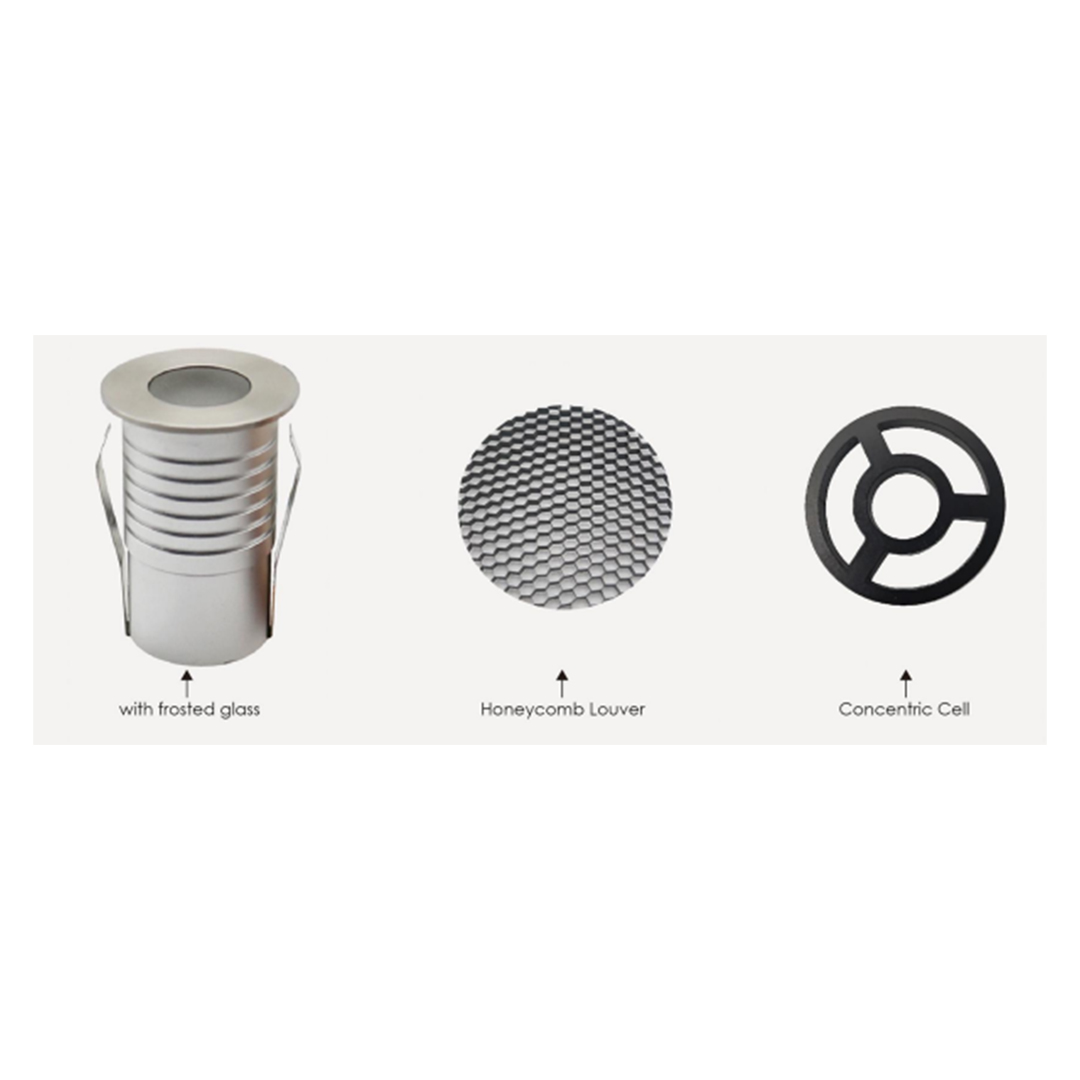

Ingroe inground uplight collection offers multiple options to choose from wattages ranging 1W – 3W in all standard symmetric beam options Honeycomb louver options are available upon request Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.
| IP Rate | IP67 |
| Material | 316 stainless steel cover with frosted glass |
| Beam Angle | 8°/15°/30°/45°/60° |
| CRI | >80 |
| LED | COB |
| Voltage | DC24V, AC100-240V |
| IK Rate | IK08 |
| Finish | silver |
| CODE | POWER (w) | LUMEN OUTPUT (±5%, lm) | DIMENSION (mm) | CUT OUT (mm) | BEAM ANGLE | CCT | FINISH |
|---|---|---|---|---|---|---|---|
| AE-OTUD17003-1 | 1 | 84 | Φ 50x68 | Φ 80x98 | 8° / 15° / 30° / 45° / 60° | 2700K 3000K 4000K 6000K | silver |
| AE-OTUD17003-2 | 3 | 182 | Φ 50x68 | Φ 80x98 | 8° / 15° / 30° / 45° / 60° | silver | |
| AE-OTUD17003-1AC | 1 | 84 | Φ 50x68 | Φ 80x98 | 8° / 15° / 30° / 45° / 60° | silver | |
| AE-OTUD17003-2AC | 3 | 182 | Φ 50x68 | Φ 80x98 | 8° / 15° / 30° / 45° / 60° | silver |
| Wattage | 3, 1 |
|---|---|
| Beam Angle | 15, 30, 45, 60, 8 |
| Color Temperature | 2700, 3000, 4000, 6000 |
| Product Code | AE-OTUD17003-1, AE-OTUD17003-2, AE-OTUD17003-1AC, AE-OTUD17003-2AC |
