Nnix
Nnix - Image 2

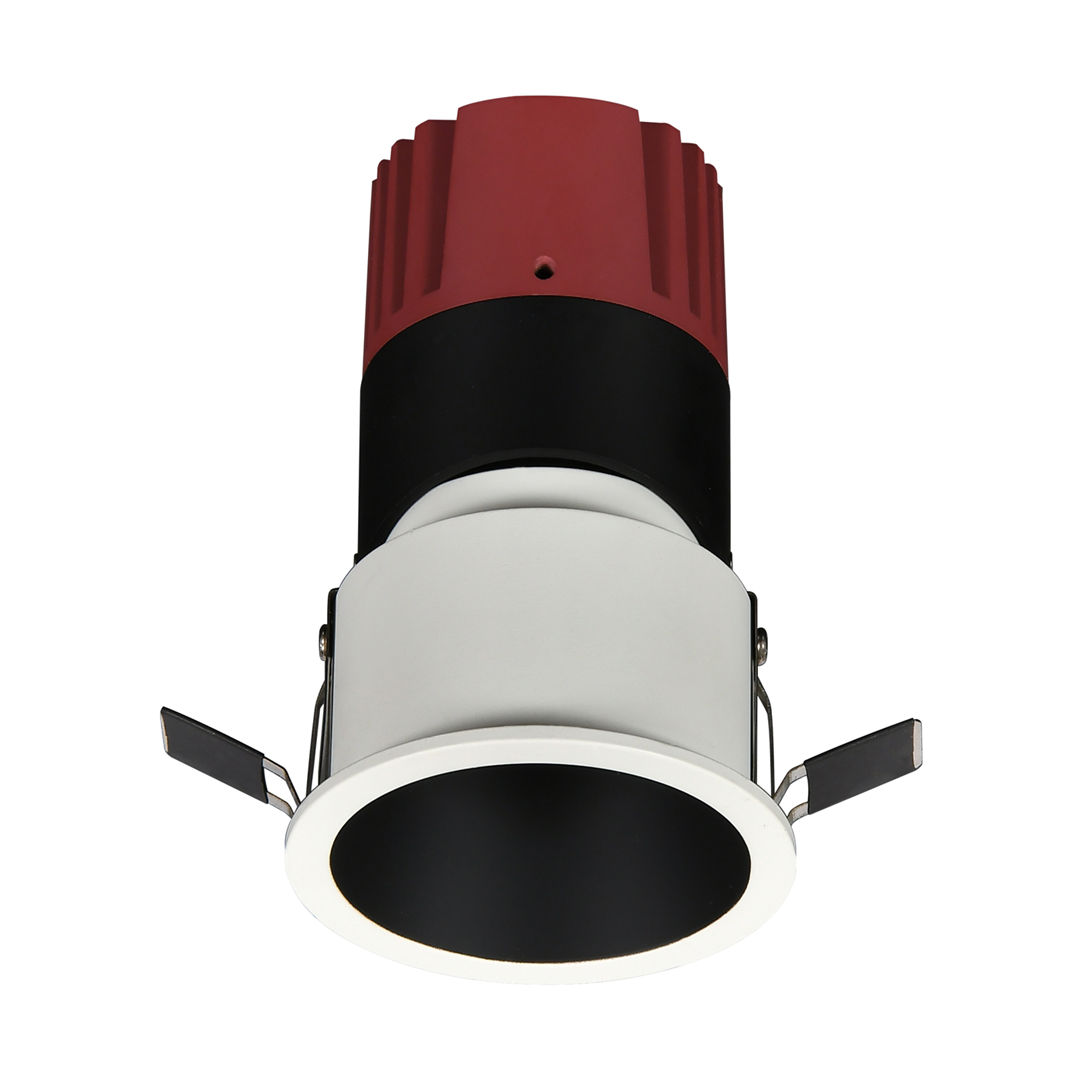

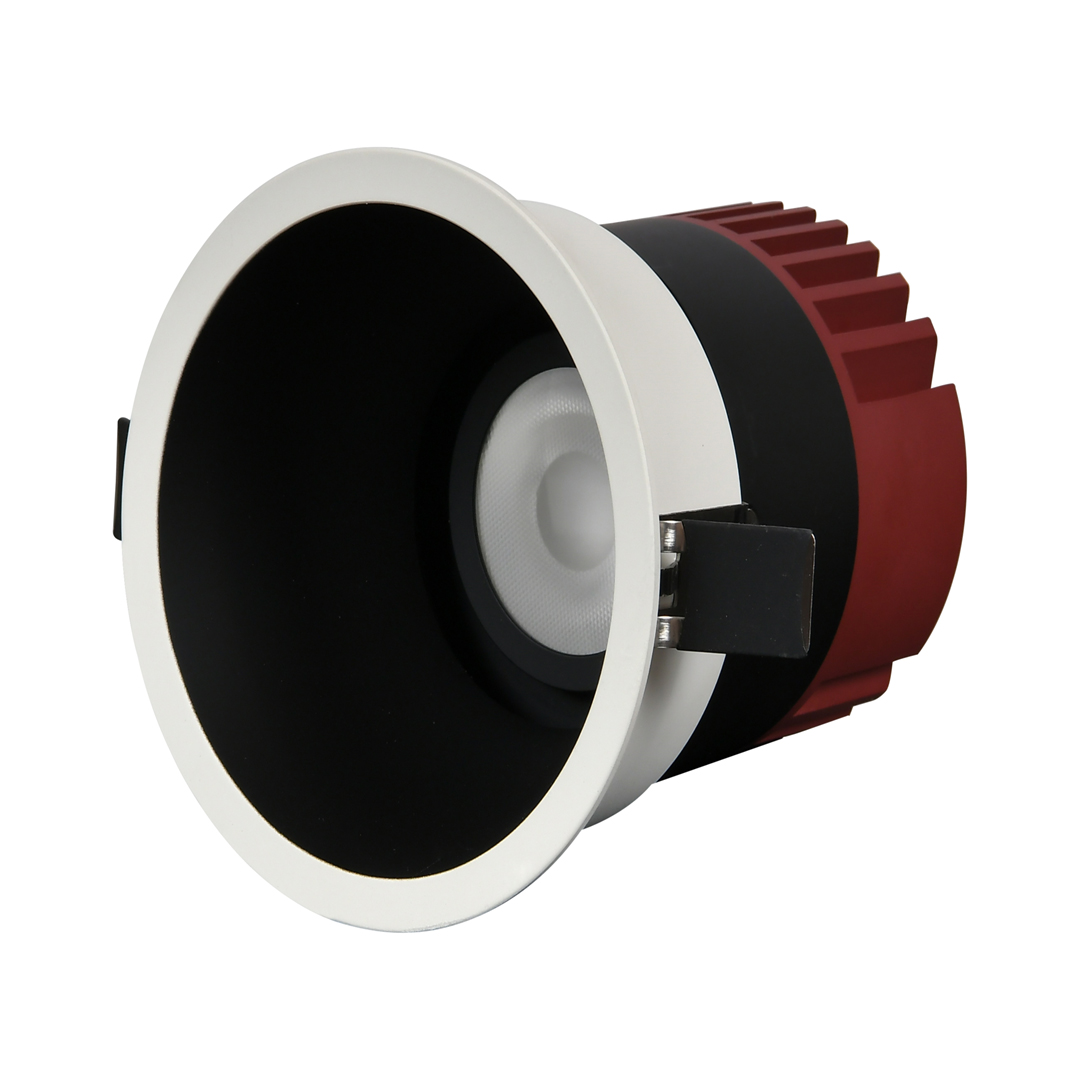

Nnix

$100.00

Nnix downlight collection offers multiple options to choose from wattages ranging between 3W – 15W in all standard symmetric beam options and as made available across 5 varied size options to adopt to site requirements within the standard color spectrum. Adjustable versions can also be offered on request. CCT of 5000K and 6000K are also available on request.Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle15°, 24°, 36°
CRI>80 , >90
LEDCOB
LED DriverLifud Eaglerise Aidimming Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishTrim: White
ReflectorWhite/Black Heat-sink, read



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-RS02040-33210Φ 60x85Φ 5515° / 24° / 36°2700K
3000K
4000K
5000K
6000K
Trim:White/Reflector:White/BlackHeat-sink,read
AE-RS02040-55350Φ 70x89Φ 6515° / 24° / 36°
Trim:White/Reflector:White/BlackHeat-sink,read
AE-RS02040-77490Φ 80x92Φ 7515° / 24° / 36°
Trim:White/Reflector:White/BlackHeat-sink,read
AE-RS02040-1010700Φ 100x106Φ 7515° / 24° / 36°
Trim:White/Reflector:White/BlackHeat-sink,read
AE-RS02040-15151050Φ 100x121Φ 9515° / 24° / 36°
Trim:White/Reflector:White/BlackHeat-sink,read
Wattage

3, 10, 15, 5, 7
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

15, 24, 36
Product Code

AE-RS02040-3, AE-RS02040-5, AE-RS02040-7, AE-RS02040-10, AE-RS02040-15
