$100.00

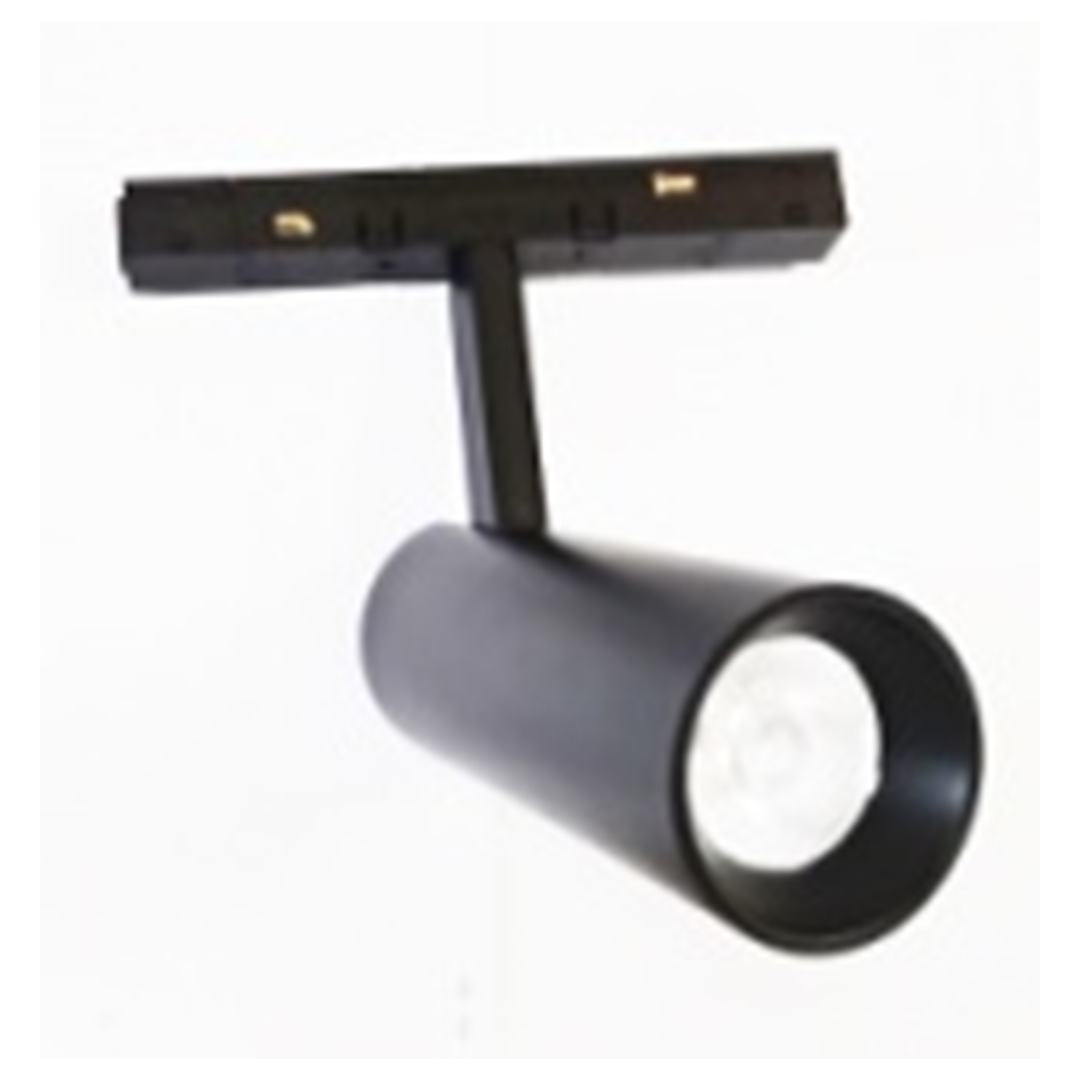

Projit Magnetic tracklight collection offers multiple options to choose from wattages ranging between 7W – 36W in all standard symmetric beam options and as made available in 5 varied size options to adopt to site requirements within the standard color spectrum. CCT of 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.
Track channels available in 1M, 2M & 3M lengths with accessories as per site requirements.
| IP Rate | IP20 |
| Beam Angle | 24°, 36° |
| CRI | >90 |
| LED | OSRAM |
| LED Driver | Customized |
| Input Voltage | DC48V |
| Finish | Black |
| CODE | POWER (w) | LUMEN OUTPUT (±5%, lm) | DIMENSION (mm) | CUT OUT (mm) | BEAM ANGLE | CCT | FINISH |
|---|---|---|---|---|---|---|---|
| AE-MT0400520-7 | 7 | 595 | Φ 40x90 | Φ / | 24° / 36° | 3000K 4000K 6000K | Black |
| AE-MT0400520-12 | 12 | 1020 | Φ 40x120 | Φ / | 24° / 36° | Black | |
| AE-MT0400520-18 | 18 | 1530 | Φ 50x135 | Φ / | 24° / 36° | Black | |
| AE-MT0400520-24 | 24 | 2040 | Φ 65x145 | Φ / | 24° / 36° | Black | |
| AE-MT0400520-36 | 36 | 3060 | Φ 68x145 | Φ / | 24° / 36° | Black |
| Wattage | 12, 18, 24, 36, 7 |
|---|---|
| Color Temperature | 3000, 4000, 6000 |
| Beam Angle | 24, 36 |
| Product Code | AE-MT0400520-7, AE-MT0400520-12, AE-MT0400520-18, AE-MT0400520-24, AE-MT0400520-36 |
