Available Options
| CODE | POWER (w) | LUMEN OUTPUT (±5%, lm) | DIMENSION (mm) | CUT OUT (mm) | BEAM ANGLE | CCT | FINISH |
|---|---|---|---|---|---|---|---|
| AE-PL043380B-120 | 40 | 3200 | Φ 1200x33x80 | Φ / | 120° | 2700K 3000K 4000K 5000K 6000K | - |
Rayin
$100.00

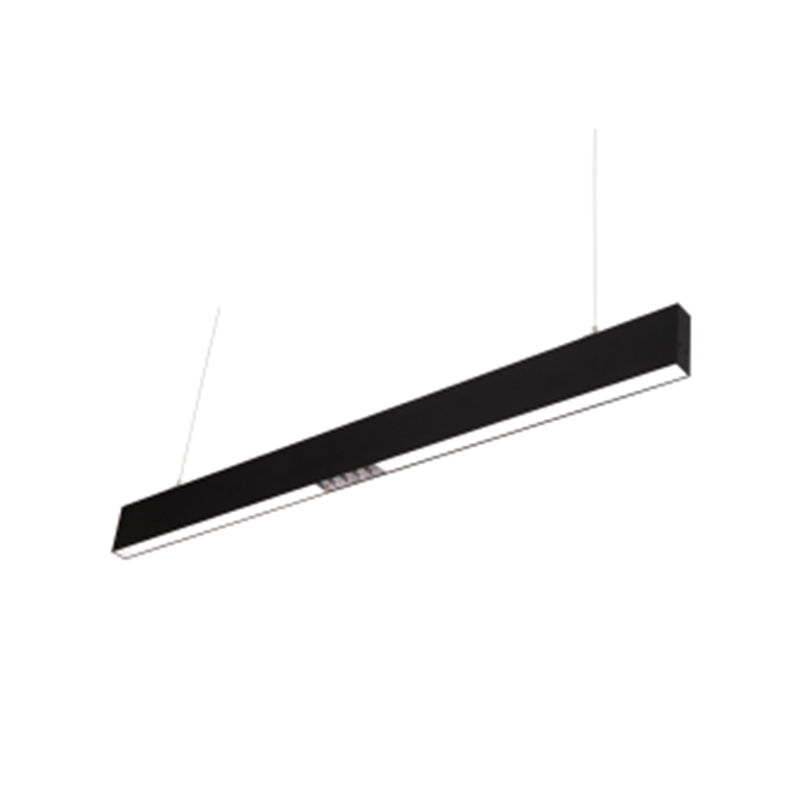

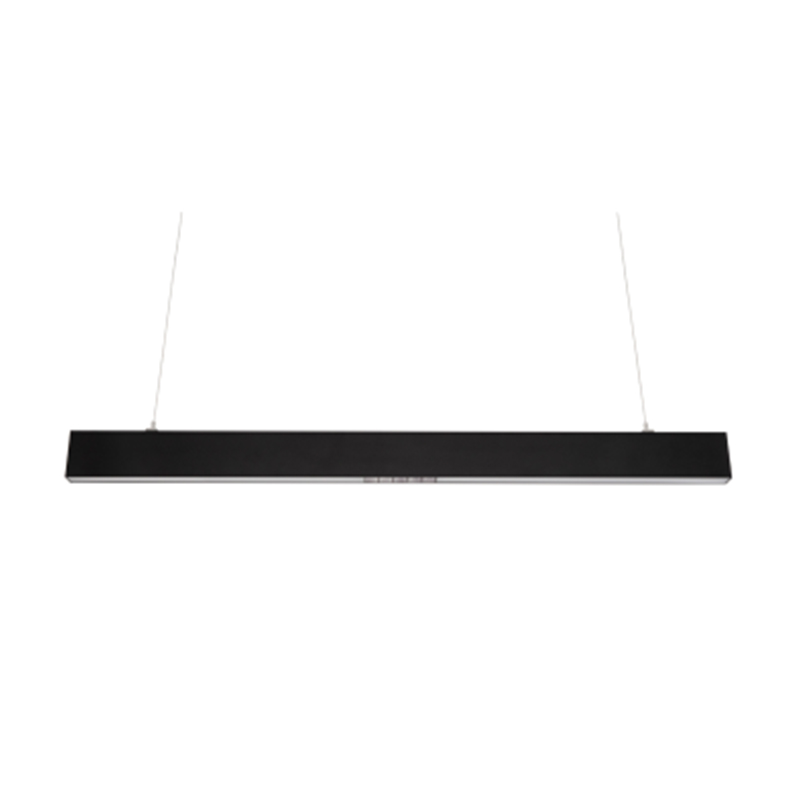

Rayin linear luminaire collection offers 40W and as made available across 5 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Ceiling mounted version also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.
Technical Data
| IP Rate | IP20 |
| CRI | >82 |
| LED | SMD |
| LED Driver | BOKE |
| Input Voltage | AC220V-240V 50-60Hz |
Certifications
| Wattage | 40 |
|---|---|
| Color Temperature | 2700, 3000, 4000, 5000, 6000 |
| Beam Angle | 120 |
| Product Code | AE-PL043380B-120 |
