Raylie

$100.00

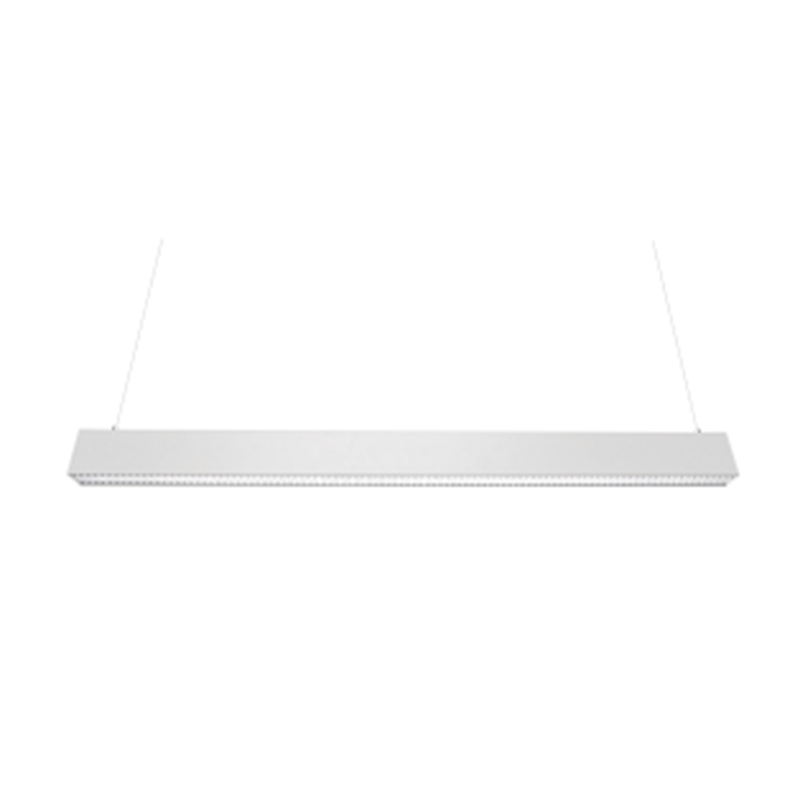

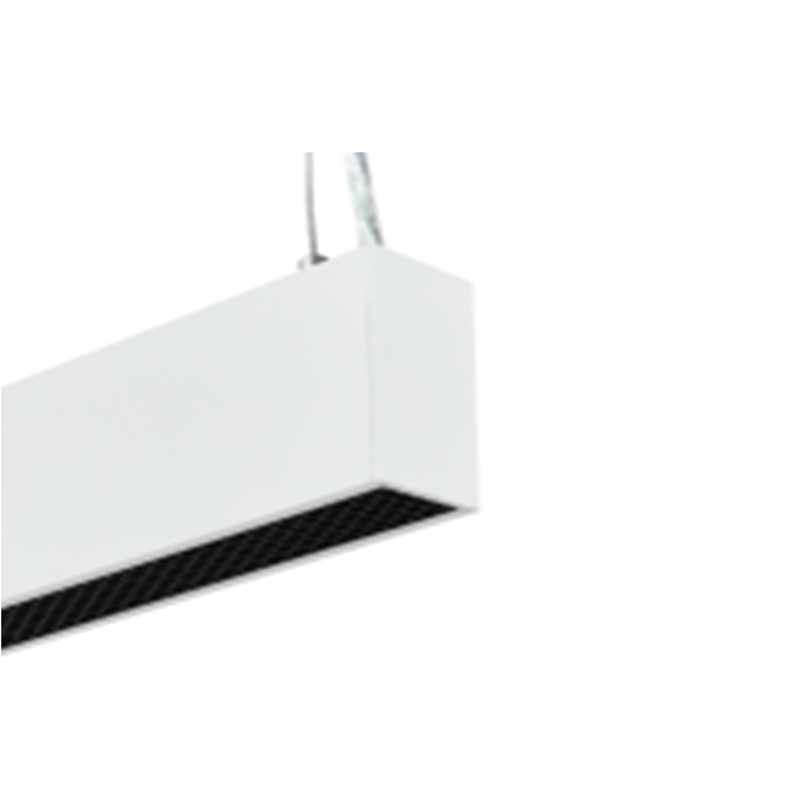

Raylie linear luminaire collection offers multiple options to choose from wattages ranging between 20W – 60W and as made available across 6 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Ceiling mounted version also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle110°
CRI>82
LEDSMD
LED DriverBOKE
Input VoltageAC220V-240V 50-60Hz

Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-PL044086A-60201400Φ 600x40x86Φ /110°2700K
3000K
4000K
5000K
6000K
White,Black,Customized
AE-PL044086A-90302100Φ 900x40x86Φ /110°
White,Black,Customized
AE-PL044086A-100302100Φ 1000x40x86Φ /110°
White,Black,Customized
AE-PL044086A-120402800Φ 1200x40x86Φ /110°
White,Black,Customized
AE-PL044086A-150503500Φ 1500x40x86Φ /110°
White,Black,Customized
AE-PL044086A-180604200Φ 1800x40x86Φ /110°
White,Black,Customized
Wattage

20, 30, 40, 50, 60
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

110
Product Code

AE-PL044086A-60, AE-PL044086A-90, AE-PL044086A-100, AE-PL044086A-120, AE-PL044086A-150, AE-PL044086A-180
