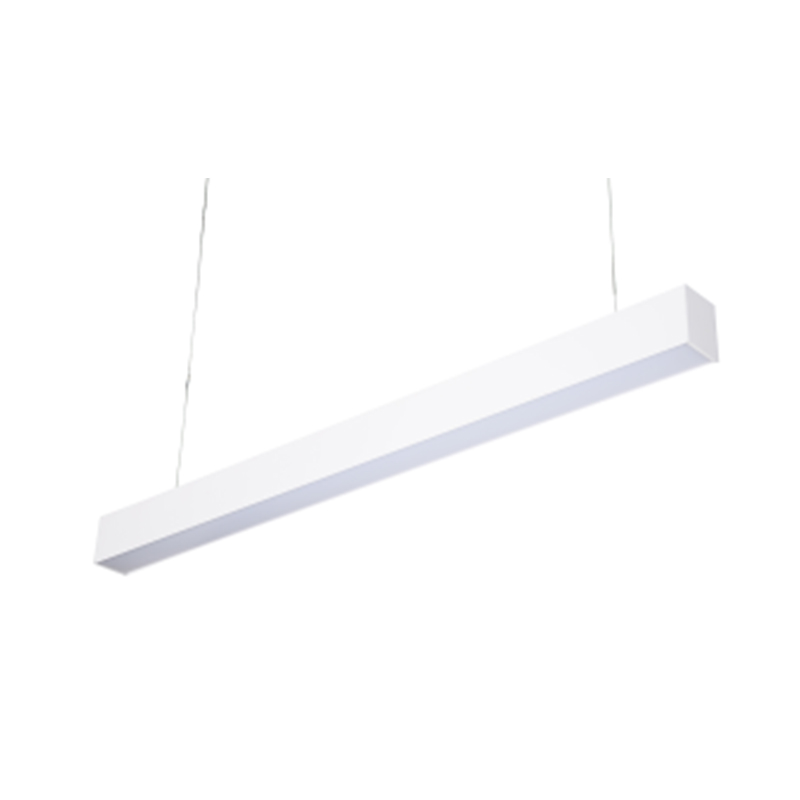

Raylin-72MM

Raylin-72MM

$100.00

Raylin Linear Profile collection offers multiple options to choose from wattages ranging between 20W – 60W and as made available across 6 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Ceiling mounted version also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle110°
CRI>82
LEDSMD
LED DriverBOKE
Input VoltageAC220V-240V 50-60Hz

Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-PL047290-60201800Φ 600x72x90Φ /110°2700K
3000K
4000K
5000K
6000K
White,Black,Customized
AE-PL047290-90302700Φ 900x72x90Φ /110°
White,Black,Customized
AE-PL047290-100302700Φ 1000x72x90Φ /110°
White,Black,Customized
AE-PL047290-120403600Φ 1200x72x90Φ /110°
White,Black,Customized
AE-PL047290-150504500Φ 1500x72x90Φ /110°
White,Black,Customized
AE-PL047290-180605400Φ 1800x72x90Φ /110°
White,Black,Customized
Wattage

20, 30, 40, 50, 60
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

110
Product Code

AE-PL047290-60, AE-PL047290-90, AE-PL047290-100, AE-PL047290-120, AE-PL047290-150, AE-PL047290-180
