Segbo(One)
Segbo(One) - Image 2

Segbo(One)

$100.00

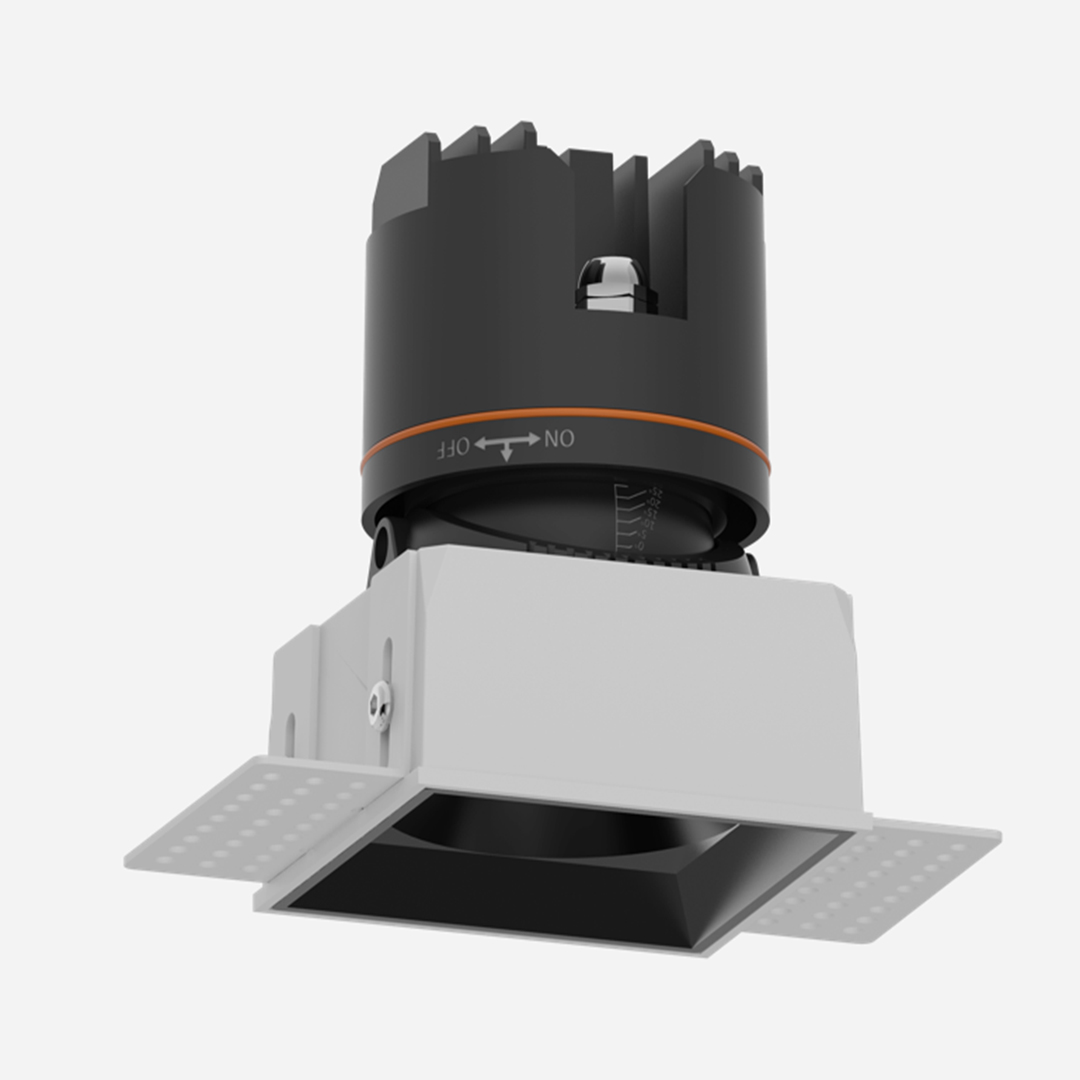

Segbo (One) trimless downlight collection offers multiple options to choose from wattages ranging between 7W – 20W in all standard symmetric beam options and as made available across 3 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle15°, 24°, 36° , 60°
CRI>80 , >90
LEDCOB
LED DriverLifud Eaglerise Aidimming and
Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishTrim:white
RefectorGlossy black, Glossy white, Matt black , Matt white



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-TR02010-77560Φ 54x54x90Φ 60x5515° / 24° / 36°2700K
3000K
4000K
5000K
6000K
Trim:white/Refector:Glossyblack,Glossywhite,Mattblack,Mattwhite
AE-TR02010-1212960Φ 74x74x97Φ 80x7515° / 24° / 36° / 60°
Trim:white/Refector:Glossyblack,Glossywhite,Mattblack,Mattwhite
AE-TR02010-20201600Φ 94x94x132Φ 100x9515° / 24° / 36°
Trim:white/Refector:Glossyblack,Glossywhite,Mattblack,Mattwhite
Wattage

12, 20, 7
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

15, 24, 36, 60
Product Code

AE-TR02010-7, AE-TR02010-12, AE-TR02010-20
