Segbo(Two)

Segbo(Two)

$100.00

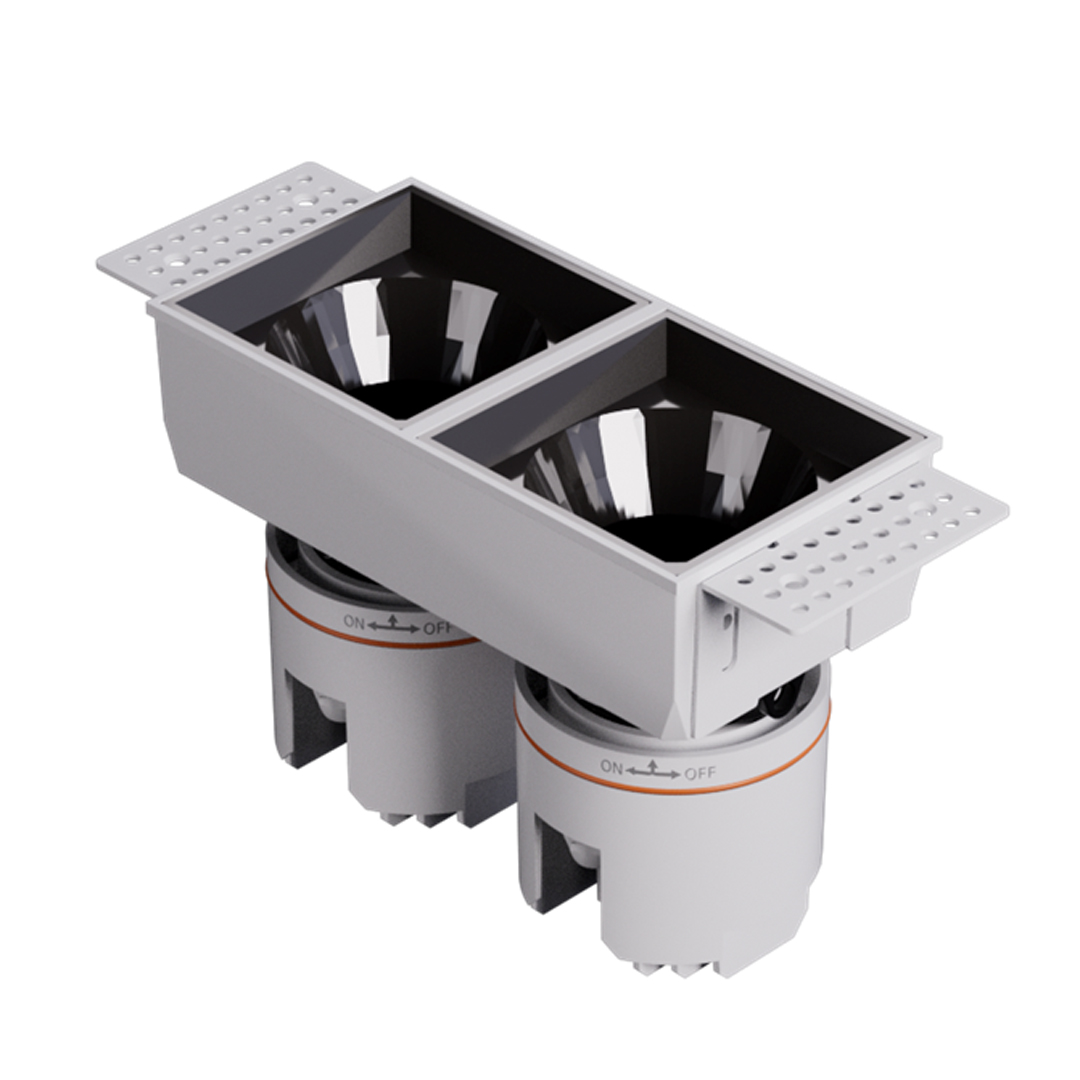

Segbo (Two) trimless downlight collection offers multiple options to choose from wattages ranging between 14W – 40W in all standard symmetric beam options and as made available across 3 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle15°, 24°, 36° , 60°
CRI>80 , >90
LEDCOB
LED DriverLifud Eaglerise Aidimming and
Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishTrim: White/Black
ReflectorGlossy black, Glossy silver, White, Black



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-TR02011-7X214980Φ 104x50x90Φ 110x5515° / 24° / 36°2700K
3000K
4000K
5000K
6000K
Trim:White/Black/Reflector:Glossyblack,Glossysilver,White,Black
AE-TR02011-12X2241680Φ 148x74x97Φ 150x7515° / 24° / 36° / 60°
Trim:White/Black/Reflector:Glossyblack,Glossysilver,White,Black
AE-TR02011-20X2402800Φ 189x94x132Φ 190x9515° / 24° / 36°
Trim:White/Black/Reflector:Glossyblack,Glossysilver,White,Black
Wattage

14, 24, 40
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

15, 24, 36, 60
Product Code

AE-TR02011-7X2, AE-TR02011-12X2, AE-TR02011-20X2
