Segko

$100.00

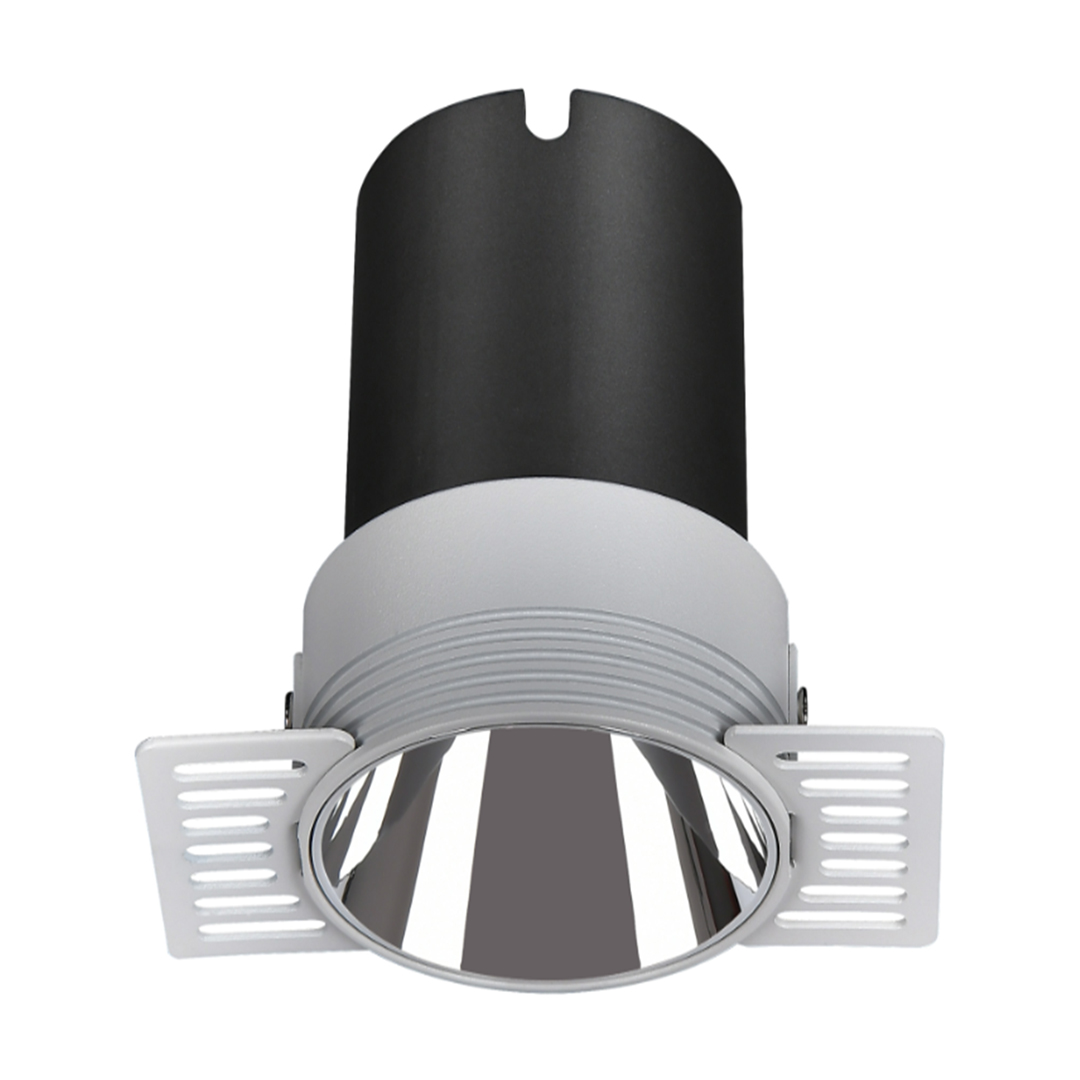

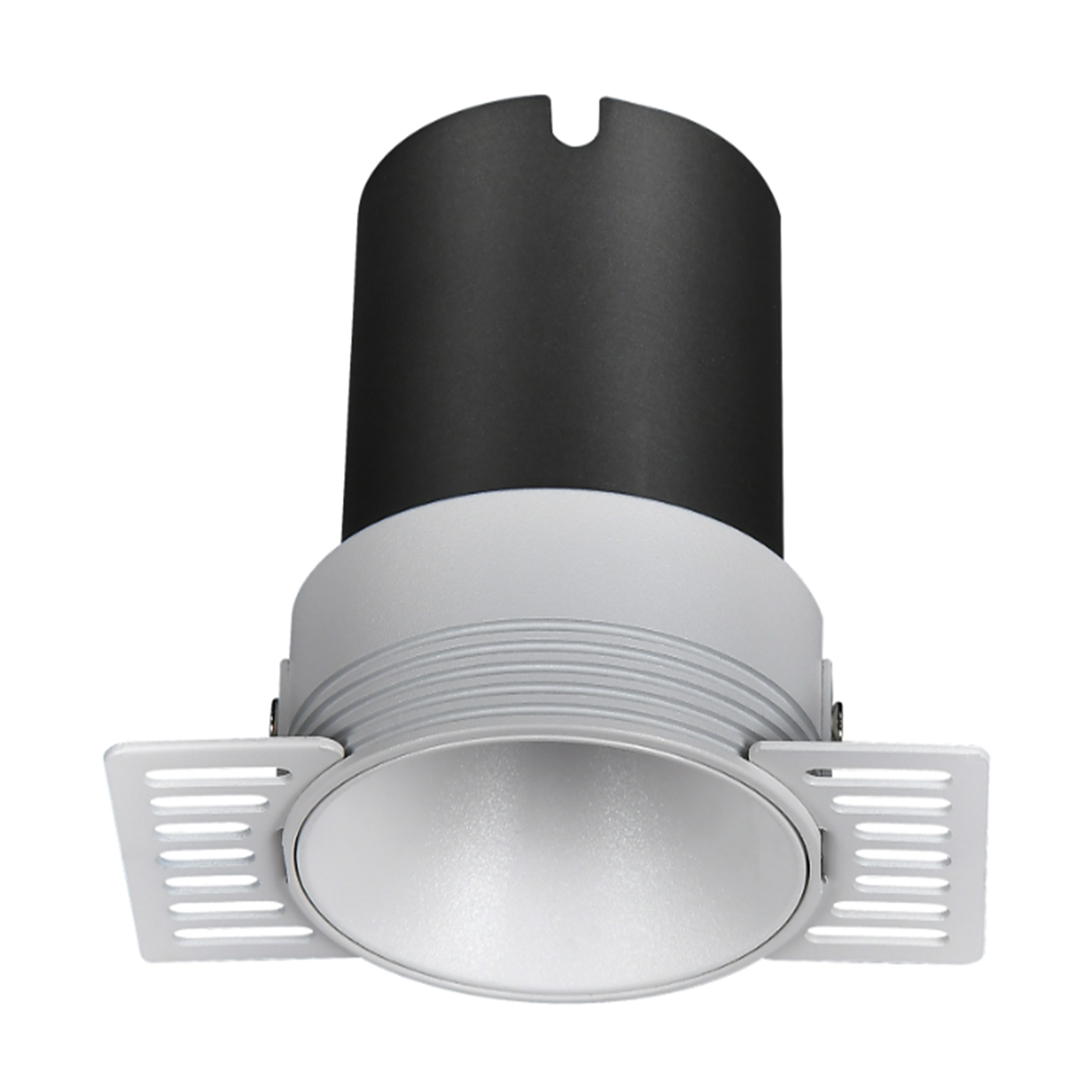

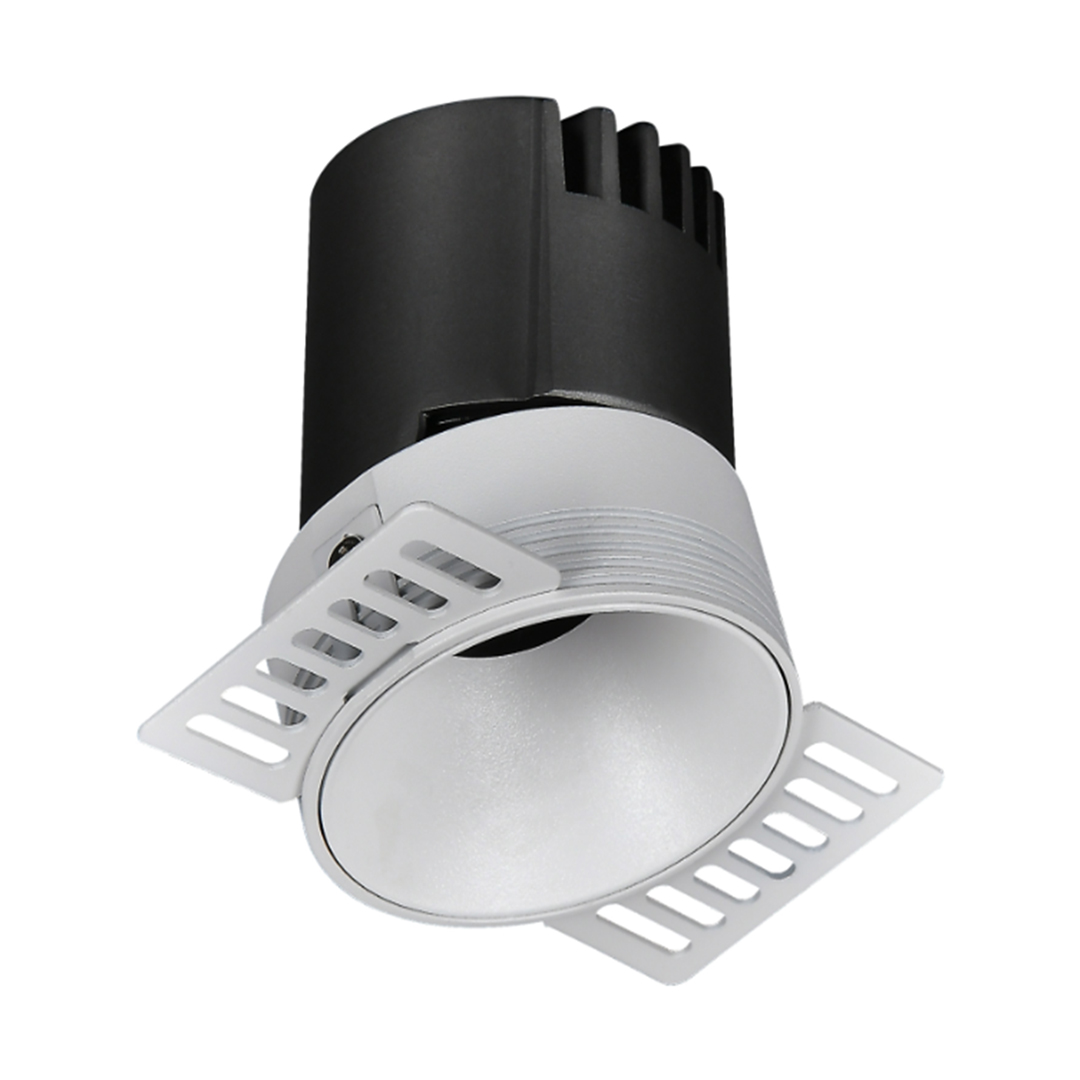

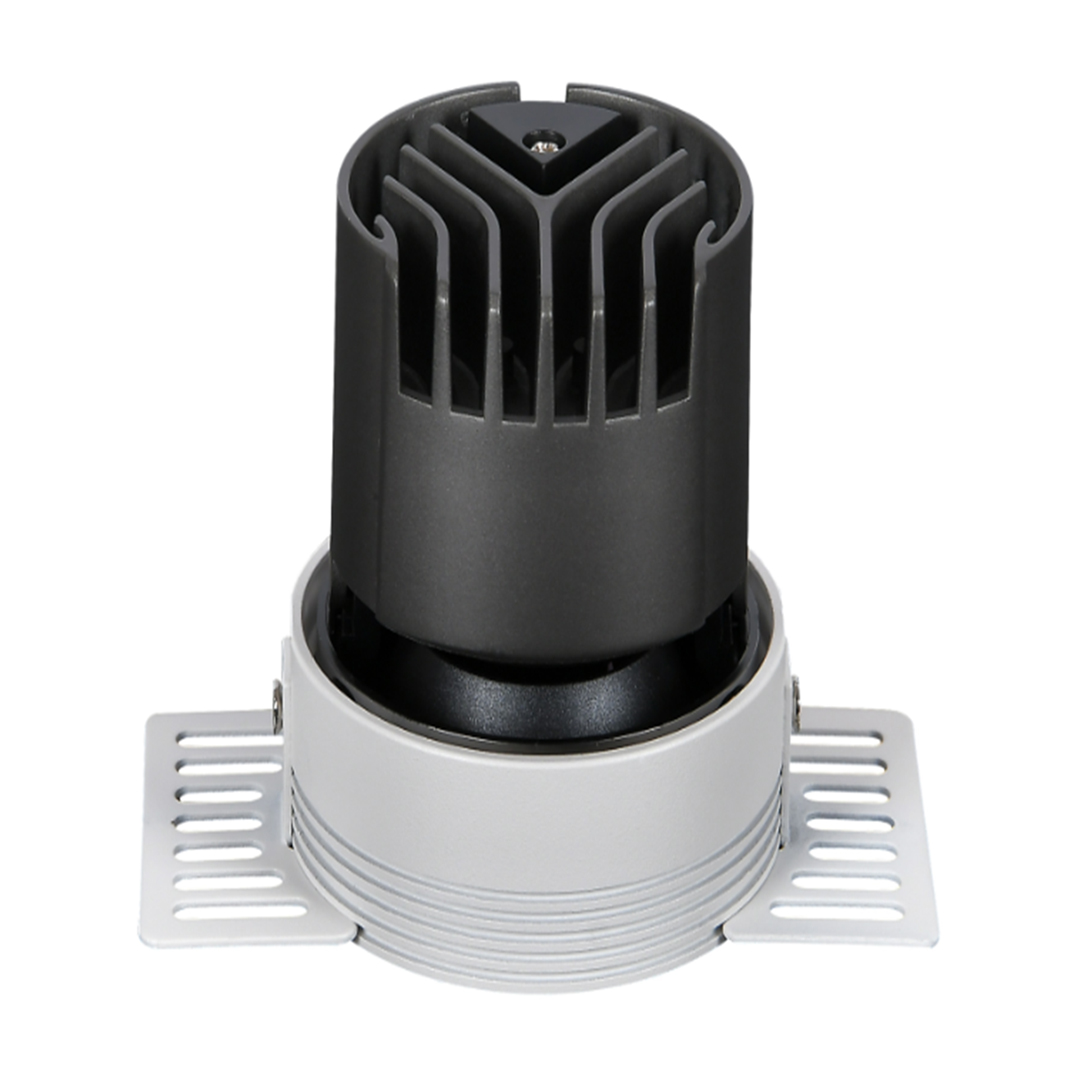

Segka trimless downlight collection offers multiple options to choose from wattages ranging between 8W – 20W in all standard symmetric beam options and as made available across 4 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle15°, 24°, 36°, 55°
CRI>80 , >90
LEDCOB
LED DriverLifud Eaglerise Aidimming and
Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishWhite, Black, Glossy black, Glossy silver, Rose golden



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-TR05007-88640Φ 91x53x80Φ 5515° / 24° / 36° / 55°2700K
3000K
4000K
5000K
6000K
White,Black,Glossyblack,Glossysilver,Rosegolden
AE-TR05007-1212960Φ 116x71x85Φ 7515° / 24° / 36° / 55°
White,Black,Glossyblack,Glossysilver,Rosegolden
AE-TR05007-15151200Φ 116x71x85Φ 7515° / 24° / 36° / 55°
White,Black,Glossyblack,Glossysilver,Rosegolden
AE-TR05007-20201600Φ 142x92x118Φ 9515° / 24° / 36° / 55°
White,Black,Glossyblack,Glossysilver,Rosegolden
Wattage

12, 15, 20, 8
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

15, 24, 36, 55
Product Code

AE-TR05007-8, AE-TR05007-12, AE-TR05007-15, AE-TR05007-20
