Segna

$100.00

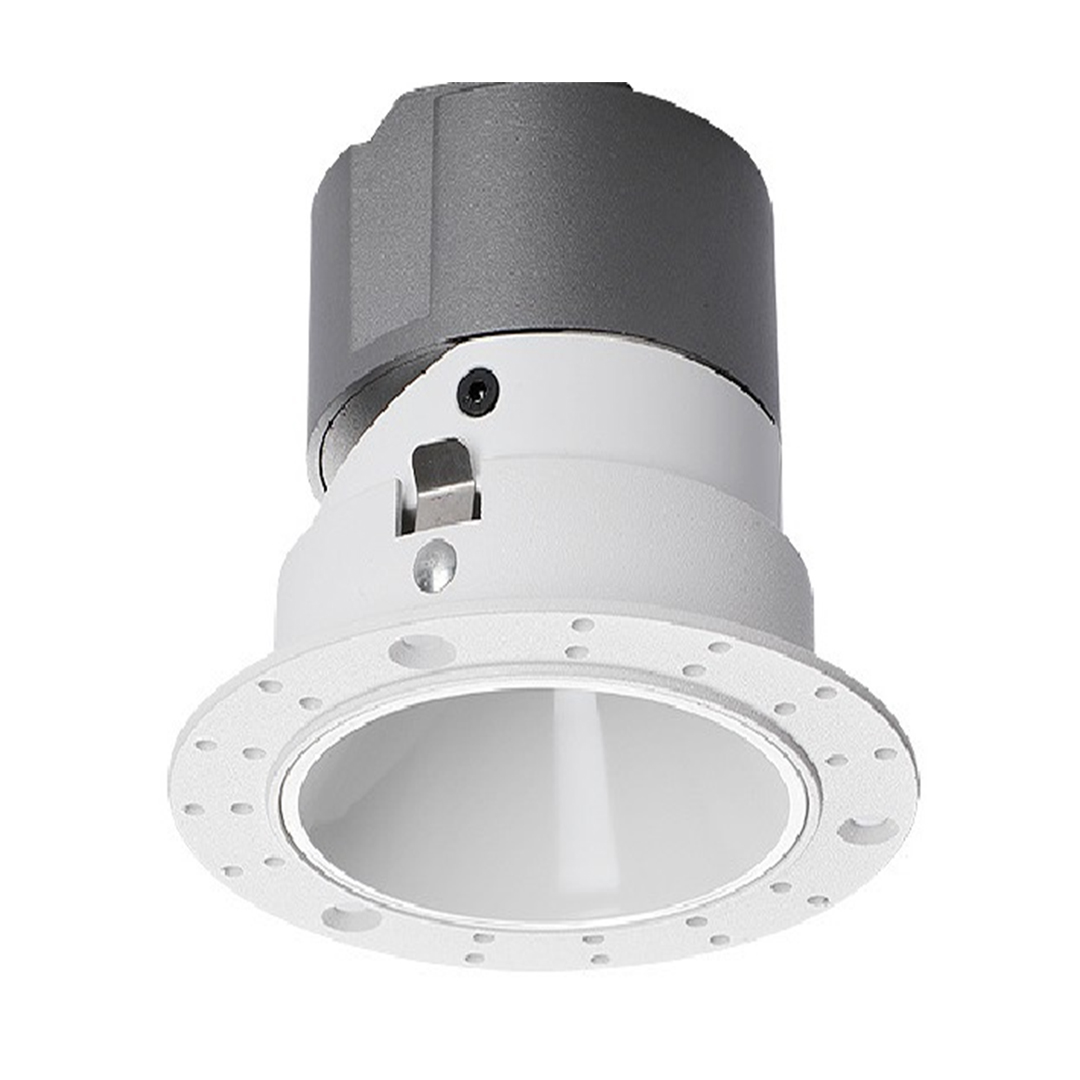

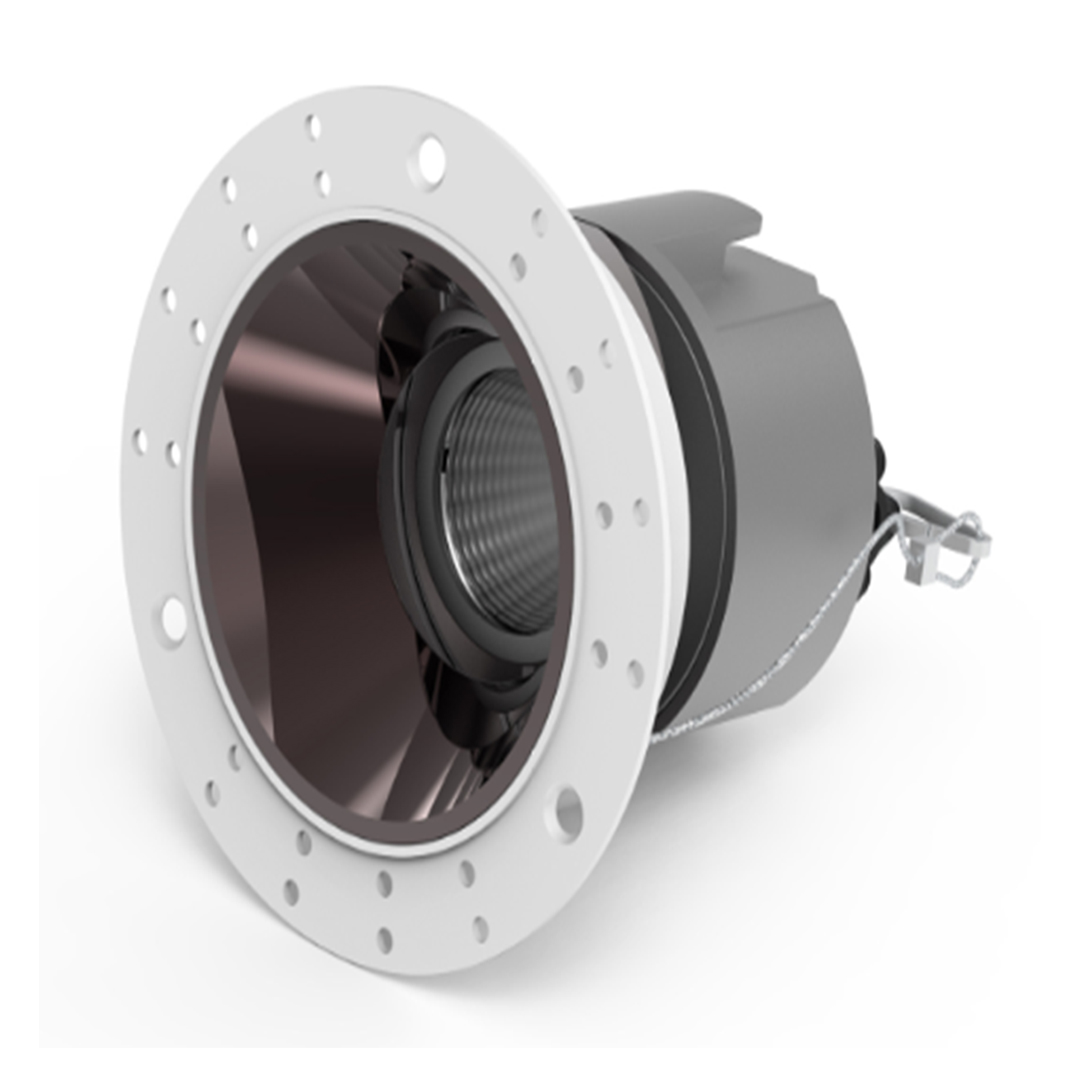

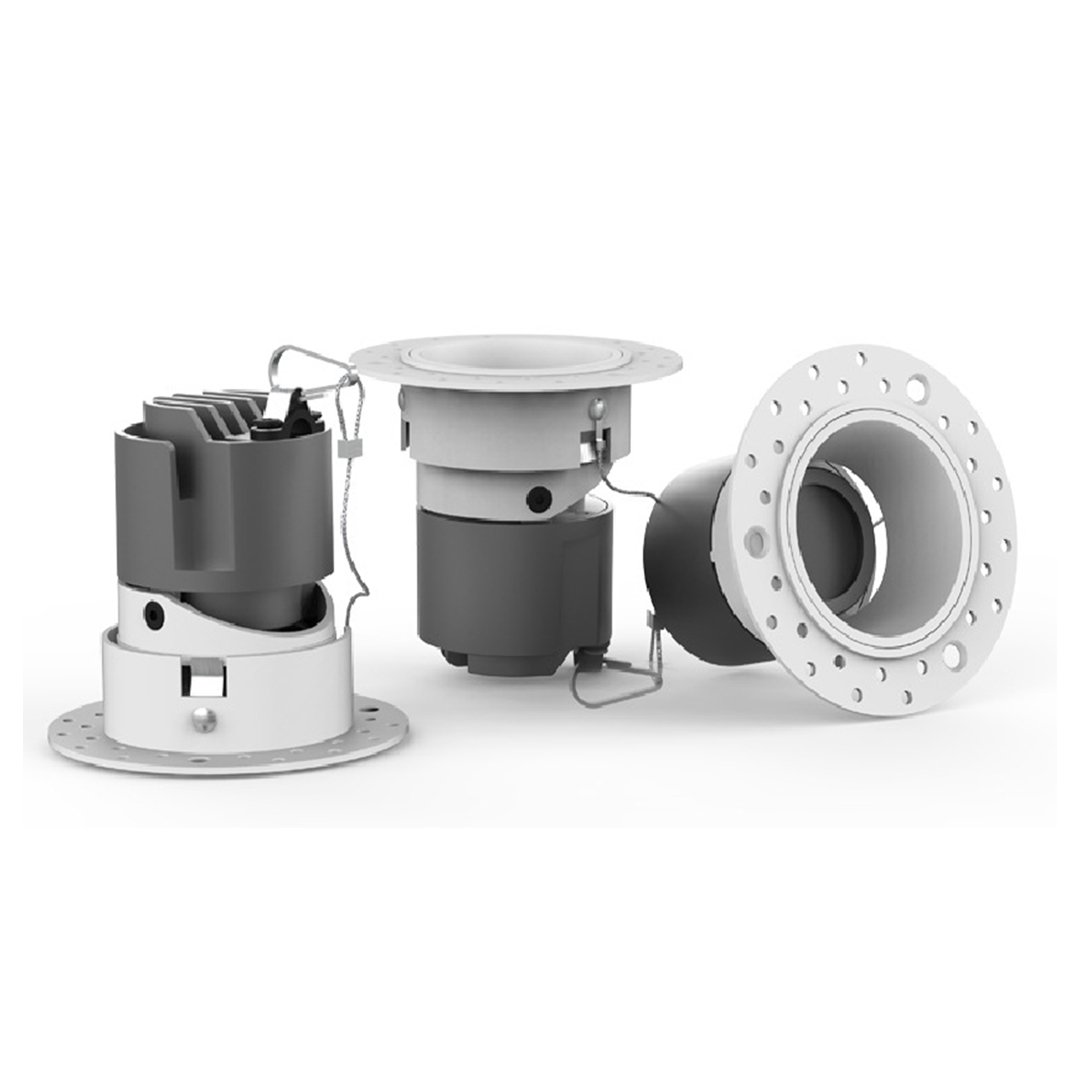

Orluxb trimless downlight collection offers multiple options to choose from wattages ranging between 21W – 60W in all standard symmetric beam options and as made available across 3 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20 , IP44
Beam Angle15°, 24°, 38°
CRI>80 , >90
LEDCOB
LED DriverLifud Eaglerise Aidimming Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishWhite, Black, Matt silver, Glossy silver, Glossy black, Rose golden, champagne golden



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-TR05002-77560Φ 80x70Φ 5515° / 24° / 38°2700K
3000K
4000K
5000K
6000K
White,Black,Mattsilver,Glossysilver,Glossyblack,Rosegolden,champagnegolden
AE-TR05002-88640Φ 100x76Φ 7515° / 24° / 38°
White,Black,Mattsilver,Glossysilver,Glossyblack,Rosegolden,champagnegolden
AE-TR05002-1212960Φ 100x83Φ 7515° / 24° / 38°
White,Black,Mattsilver,Glossysilver,Glossyblack,Rosegolden,champagnegolden
AE-TR05002-20201600Φ 100x100Φ 7515° / 24° / 38°
White,Black,Mattsilver,Glossysilver,Glossyblack,Rosegolden,champagnegolden
AE-TR05002-25252000Φ 125x107Φ 9515° / 24° / 38°
White,Black,Mattsilver,Glossysilver,Glossyblack,Rosegolden,champagnegolden
AE-TR05002-30302400Φ 125x123Φ 9515° / 24° / 38°
White,Black,Mattsilver,Glossysilver,Glossyblack,Rosegolden,champagnegolden
Wattage

12, 20, 25, 30, 7, 8
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

15, 24, 38
Product Code

AE-TR05002-7, AE-TR05002-8, AE-TR05002-12, AE-TR05002-20, AE-TR05002-25, AE-TR05002-30
