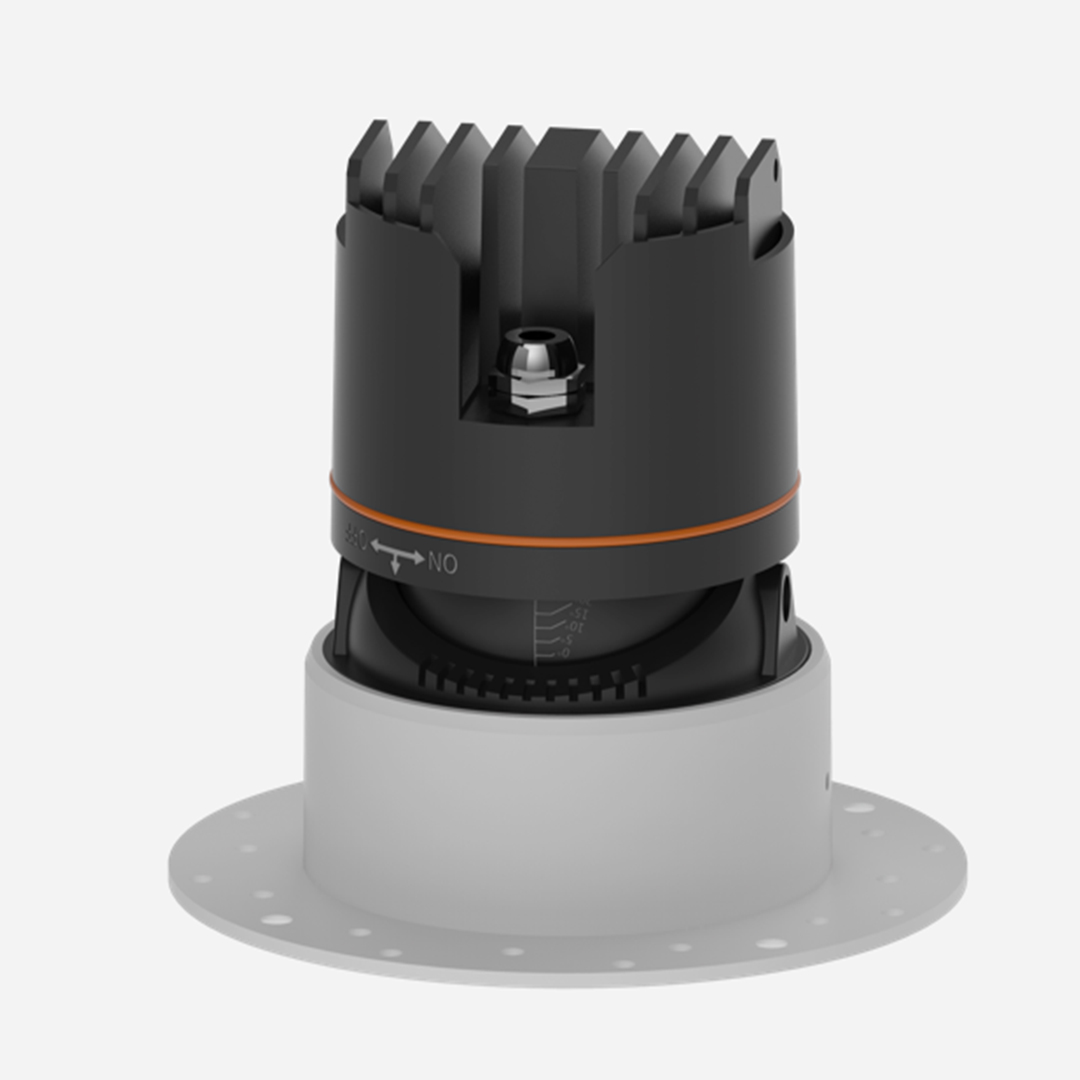

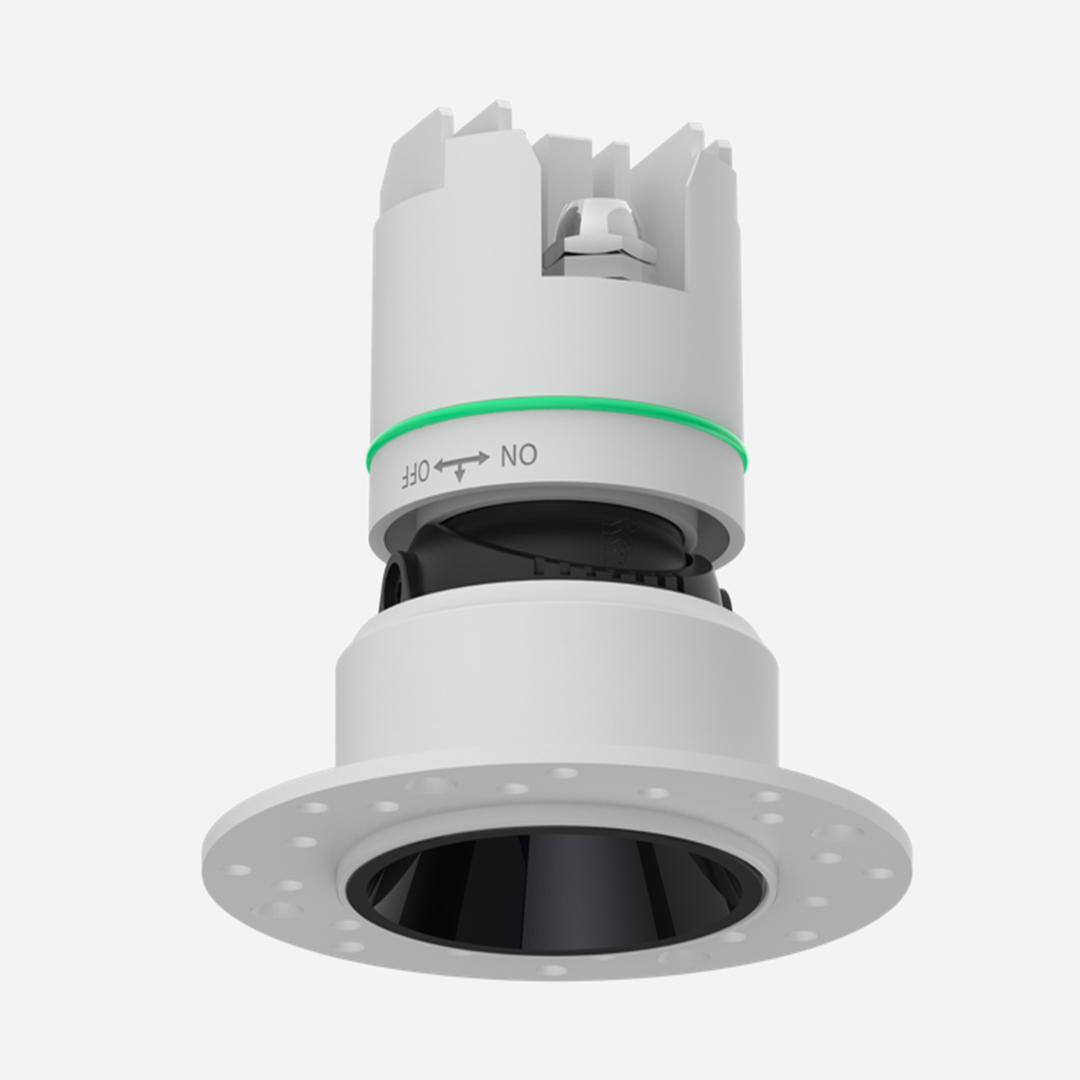

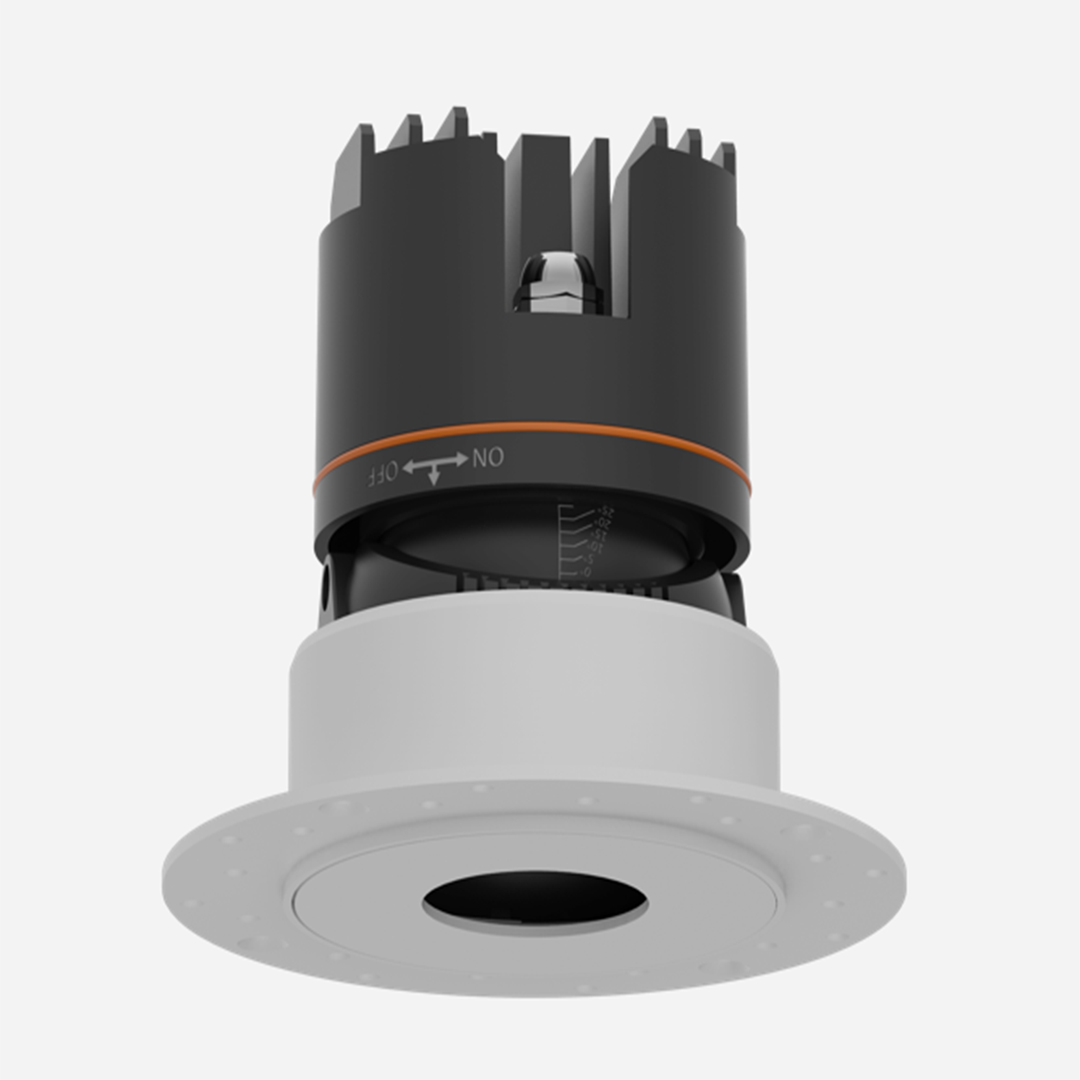

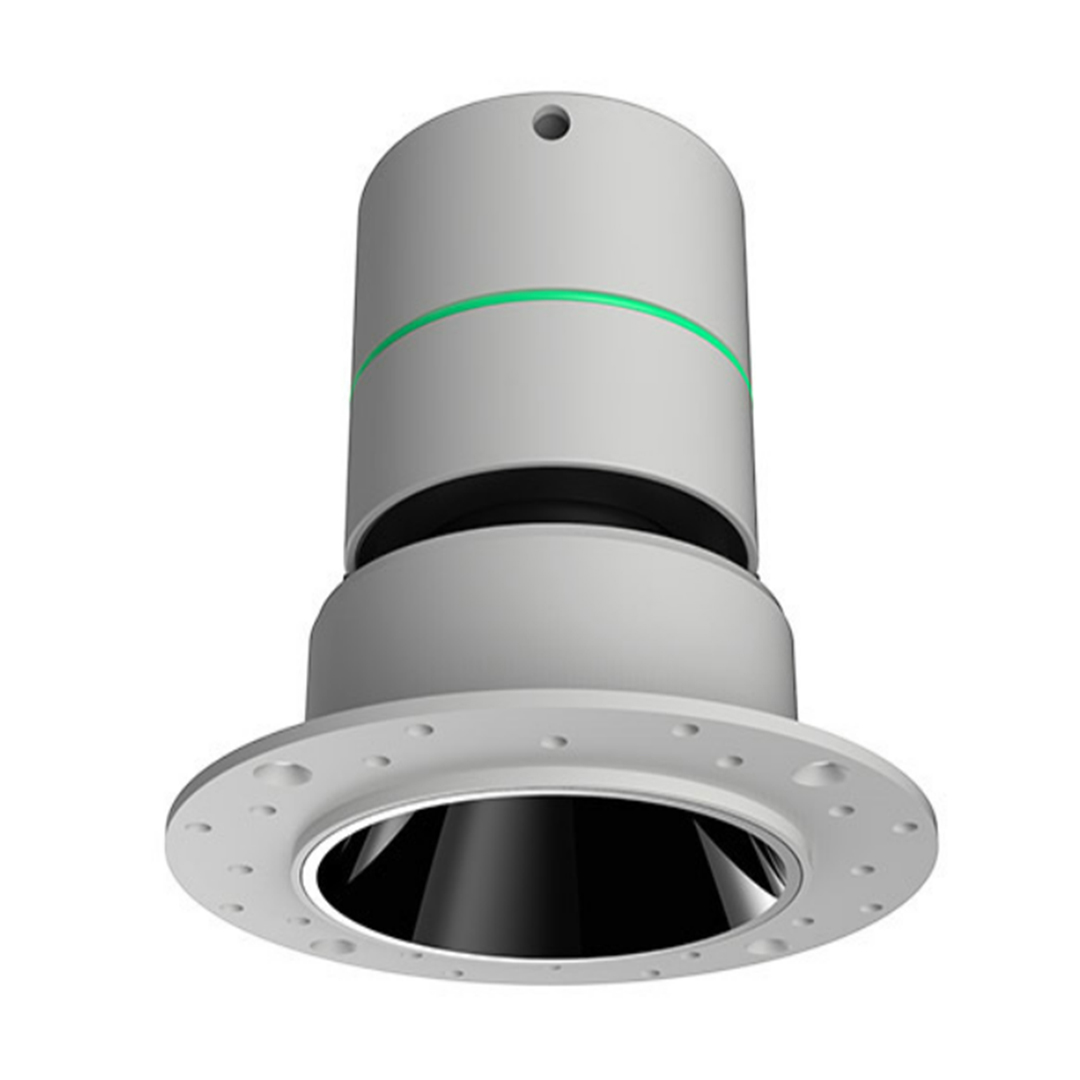

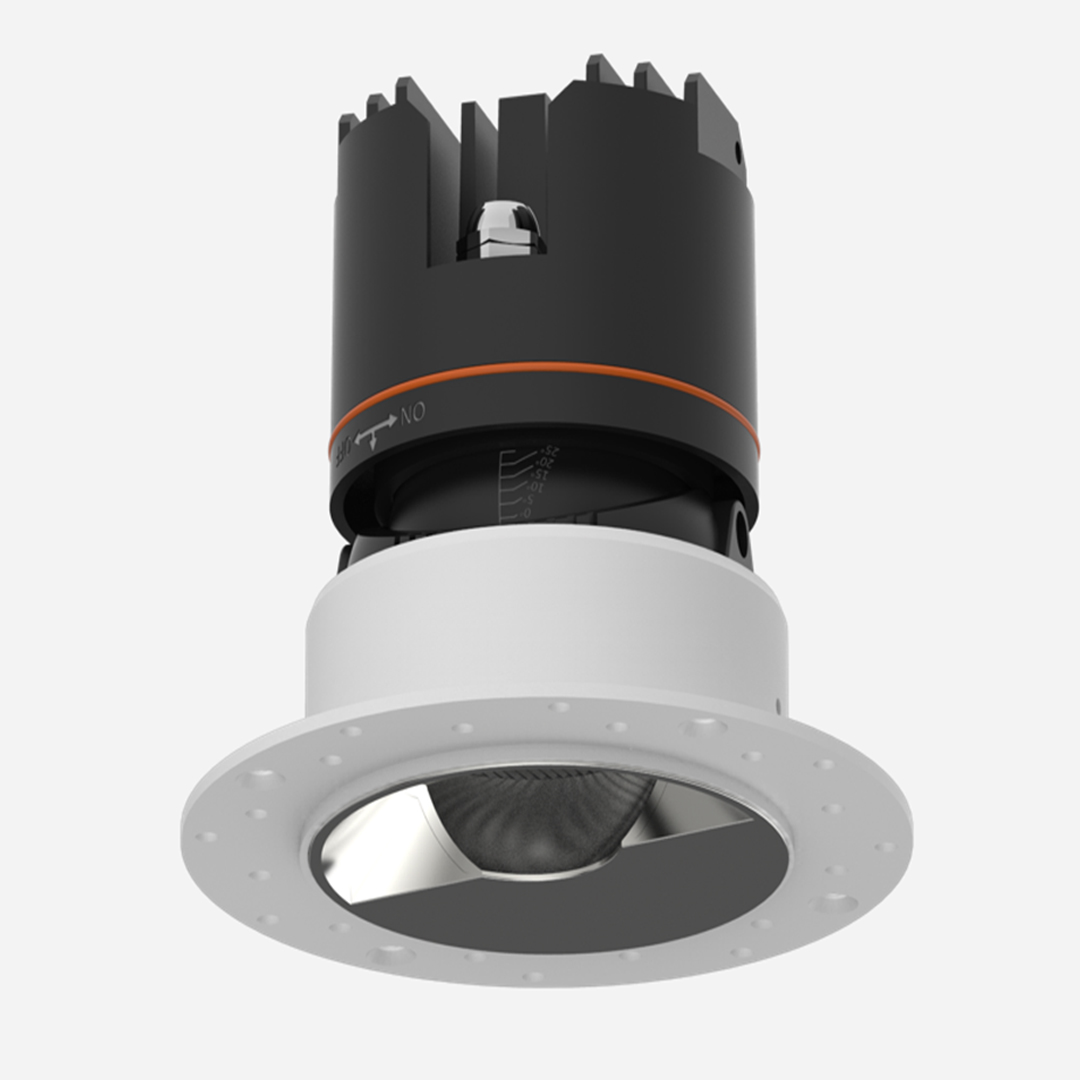

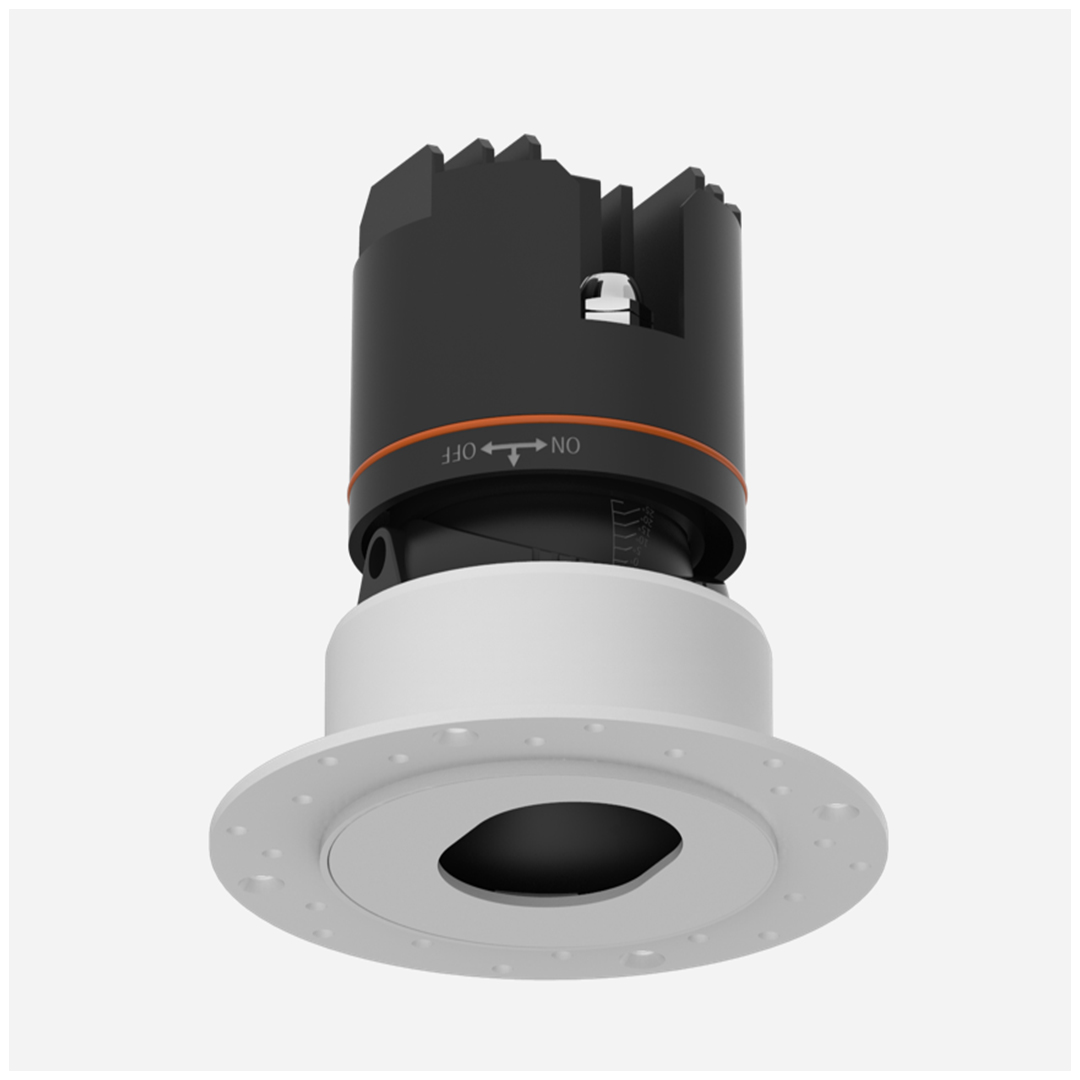

Segnz

$100.00

Segnz trimless downlight collection offers multiple options to choose from wattages ranging between 5W – 25W in all standard symmetric beam options and as made available across 6 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our articlecoding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle15°, 24°, 36°
CRI>80 , >90
LEDCOB
LED DriverLifud Eaglerise Aidimming and
Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishTrim:white
ReflectorGlossy black, Silver, White, Matt Black
Heatsinkwhite



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-TR02009-55400Φ 85x78Φ 5515° / 24° / 36°2700K
3000K
4000K
5000K
6000K
Reflector:Glossyblack,Silver,White,MattBlack/Trim:white/Heatsink:white
AE-TR02009-77560Φ 85x90Φ 5515° / 24° / 36°
Reflector:Glossyblack,Silver,White,MattBlack/Trim:white/Heatsink:white
AE-TR02009-7B7560Φ 108x82Φ 7515° / 24° / 36°
Reflector:Glossyblack,Silver,White,MattBlack/Trim:white/Heatsink:white
AE-TR02009-1212960Φ 108x97Φ 7515° / 24° / 36°
Reflector:Glossyblack,Silver,White,MattBlack/Trim:white/Heatsink:white
AE-TR02009-18181440Φ 131x114Φ 9515° / 24° / 36°
Reflector:Glossyblack,Silver,White,MattBlack/Trim:white/Heatsink:white
AE-TR02009-25252000Φ 131x132Φ 9515° / 24° / 36°
Reflector:Glossyblack,Silver,White,MattBlack/Trim:white/Heatsink:white
Wattage

12, 18, 25, 5, 7
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

15, 24, 36
Product Code

AE-TR02009-5, AE-TR02009-7, AE-TR02009-7B, AE-TR02009-12, AE-TR02009-18, AE-TR02009-25
