Stilo

$100.00

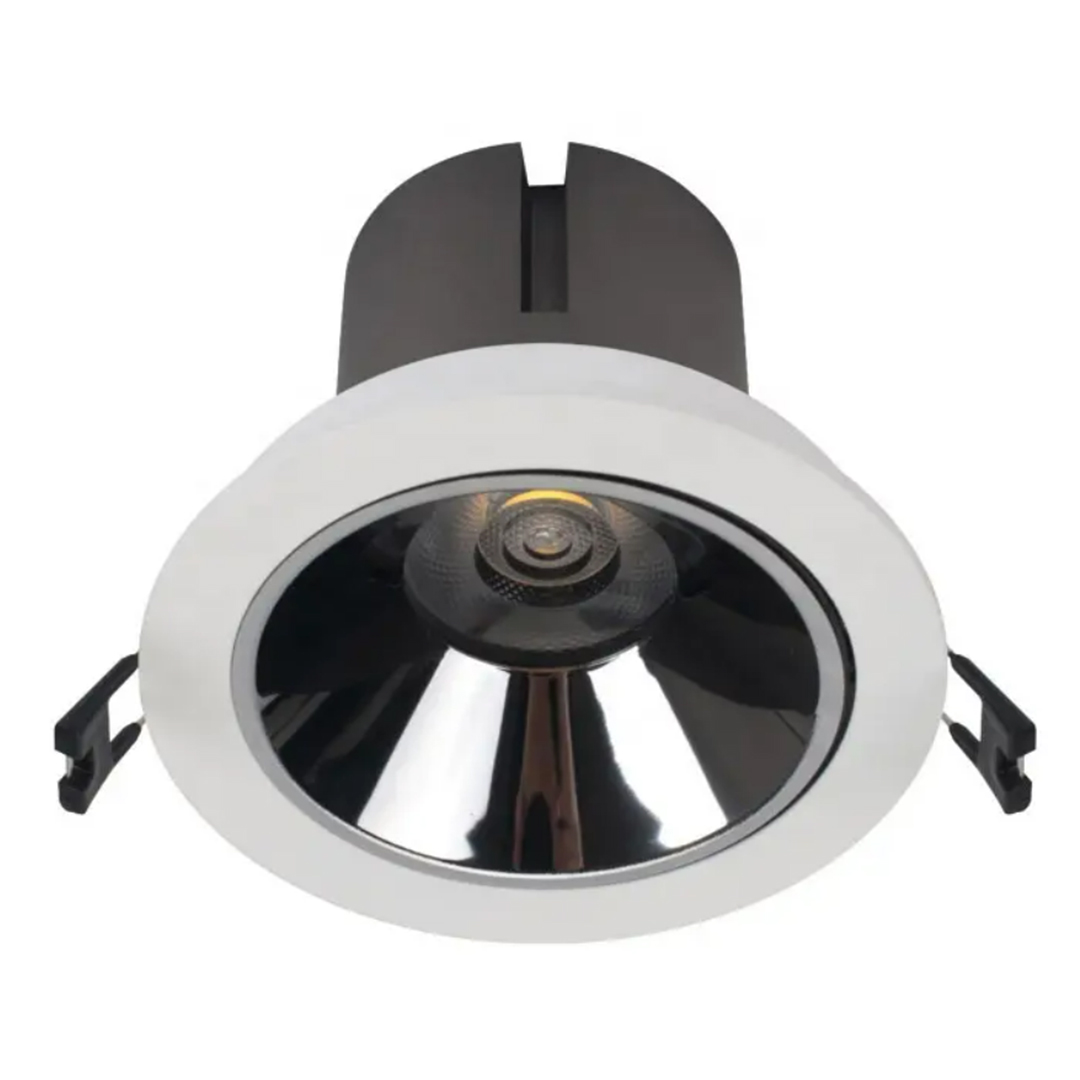

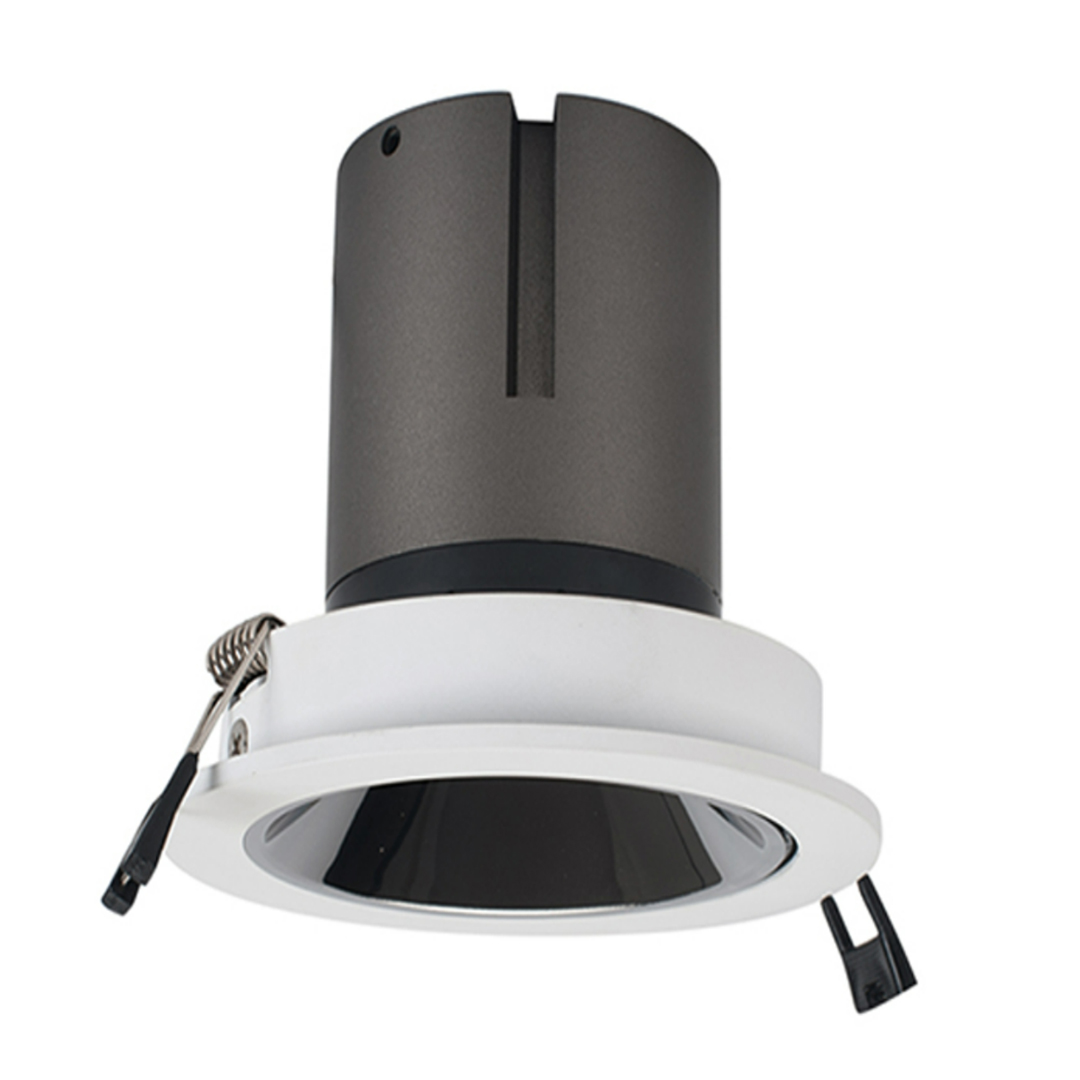

Stilo downlight collection offers multiple options to choose from wattages ranging between 9W – 40W in all standard symmetric beam options and as made available across 4 varied size options to adopt to site requirements within the standard color spectrum. Special IP44 versions can also be offered on request. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20, IP44
Beam Angle15°, 24°, 38°
CRI>80 , >90
LEDCOB
LED DriverLifud Eaglerise Aidimming Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishTrim:White/ Black

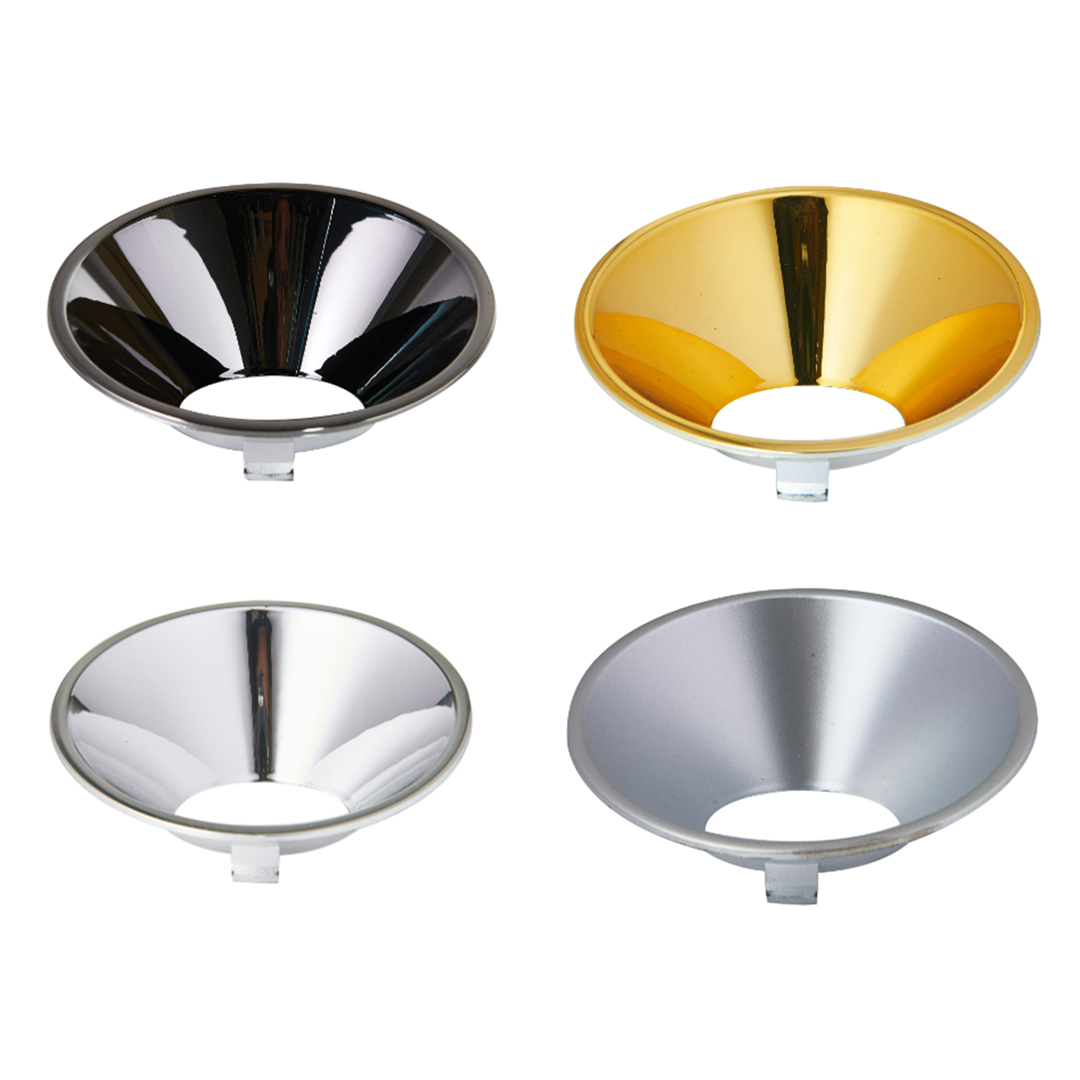

ReflectorBlack, Glossy silver, Golden, Matt Silver



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-RM01009-99720Φ 90x76Φ 7515° / 24° / 38°2700K
3000K
4000K
5000K
6000K
Trim:White/BlackReflector:BlackGlossysilverGoldenMattSilver
AE-RM01009-1212960Φ 90x76Φ 7515° / 24° / 38°
Trim:White/BlackReflector:BlackGlossysilverGoldenMattSilver
AE-RM01009-15151200Φ 115x100Φ 10015° / 24° / 38°
Trim:White/BlackReflector:BlackGlossysilverGoldenMattSilver
AE-RM01009-20201600Φ 115x100Φ 10015° / 24° / 38°
Trim:White/BlackReflector:BlackGlossysilverGoldenMattSilver
AE-RM01009-25252000Φ 140x112Φ 12515° / 24° / 38°
Trim:White/BlackReflector:BlackGlossysilverGoldenMattSilver
AE-RM01009-30302400Φ 140x112Φ 12515° / 24° / 3815° / 24° / 38°
Trim:White/BlackReflector:BlackGlossysilverGoldenMattSilver
AE-RM01009-35352800Φ 165x132Φ 15015° / 24° / 38°
Trim:White/BlackReflector:BlackGlossysilverGoldenMattSilver
AE-RM01009-40403200Φ 165x132Φ 15015° / 24° / 38°
Trim:White/BlackReflector:BlackGlossysilverGoldenMattSilver
Wattage

12, 15, 20, 25, 30, 35, 40, 9
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

15, 24, 38
Product Code

AE-RM01009-9, AE-RM01009-12, AE-RM01009-15, AE-RM01009-20, AE-RM01009-25, AE-RM01009-30, AE-RM01009-35, AE-RM01009-40
