$100.00

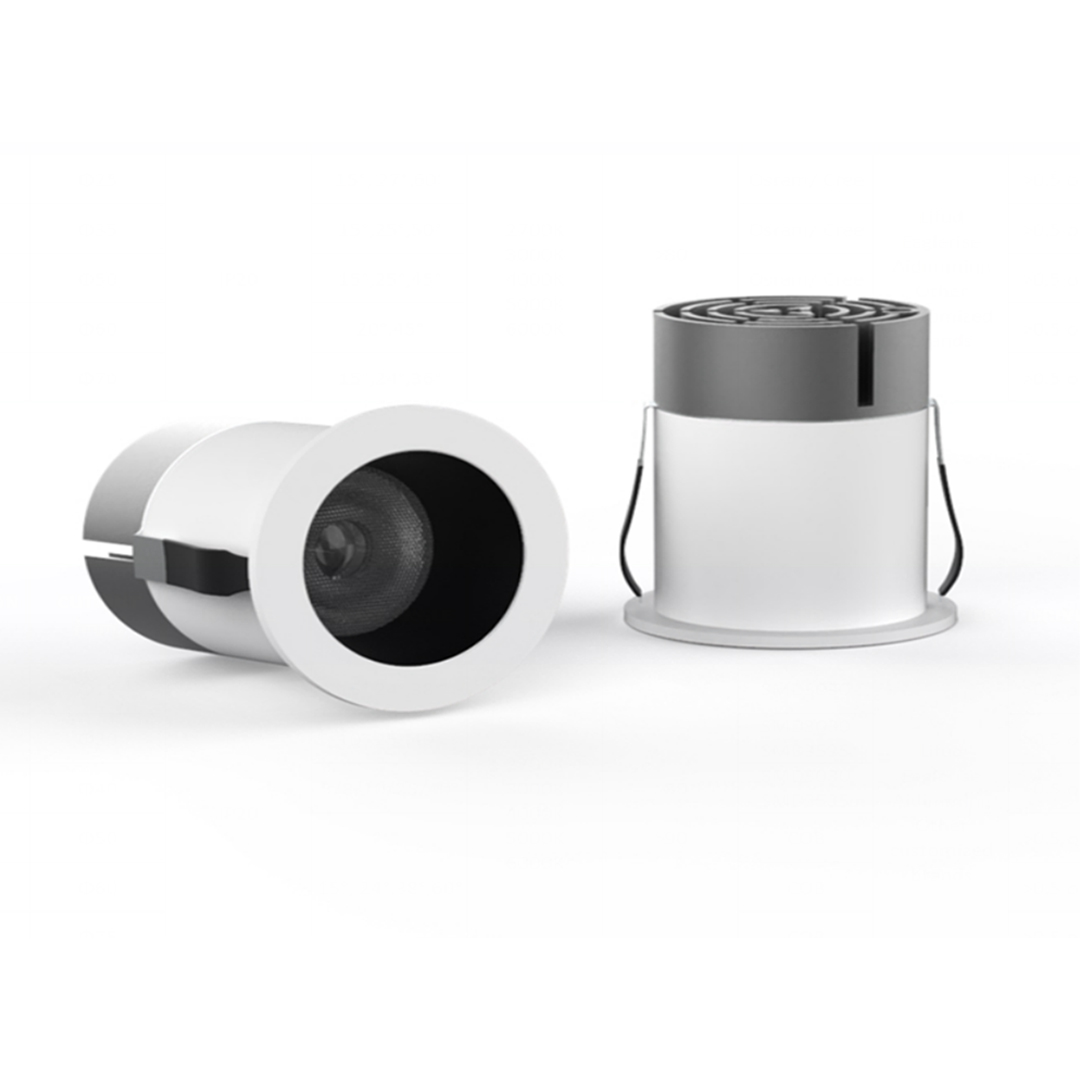

Terlo spotlight collection offers multiple options to choose from wattages ranging between 1W – 10W in all standard symmetric beam options and as made available across 6 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.
| IP Rate | IP20 |
| CRI | >80 , >90 |
| LED | SMD3030 , COB |
| LED Driver | Lifud Eaglerise Aidimming Other customized brands |
| Input Voltage | AC220V-240V 50-60Hz |
| CODE | POWER (w) | LUMEN OUTPUT (±5%, lm) | DIMENSION (mm) | CUT OUT (mm) | BEAM ANGLE | CCT | FINISH |
| AE-MN30017-1 | 1W | 70 | Φ22*41 | Φ18 | 15°,24°,38° | 2700K 3000K 4000K 5000K 6000K | |
| AE-MN30017-2 | 2W | 140 | Φ35*38 | Φ30 | 10°,25°,40° | White trim +Black reflector | |
| AE-MN30017-3 | 3W | 210 | Φ45*46 | Φ40 | 5°, 8°, 10°, 25°, 40° | ||
| AE-MN30017-5 | 5W | 350 | Φ55*61 | Φ50 | 15°, 24°, 38°, 60° | ||
| AE-MN30017-7 | 7W | 490 | Φ65*69 | Φ60 | |||
| AE-MN30017-10 | 10W | 700 | Φ80*79 | Φ75 |
| Wattage | 3, 1, 10, 2, 5, 7 |
|---|---|
| Color Temperature | 2700, 3000, 4000, 5000, 6000 |
| Beam Angle | 15, 24, 38, 10, 25, 40, 5, 60, 8 |
| LED | SMD3030, COB, SMD3030 SMD3535 |
| Product Code | AE-MN30017-1, AE-MN30017-2, AE-MN30017-3, AE-MN30017-5, AE-MN30017-7, AE-MN30017-10 |
