Tetra

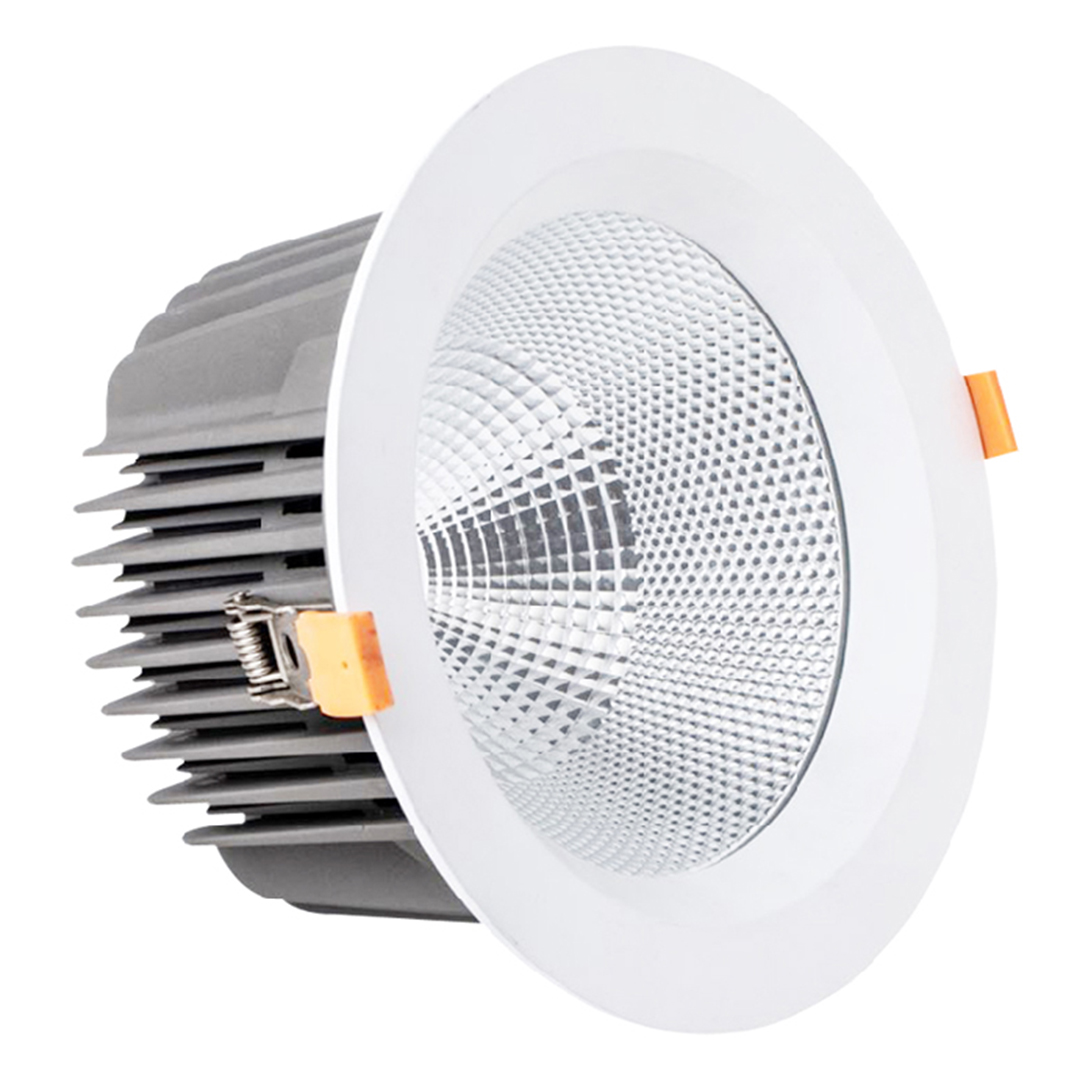

Tetra - Image 2

Tetra

$100.00

Tetra downlight collection offers multiple options to choose from wattages ranging between 10W – 60W in all standard symmetric beam options and as made available across 5 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle45°
CRI>80 >90
LEDCOB
LED DriverLifud Eaglerise Aidimming
Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishWhite / Black



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-RD05006-1010W850Φ96*60Φ75-8045°2700K
3000K
4000K
5000K
6000K		White / Black
AE-RD05006-1212W1020Φ115*70Φ95-100
AE-RD05006-1515W1275Φ115*70Φ95-100
AE-RD05006-2020W1700Φ140*115Φ115-125
AE-RD05006-2525W2125Φ165*90Φ145-150
AE-RD05006-3030W2550Φ165*90Φ145-150
AE-RD05006-3535W2975Φ195*100Φ165-180
AE-RD05006-4040W3400Φ195*100Φ165-180
AE-RD05006-4545W3825Φ230*100Φ195-220
AE-RD05006-5050W4250Φ230*100Φ195-220
AE-RD05006-6060W5100Φ230*100Φ195-220
Wattage

12, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

45
Product Code

AE-RD05006-10, AE-RD05006-12, AE-RD05006-15, AE-RD05006-20, AE-RD05006-25, AE-RD05006-30, AE-RD05006-35, AE-RD05006-40, AE-RD05006-45, AE-RD05006-50, AE-RD05006-60
