$100.00

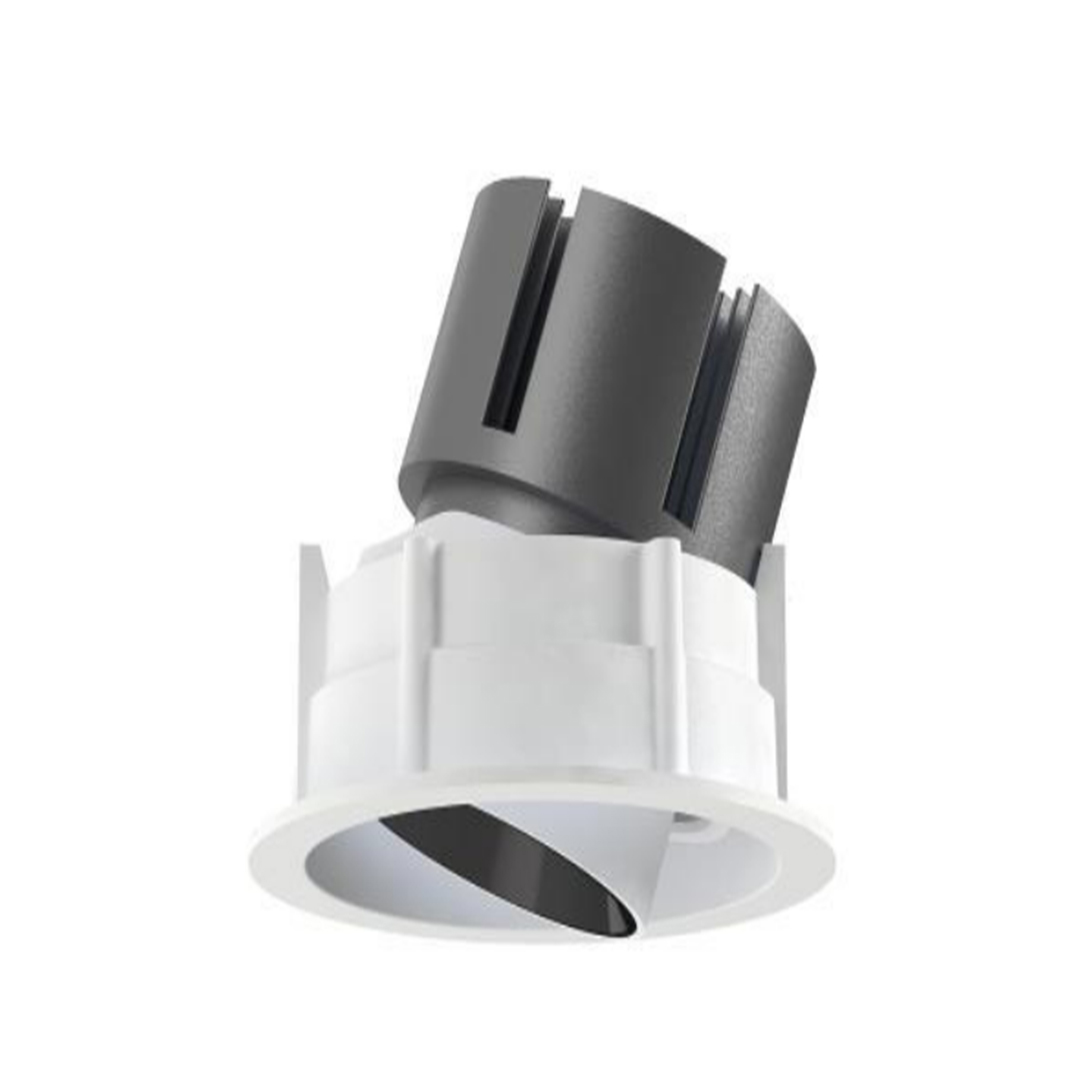

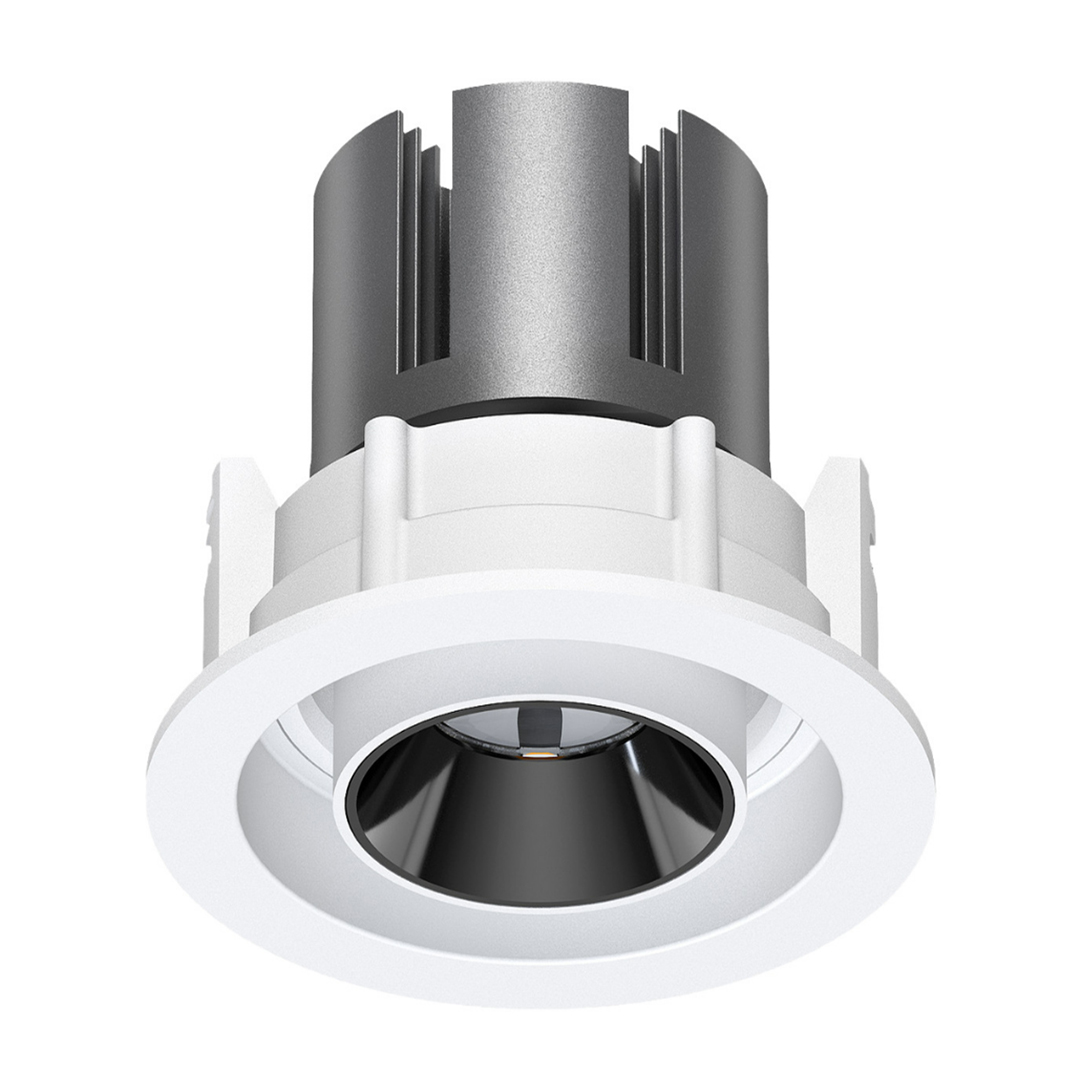

Tilox adjustable downlight collection offers multiple options to choose from wattages ranging between 7W – 30W in all standard symmetric beam options and as made available across 2 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.
| IP Rate | IP20 |
| Beam Angle | 15° , 24° , 36° |
| CRI | >80 , >90 |
| LED | COB |
| LED Driver | Lifud Eaglerise Aidimming Other customized brands |
| Input Voltage | AC220V-240V 50-60Hz |
| Finish | White/ Black |
| CODE | POWER (w) | LUMEN OUTPUT (±5%, lm) | DIMENSION (mm) | CUT OUT (mm) | BEAM ANGLE | CCT | FINISH |
|---|---|---|---|---|---|---|---|
| AE-RS03017-7 | 7 | 560 | Φ 81x60 | Φ 75 | 15° / 24° / 36° | 2700K 3000K 4000K 5000K 6000K | White/Black |
| AE-RS03017-12 | 12 | 960 | Φ 97x75 | Φ 90 | 15° / 24° / 36° | White/Black | |
| AE-RS03017-20 | 20 | 1600 | Φ 112x90 | Φ 105 | 15° / 24° / 36° | White/Black | |
| AE-RS03017-30 | 30 | 2400 | Φ 129x108 | Φ 120 | 15° / 24° / 36° | White/Black |
| Wattage | 12, 20, 30, 7 |
|---|---|
| Color Temperature | 2700, 3000, 4000, 5000, 6000 |
| Beam Angle | 15, 24, 36 |
| Product Code | AE-RS03017-7, AE-RS03017-12, AE-RS03017-20, AE-RS03017-30 |
