Products

Tolv

Tolv

$100.00

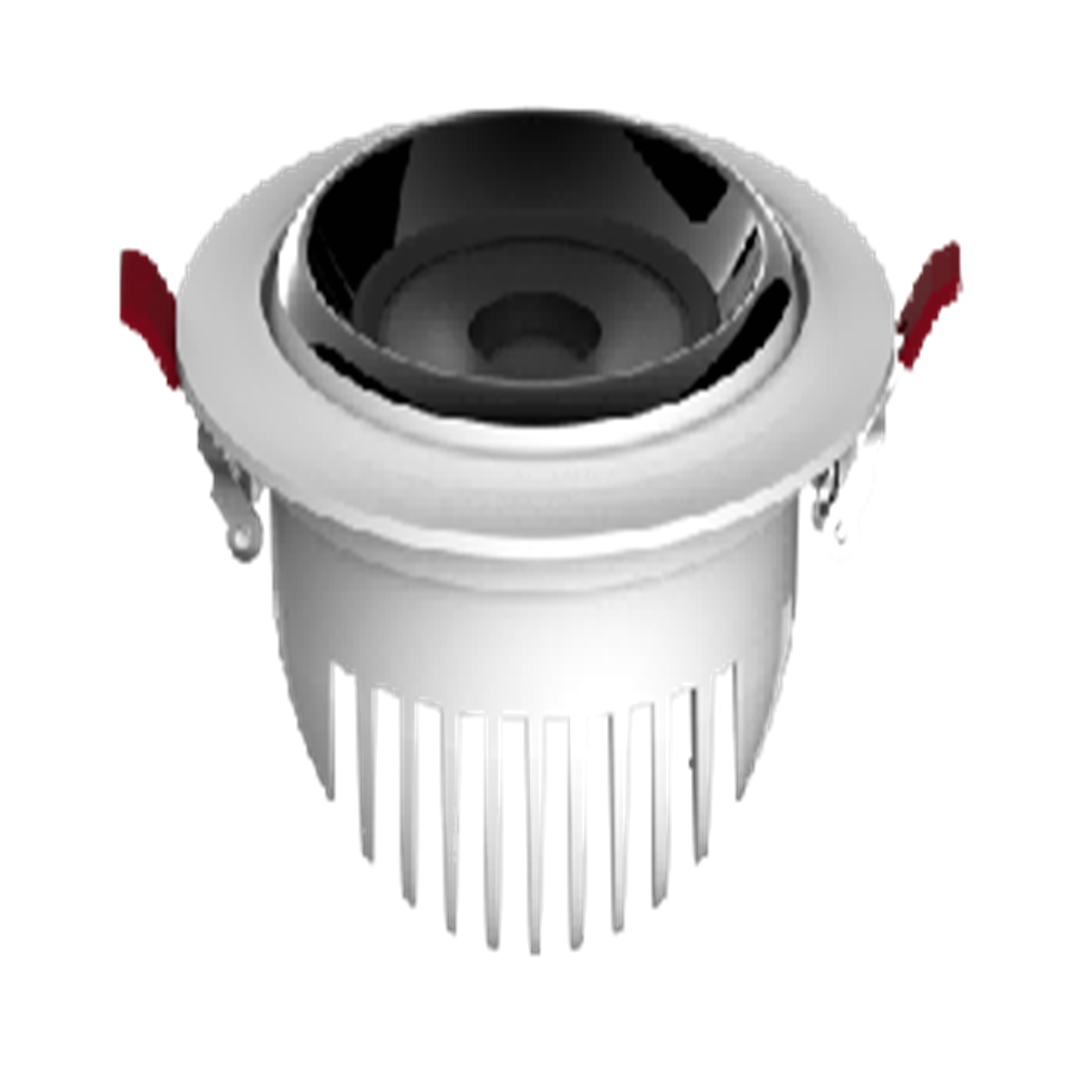

Tolv adjustable downlight collection offers multiple options to choose from wattages ranging between 7W – 25W in all standard symmetric beam options and as made available across 4 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle15°, 24°, 38°
CRI>80 , >90
LEDCOB
LED DriverLifud Eaglerise Aidimming Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishTrim: White/Black
ReflectorGlossy black , Glossy Silver



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-RS02035-77490Φ 90x63Φ 7515° / 24° / 38°2700K
3000K
4000K
5000K
6000K
Trim:White/Black/Reflector:Glossyblack,GlossySilver
AE-RS02035-1010700Φ 108x76Φ 9515° / 24° / 38°
Trim:White/Black/Reflector:Glossyblack,GlossySilver
AE-RS02035-20201400Φ 138x77Φ 12015° / 24° / 38°
Trim:White/Black/Reflector:Glossyblack,GlossySilver
AE-RS02035-25251750Φ 158x110Φ 14015° / 24° / 38°
Trim:White/Black/Reflector:Glossyblack,GlossySilver
Wattage

10, 20, 25, 7
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

15, 24, 38
Product Code

AE-RS02035-7, AE-RS02035-10, AE-RS02035-20, AE-RS02035-25
