Available Options
| CODE | POWER (w) | LUMEN OUTPUT (±5%, lm) | DIMENSION (mm) | CUT OUT (mm) | BEAM ANGLE | CCT | FINISH |
|---|---|---|---|---|---|---|---|
| AE-OTLW18006-12 | 12 | 960 | Φ 1000x30x50 | Φ / | 30° / 60° / 120° / 10x60° | 2700K 3000K 4000K 6000K | Silver/Black |

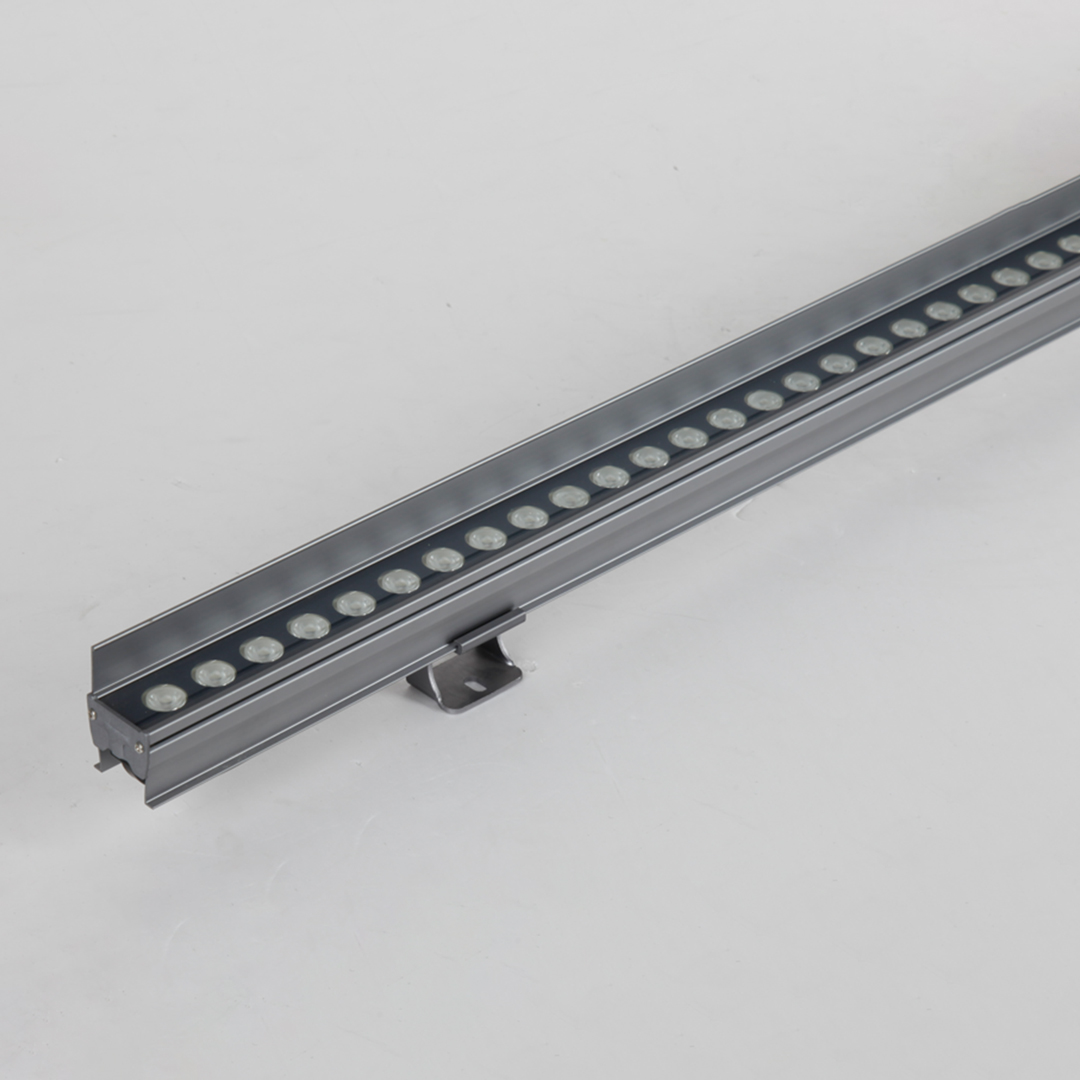

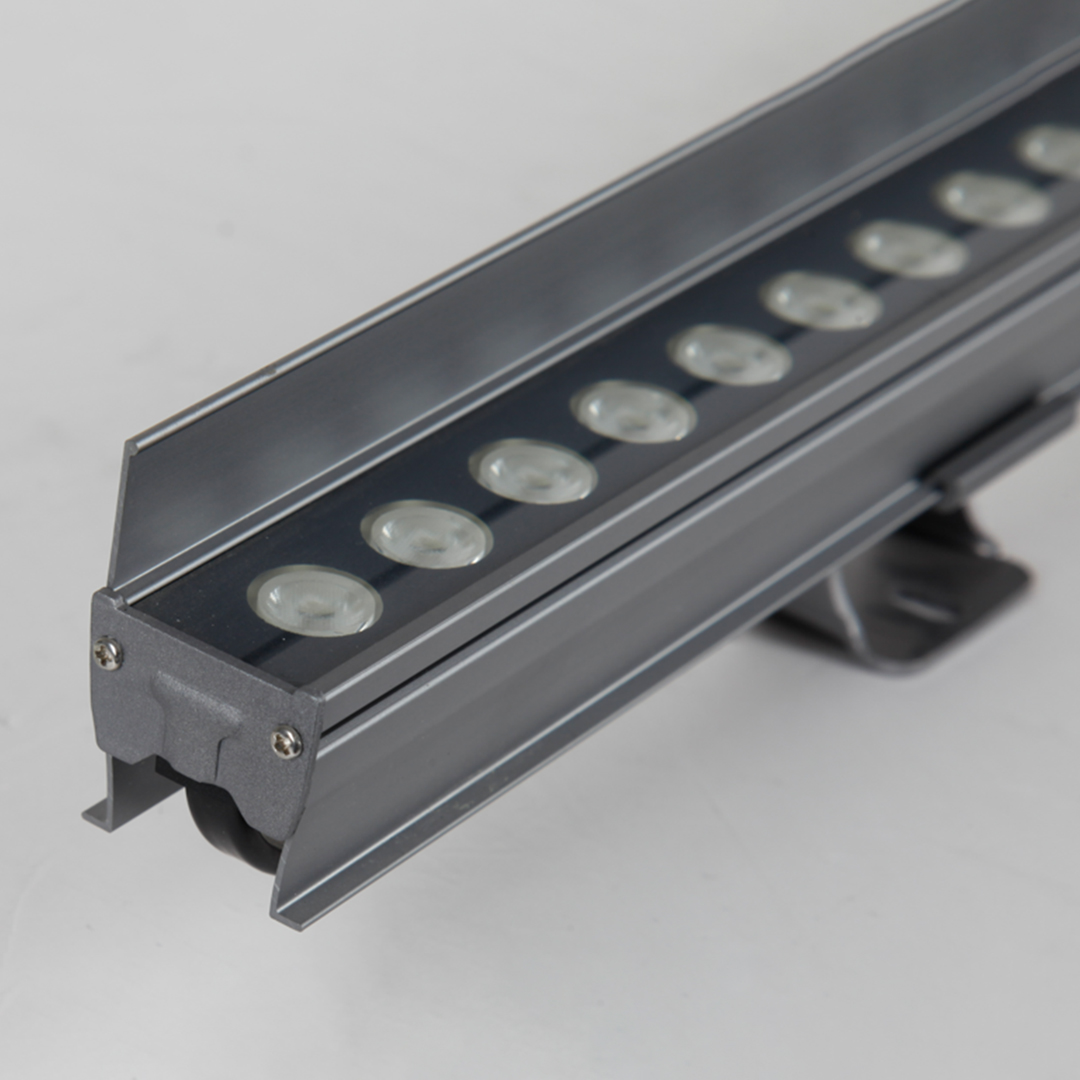

Waina
$100.00
Waina Wall Washer collection offer wattage ranging 12W in all standard symmetric beam options. Custom beam angles available upon request.Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.RGB /RGBW/RGBWW options are available on request.
Technical Data
| IP Rate | IP65 |
| Beam Angle | 30°, 60°, 120°, 10x60° |
| Material | Aluminum +tempered glass |
| CRI | >80 |
| LED | 48pcs |
| Driver | Not included |
| Voltage | DC24V |
| Finish | Silver, Black |
Certifications
| Wattage | 12 |
|---|---|
| Color Temperature | 2700, 3000, 4000, 6000 |
| Beam Angle | 10×60, 120, 30, 60 |
| Product Code | AE-OTLW18006-12 |
