$100.00

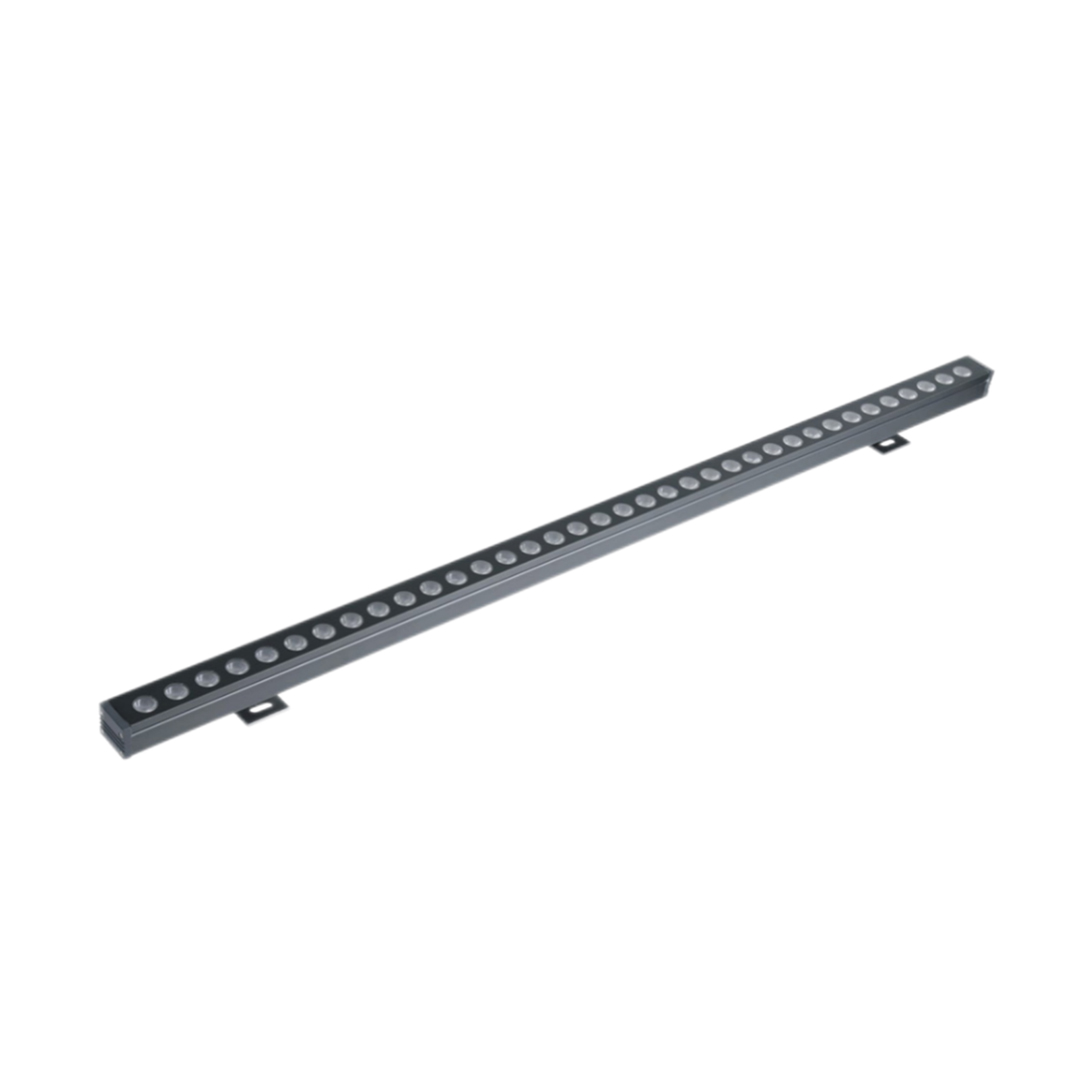

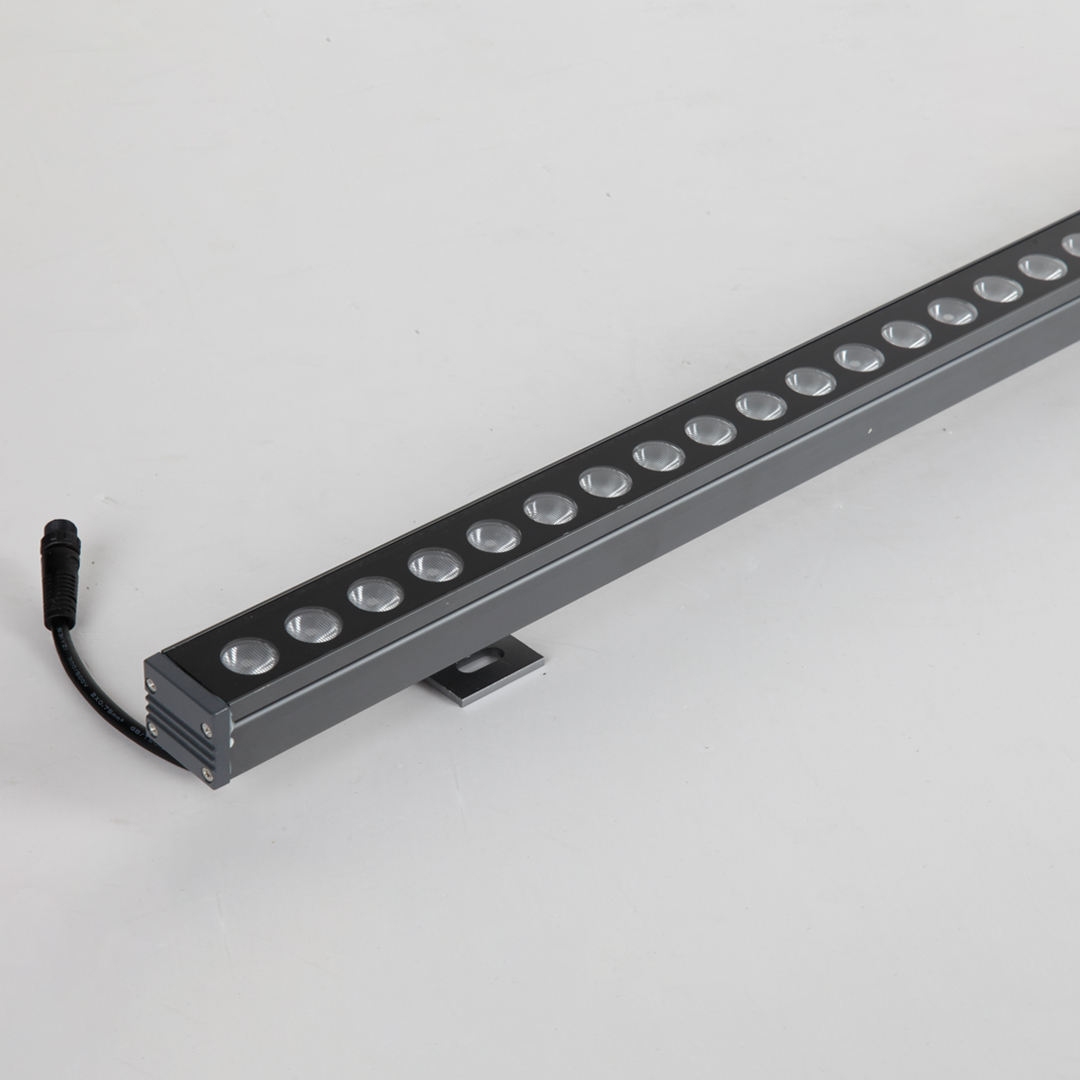

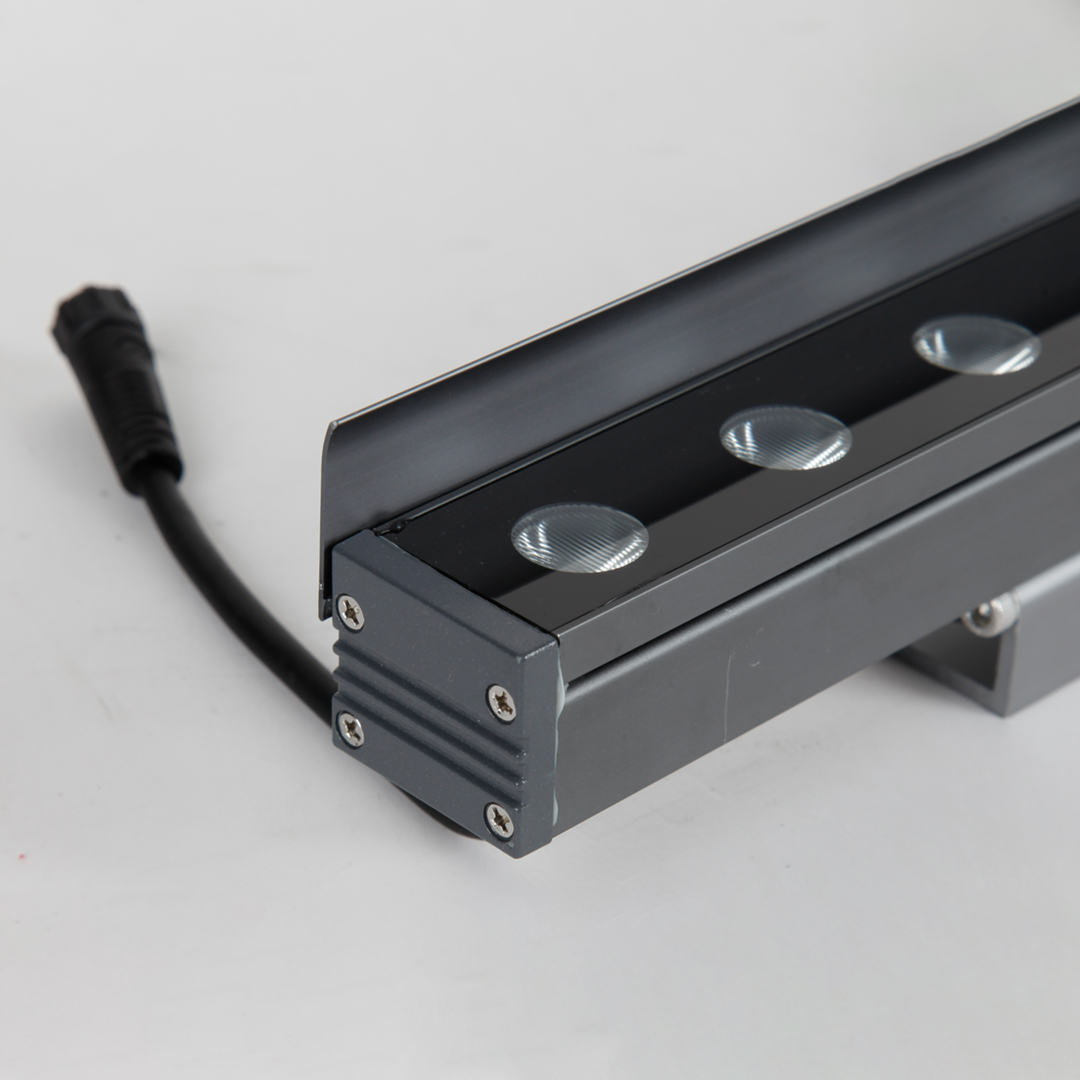

Wand Wall Washer collection offers multiple options to choose from wattages ranging between 18W – 36W in all standard symmetric beam options. Custom beam angles available upon request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request. RGB /RGBW/RGBWW options are available on request.
| IP Rate | IP65 |
| Beam Angle | 5°, 10°, 15°, 30°, 45°, 60°, 10x60°, 20x45° |
| Material | Aluminum +tempered glass |
| CRI | >80 |
| LED | 18pcs, 24pcs, 36pcs |
| Driver | Not included |
| Voltage | DC24V |
| Finish | Silver, Black |
| CODE | POWER (w) | LUMEN OUTPUT (±5%, lm) | DIMENSION (mm) | CUT OUT (mm) | BEAM ANGLE | CCT | FINISH |
|---|---|---|---|---|---|---|---|
| AE-OTLW18001-18 | 18 | 1440 | Φ 1000x36x33 | Φ / | 5° / 10° / 15° / 30° / 45° / 60° / 10x60° / 20x45° | 2700K 3000K 4000K 6000K | Silver/Black |
| AE-OTLW18001-24 | 24 | 1920 | Φ 1000x36x33 | Φ / | 5° / 10° / 15° / 30° / 45° / 60° / 10x60° / 20x45° | Silver/Black | |
| AE-OTLW18001-36 | 36 | 2880 | Φ 1000x36x33 | Φ / | 5° / 10° / 15° / 30° / 45° / 60° / 10x60° / 20x45° | Silver/Black |
| Wattage | 18, 24, 36 |
|---|---|
| Color Temperature | 2700, 3000, 4000, 6000 |
| Beam Angle | 15, 10, 10×60, 20×45, 30, 45, 5, 60 |
| Product Code | AE-OTLW18001-18, AE-OTLW18001-24, AE-OTLW18001-36 |
