Zyni

Zyni

$100.00

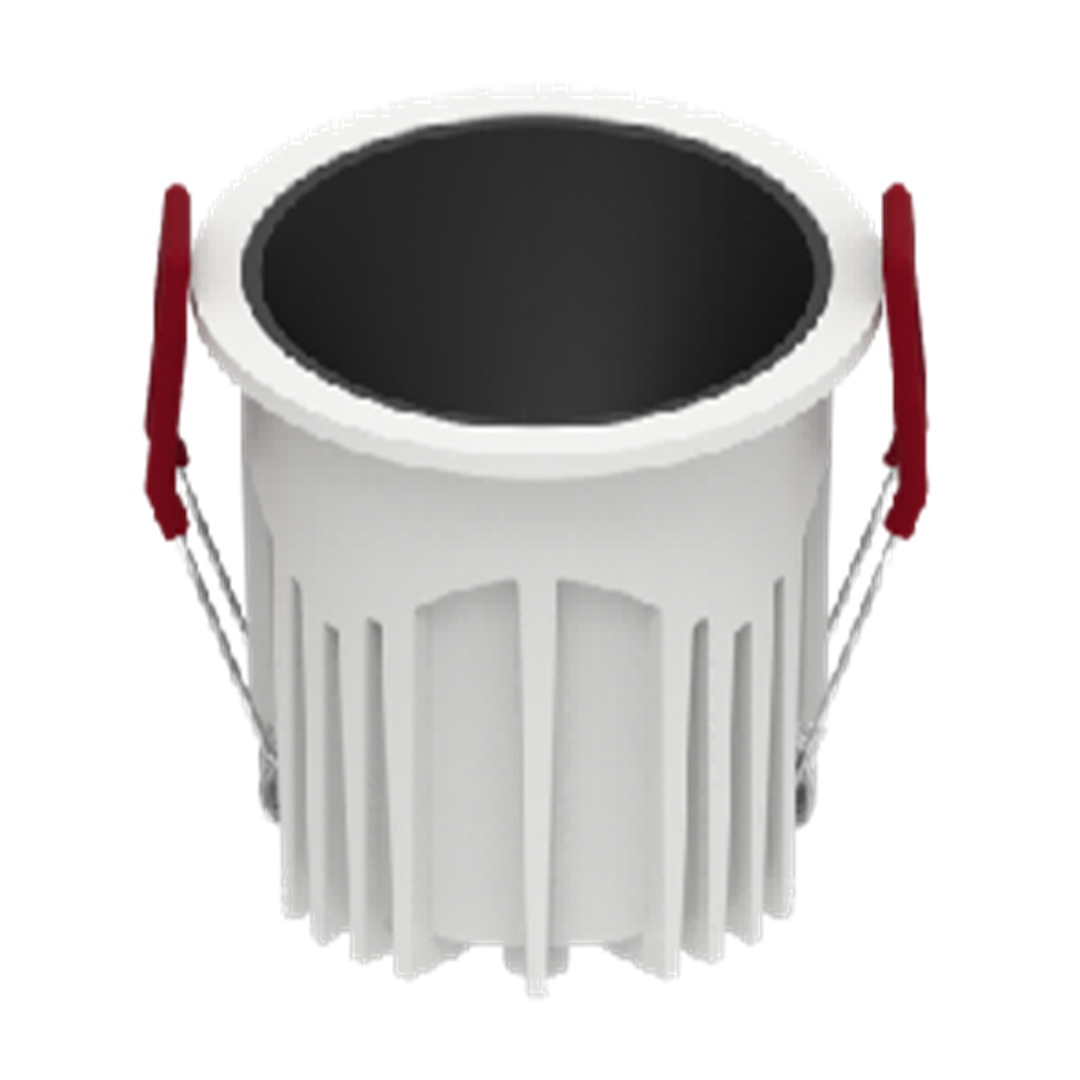

Zyni downlight collection offers multiple options to choose from wattages ranging between 5W – 18W in all standard symmetric beam options and as made available across 3 varied size options to adopt to site requirements within the standard color spectrum. CCT of 5000K and 6000K are also available on request. Standard protocol for fixed output driver is offered in our article coding. Dimmable driver options are available on request.



Technical Data

IP RateIP20
Beam Angle10°, 23°, 36°
CRI>80 , >90
LEDCOB
LED DriverLifud Eaglerise Aidimming Other customized brands
Input VoltageAC220V-240V 50-60Hz
FinishTrim: White/Black
ReflectorMatt black , Matt White



Certifications



SKU: N/A Category:

Available Options

CODEPOWER
(w)		LUMEN OUTPUT
(±5%, lm)		DIMENSION
(mm)		CUT OUT
(mm)		BEAM ANGLECCTFINISH
AE-RS02038-55400Φ 65x53Φ 5510° / 23° / 36°2700K
3000K
4000K
5000K
6000K
Trim:White/Black/Reflector:Mattblack,MattWhite
AE-RS02038-77560Φ 85x62Φ 7510° / 23° / 36°
Trim:White/Black/Reflector:Mattblack,MattWhite
AE-RS02038-1212960Φ 85x62Φ 7510° / 23° / 36°
Trim:White/Black/Reflector:Mattblack,MattWhite
AE-RS02038-15151200Φ 105x77Φ 9510° / 23° / 36°
Trim:White/Black/Reflector:Mattblack,MattWhite
AE-RS02038-18181440Φ 105x77Φ 9510° / 23° / 36°
Trim:White/Black/Reflector:Mattblack,MattWhite
Wattage

12, 18, 15, 5, 7
Color Temperature

2700, 3000, 4000, 5000, 6000
Beam Angle

10, 23, 36
Product Code

AE-RS02038-5, AE-RS02038-7, AE-RS02038-12, AE-RS02038-15, AE-RS02038-18
